6–6 Chapter 6: Board Test System
Using the Board Test System
Cyclone V SoC Development Kit May 2013 Altera Corporation
User Guide
The I2C Tab
The I2C tab allows you to read and write 1 kilobit (Kb) to an I
2
C EEPROM located at
U28 on the development board. Figure 6–3 shows the I2C tab.
The following sections describe the controls on the I2C tab.
EEPROM
The serial I
2
C EEPROM is 32 Kilobits.
■ Start Address—0x0
■ Range—0x1000
■ Read—Reads data from the I
2
C EEPROM.
f For more information on the EEPROM, refer to the Cyclone V SoC Development Board
Reference Manual.
RTC
Real time clock.

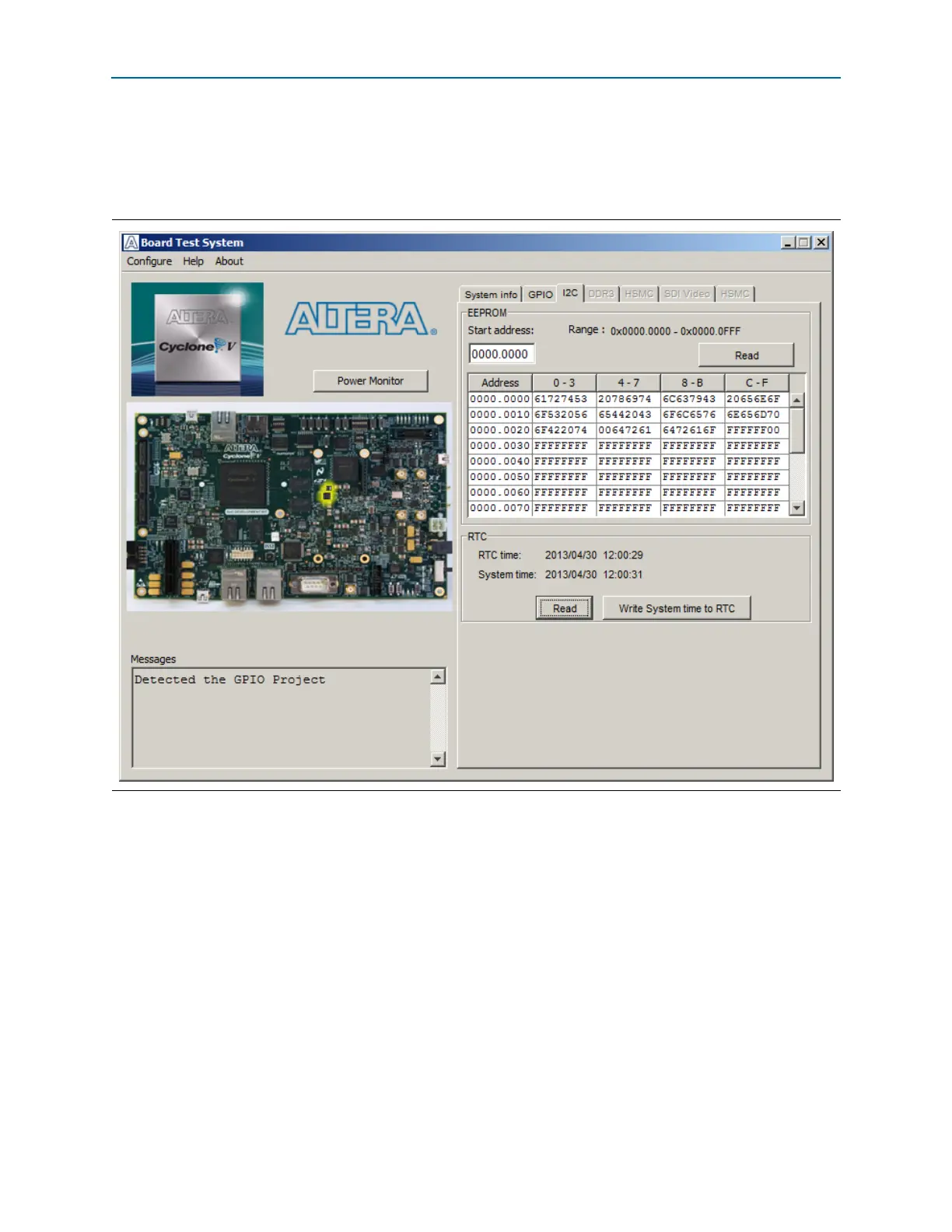

Figure 6–3. The I2C Tab
