Chapter 6: Board Test System 6–7
Using the Board Test System
May 2013 Altera Corporation Cyclone V SoC Development Kit
User Guide
■ Current Time—Displays current time stored in RTC memory when you click
Read. It is not updated automatically.
■ System Time—Displays current time from PC and is updated automatically.
■ Read—Reads the time from the RTC device on the board.
■ Write System Time to RTC—Writes the time to the RTC device on the board.
The DDR3 Tab
The DDR3 tab allows you to read and write the DDR3 memory on your board.
Figure 6–4 shows the DDR3 tab.
The following sections describe the controls on the DDR3 tab.
Start
The Start control initiates DDR3 memory transaction performance analysis.

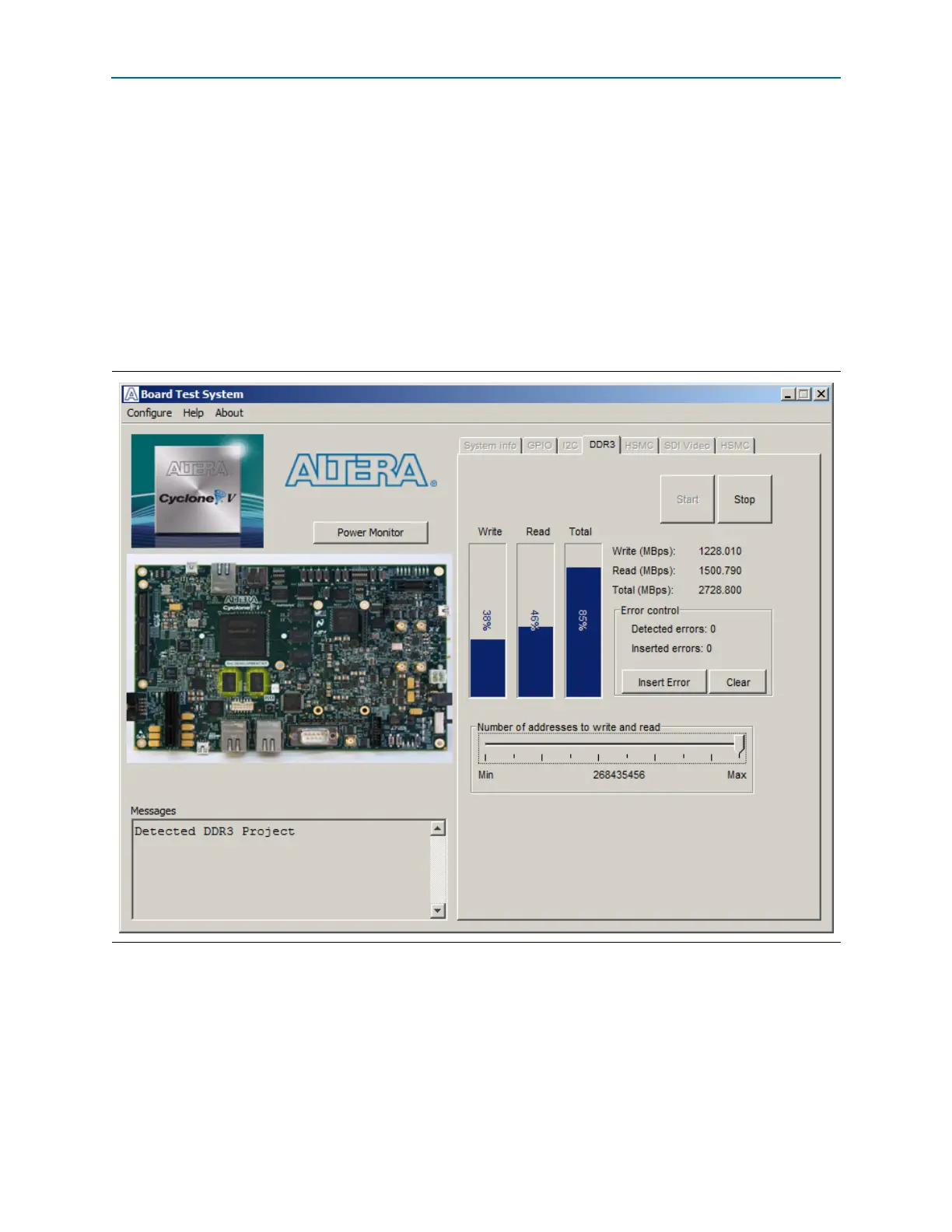

Figure 6–4. The DDR3 Tab
