Alto-Shaam AR-7T

COMPONENTS
Sel f -Cl e aning Ro ti s ser i e O v e n ▪ Ser v i ce M anual ▪ MN- 392 4 3 ▪ Rev 1 ▪ 2/19
23
COMPONENTS

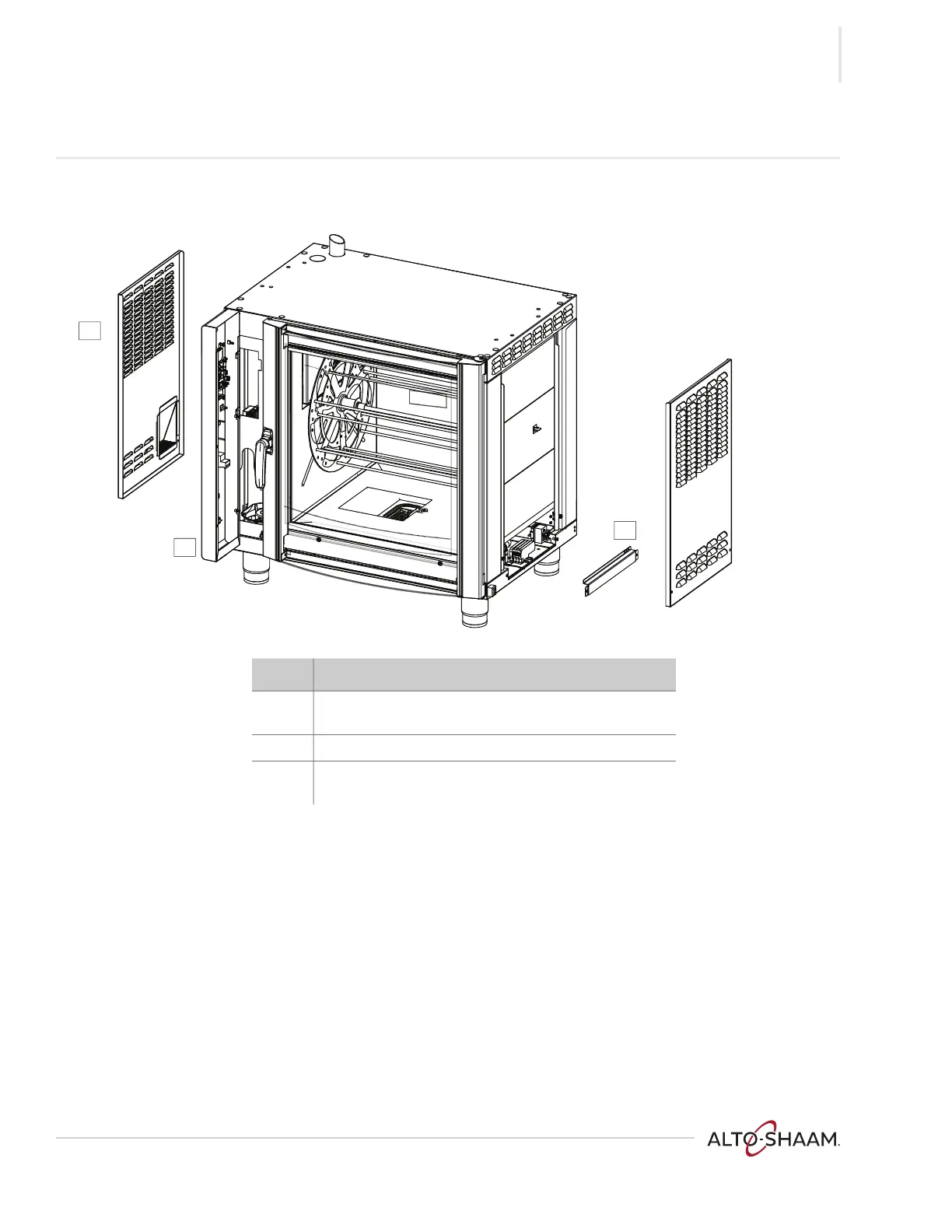

Exterior panels
AR-PHD-005886
1
2
3
Ref. Description
1 Left service panel, electrical chassis, heating
elements, pumps, motors, N7 HI limit, cooling fans.
2 Control panel, interface board (IB), LCD display.
3 Right service panel, N6 cavity temperature sensor,
water heater, N8 Thermistor, N9 HI limit.
