Alto-Shaam AR-7T

COMPONENTS
Self -Cle ani n g Ro tis se rie Ove n ▪ Ser v i ce M anual ▪ MN- 392 4 3 ▪ Rev 1 ▪ 2/ 19
32

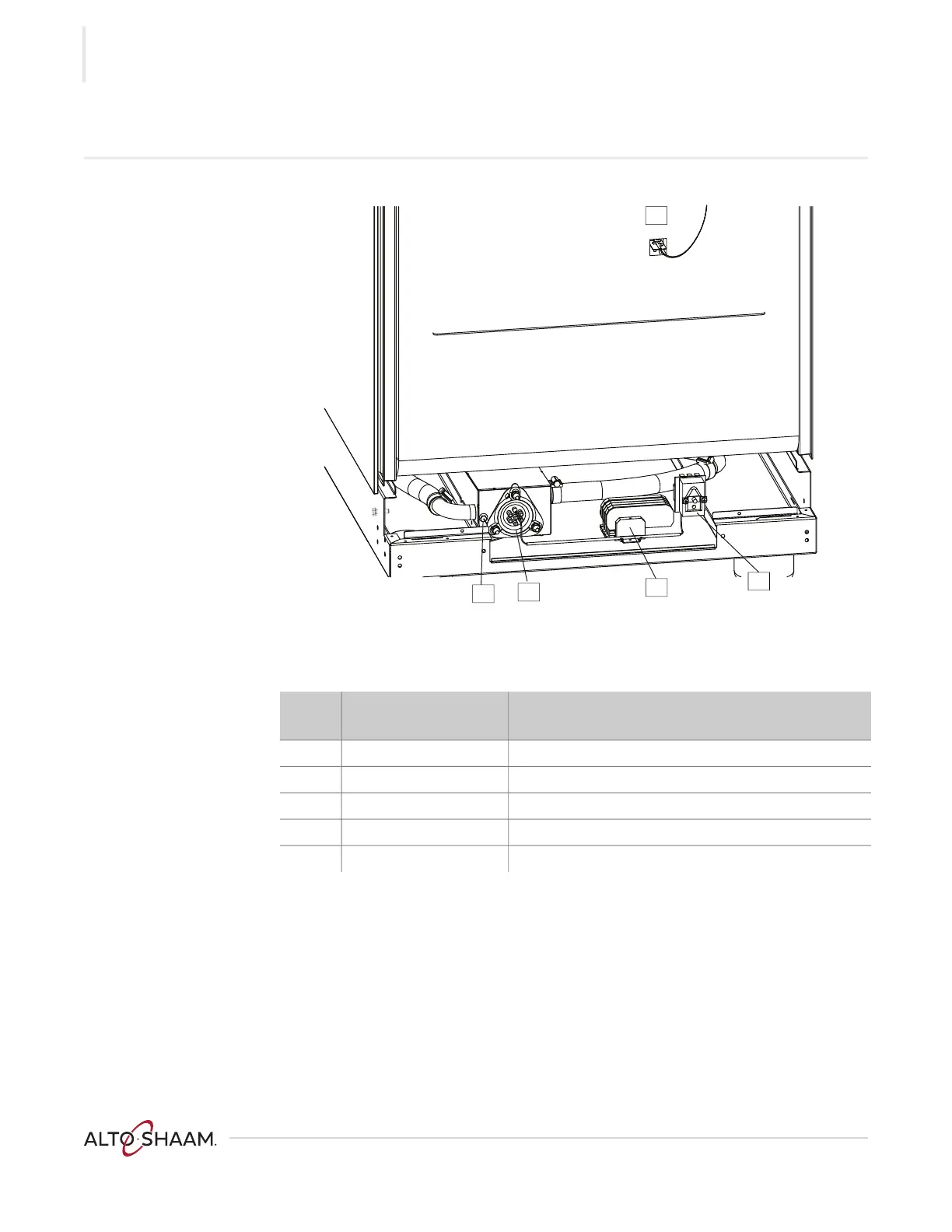

Right Service Panel
Ref.
Electrical Schematic
Identifier
Description
1 N6 100 Ohm RTD cavity temperature sensor
2 N9 Water heater HI limit
3 - Terminal blocks
4 R4
Water heater elements
5 N8 J-Type thermistor
AR-PHD-006058
1
2
3
4
5
