Electrical Chassis Components

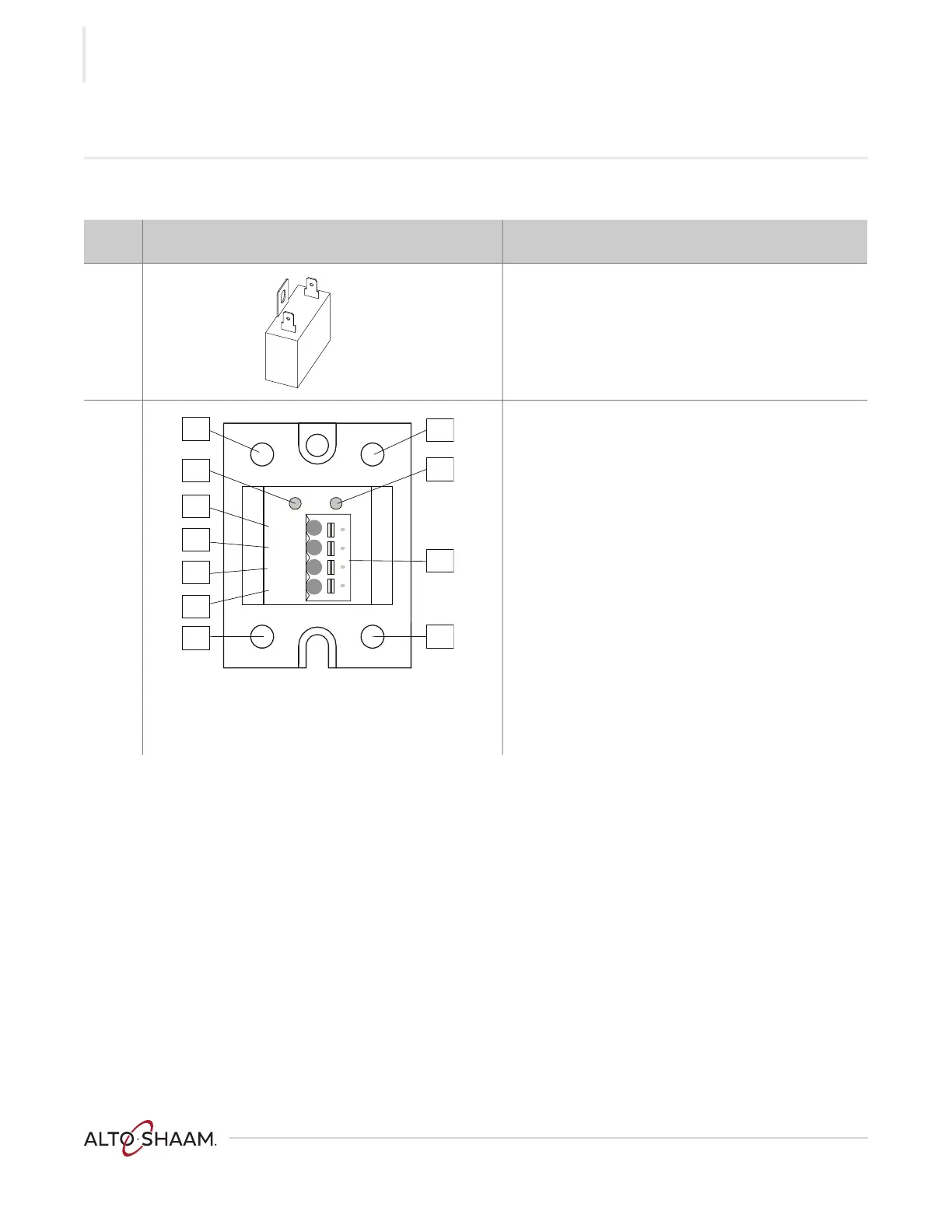

Refer to graphic: AR-PHD-006211
Ref Component Description
1
C1 Capacitor
2
K41, K42, SSR Solid State Relay
Dual circuit
1 L1 Terminal 1/L1 – circuit A
2 L2 Terminal 3/L2 – circuit B
3 - Circuit B call for heat indicator
4 - Push to insert / release a wire
5 T2 Terminal 4/T2 – circuit B
6 T1 Terminal 2/T1 – circuit A
7 B2 (-) Circuit B DC – from control board
8 B1 (+) Circuit B DC + from control
board
9 A2 (-) Circuit A DC – from control board
10 A1 (+) Circuit A DC + from control board
11 - Circuit A call for heat indicator
AR-PHD-005926
4/T2
B2(-)
B1(+)
A2(-)
A1(+)
3/L21/L1
2/T1
1
AR-PHD-005929
2
4
11
10
9
8
7
6
5
3
