Alto-Shaam AR-7T

COMPONENTS
Self -Cle ani n g Ro tis se rie Ove n ▪ Ser v i ce M anual ▪ MN- 392 4 3 ▪ Rev 1 ▪ 2/ 19
24

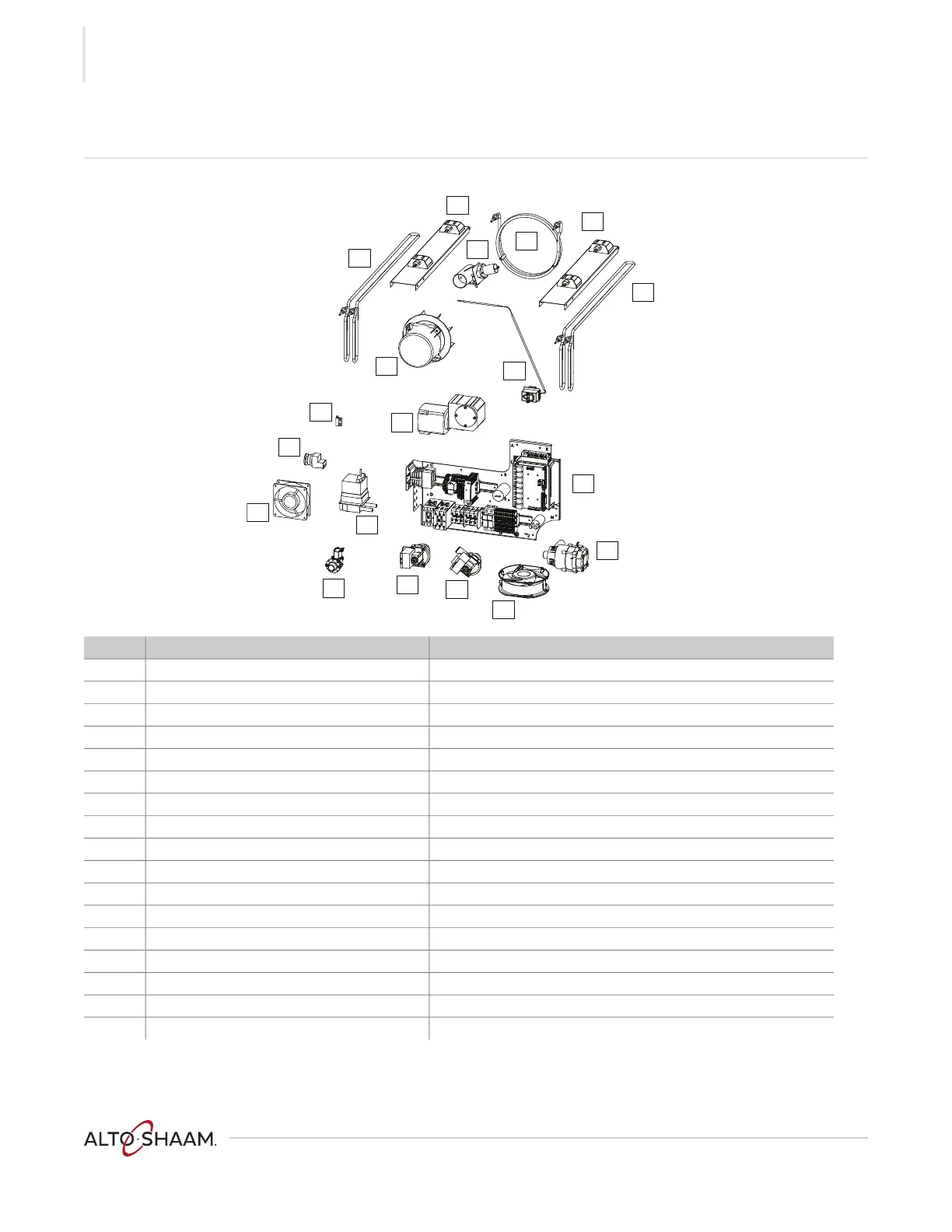

Left Service Panel
Ref. Electrical Schematic Identifier Description
1 LP1, LP2, LP3, LP4 Lights
2 Browning valve Browning valve
3 R3 Convection heating element
4 R1, R2 Browning heating elements
5 N7 HI-limit switch
6 - Electrical chassis
7 Y4 Wash pump
8 Cooling fan 1 Cooling fan
9 Y7 Grease pump
10 Y5 Drain pump
11 Y8 Liquid cleaner pump
12 Y3 Water solenoid
13 Cooling fan 2 Cooling fan
14 Jog button 2 Spit Jog button, pass through door
15 Door SW 2 Door switch, pass through door
16 M2 Spit motor
17 M1 Convection motor
AR-PHD-005889
1
2
3
1
4
5
6
7
8
9
10
12
13
11
14
15
16
17
4
