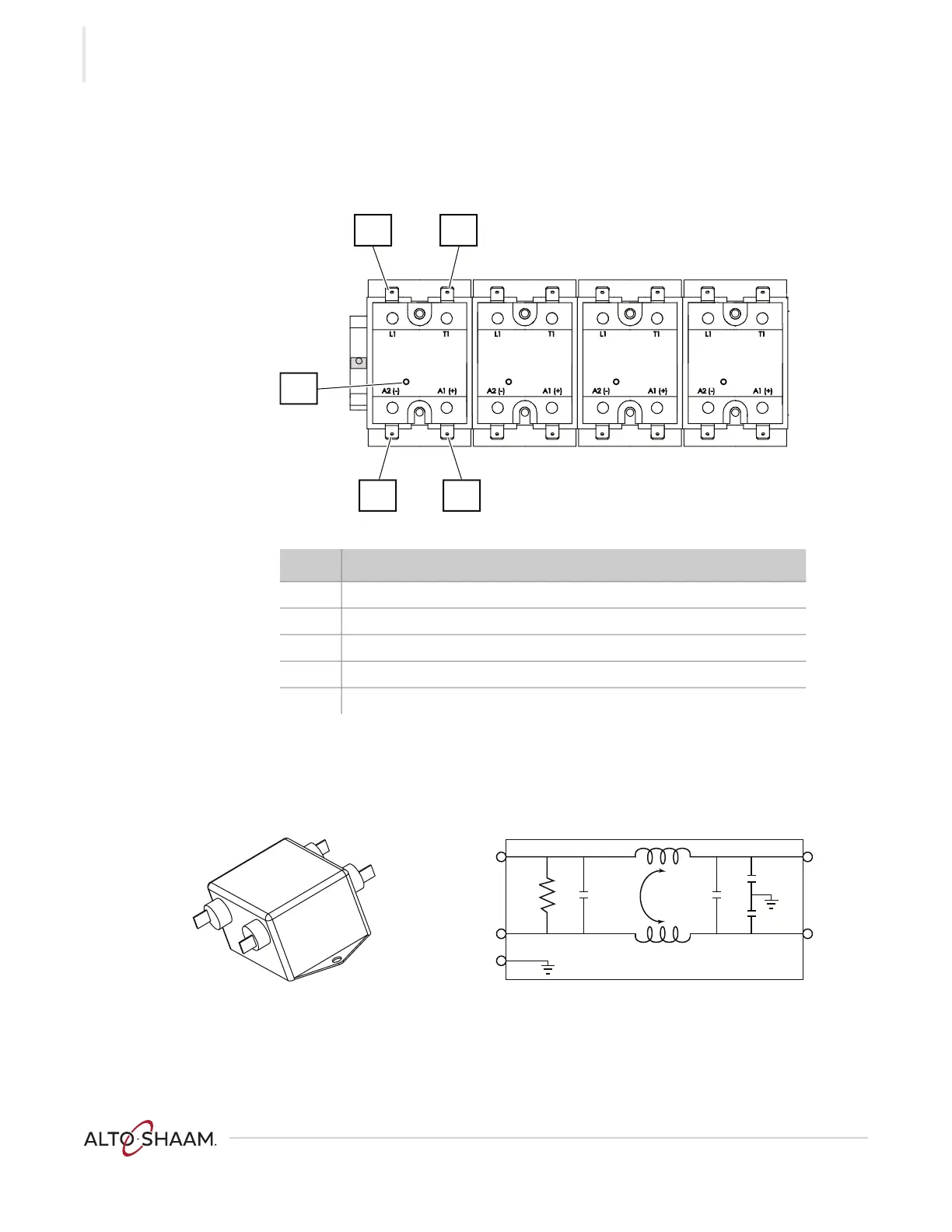

Solid State Relay (SSR)
Heater element control. One SSR for each chamber.
Line Filter (CE only)
Ref. Description
1 L1 terminal, AC line voltage into the SSR
2 T1 terminal, AC load voltage to the heating element
3 Call for heat indicator light
4 A2 (-) terminal, DC control voltage from the control board to the SSR
5 A2 (+) terminal, DC control voltage from the control board to the SSR
1 234
VMC-PHD-001923
1 2
4
5
3
VMC-PHD-008472
L
L
L’
NN’
L
I
N
E
L
O
A
D
G
C1
R
C2
Cy
Cy
