Ve ct or™ H Se ries ▪ S ervice Ma nual ▪ MN -4 6 54 3 ▪ R ev 01 ▪ 11/ 19
31

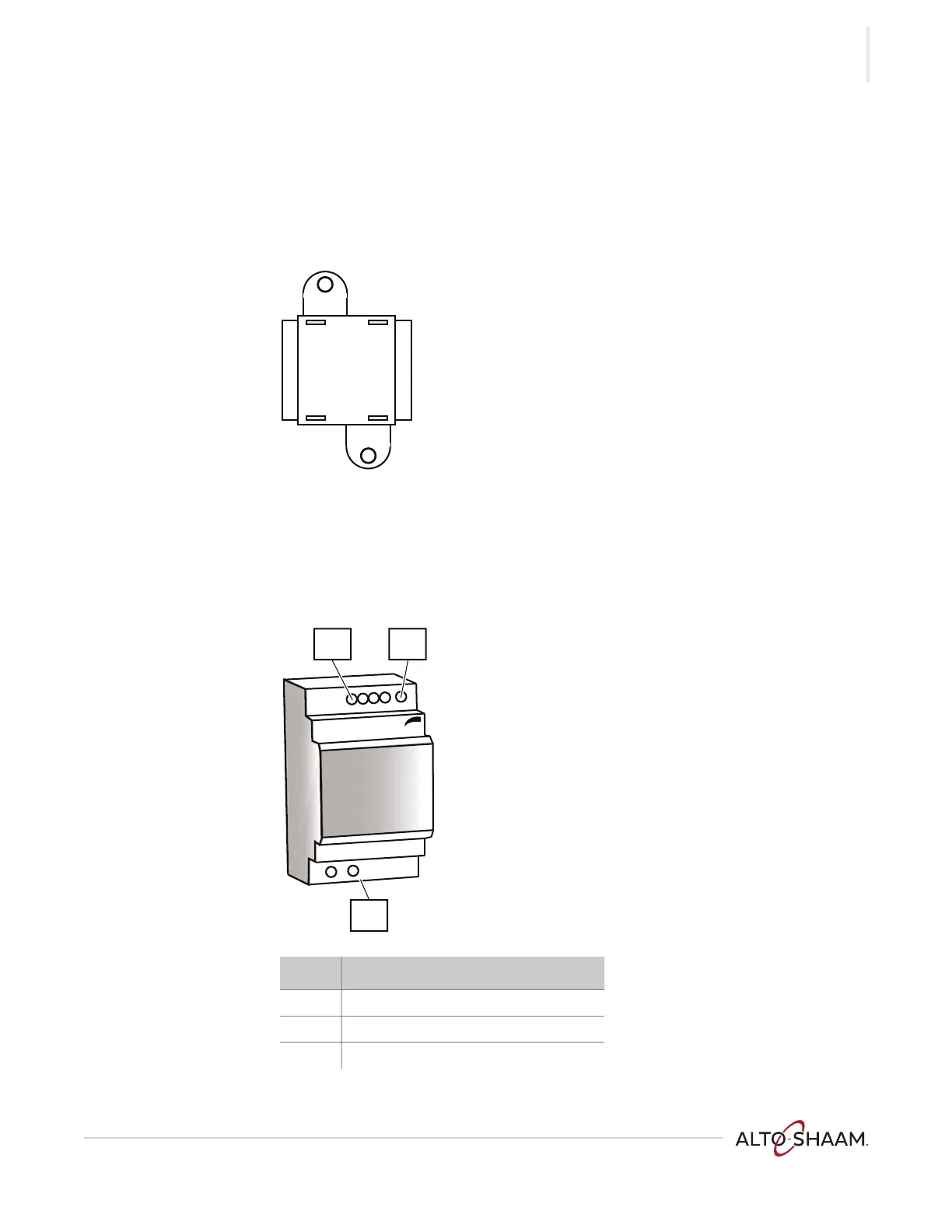

12VAC Transformer
The transformer provides a voltage signal to the control board. The signal allows
the control board to determine the incoming line voltage.
▪ Primary: 1700 Ohms
▪ Secondary: 6 Ohms
12VDC Power Supply
Supplies DC voltage to the control board and the ON/OFF switch.
VMC-PHD-001927
VV
240 VAC
Ref. Description
1 12VDC terminals
2 12VDC adjustment
3 240VAC terminals
VMC-PHD-001935
-V -V +V +V
Vo Adj
1 2
3
