Alto SCRUBTEC R 361 User Manual

9097421000(1)2008-01 A SCRUBTEC R 361 - R 366 - R 371 - R 371 C 7
USER MANUAL
ENGLISH

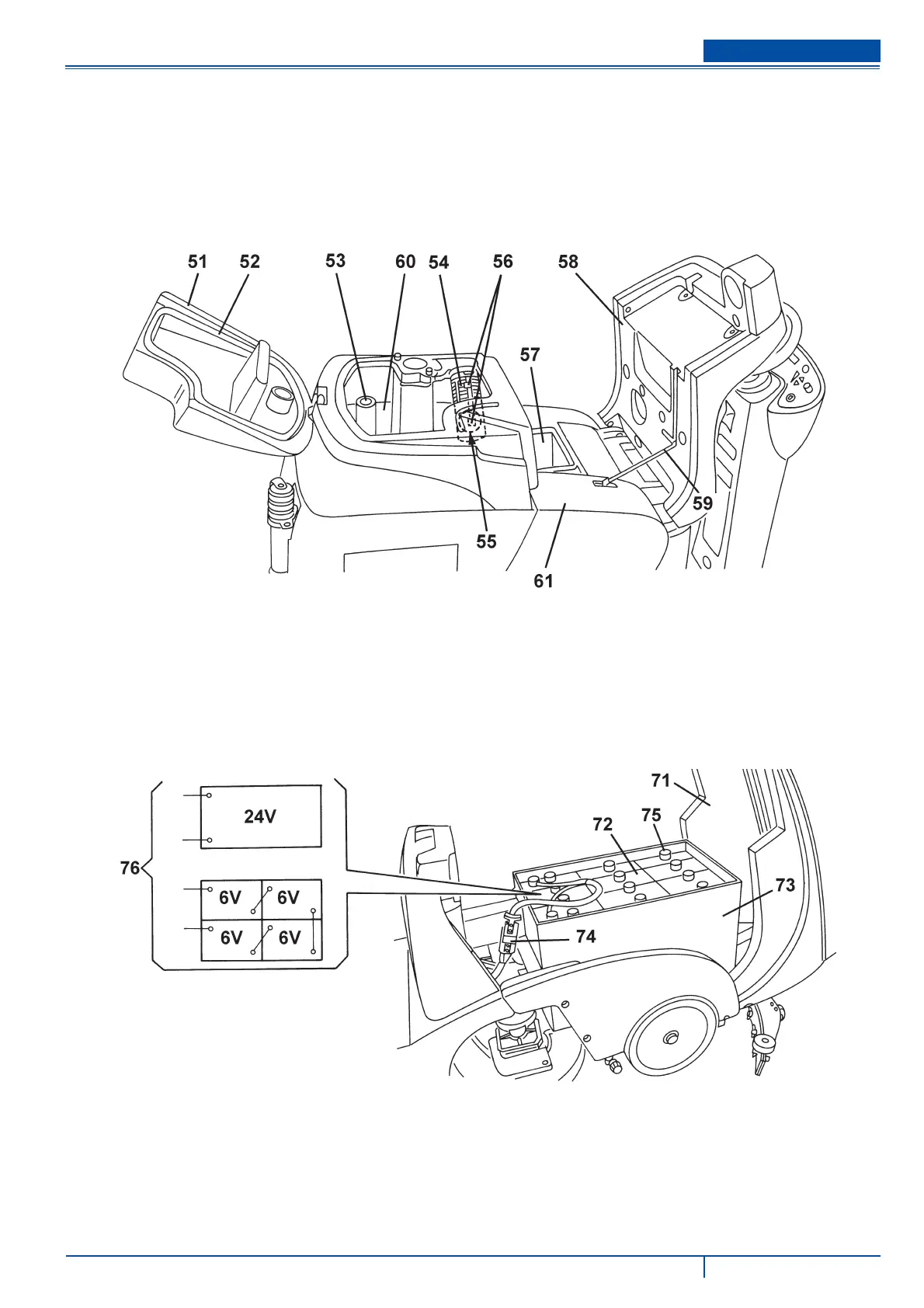

VIEW UNDER THE TANK COVERS
Recovery water tank cover
Recovery water tank cover gasket
Recovery water vacuum duct
Vacuum grid with automatic shut-off float
Float
Grid fasteners
Solution inlet opening
Solution tank cover / driver's seat
51.
52.
53.
54.
55.
56.
57.
58.
Cover support rod
Recovery water tank
Solution tank
59.
60.
61.
S311219A
VIEW UNDER TANK ASSEMBLY
Tank assembly
Batteries
Battery case
Battery connector
71.
72.
73.
74.
Battery caps
Battery connection diagrams
75.
76.
S311220A

Alto SCRUBTEC R 361 Specifications

General

Brand	Alto
Model	SCRUBTEC R 361
Category	Scrubber
Language	English
