24 SCRUBTEC R 361 - R 366 - R 371 - R 371 C 9097421000(1)2008-01 A
ENGLISH USER MANUAL
FUSE CHECK/REPLACEMENT
Turn the ignition key (41) to “0”.

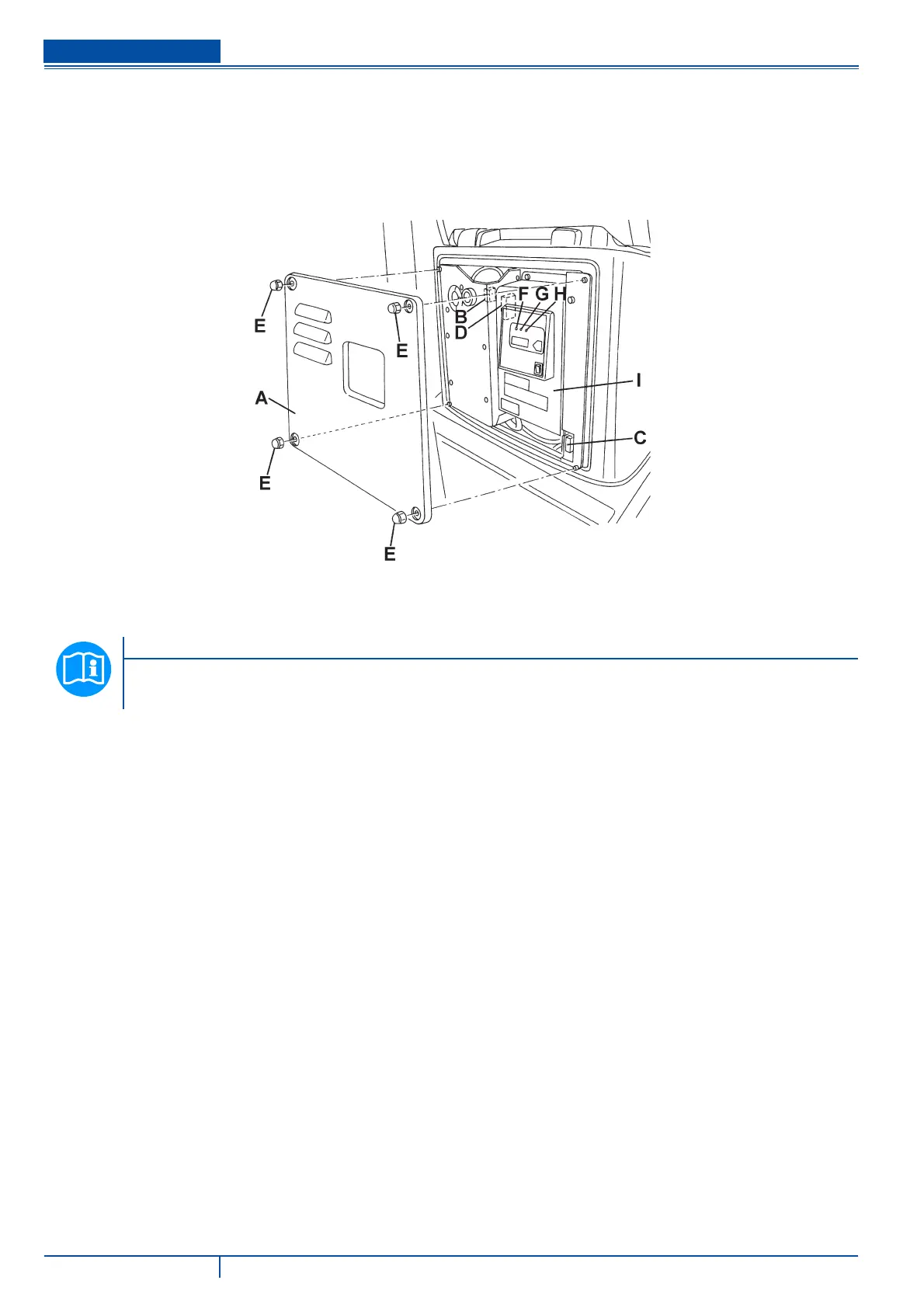

Remove the nuts (E, Fig. 7), then remove the cover (A).
Check/replace the following fuses:
Low power circuit fuse (F3): (5 A)
Drive system electronic board fuse (F2): (60 A)
Function electronic board fuse (F1): (100 A)
Install the cover and tighten the nuts.
Figure 7
S311214A
BRUSH/PAD-HOLDER DECK OR CYLINDRICAL BRUSH DECK DISASSEMBLY/ASSEMBLY
NOTE
The machine can be equipped with either the brush/pad-holder deck (81) or the cylindrical brush deck (96), according
to the following procedure.
To assemble/disassemble the deck it is not necessary to remove the brushes/pad-holders.
Disassembly
Drive the machine on a level floor.
Lower the deck (4 or 5) by pressing the switch (34).
Turn the ignition key (41) to “0”.
(For brush/pad-holder deck) Disconnect the connector (83).
(For cylindrical brush deck) Disconnect the connectors (83) and (91).
Disconnect the solution hose (84).
Remove the two cotter pins (86) and the deck left side lever mounting cotter pin.
Unscrew the knob (85) and remove the brush/pad-holder deck (81), or the cylindrical brush deck (93).
Assembly
Assemble in the reverse order of disassembly.
1.
2.
3.
B)
C)
D)
4.
1.
2.
3.
4.
5.
6.
7.
8.
