9097421000(1)2008-01 A SCRUBTEC R 361 - R 366 - R 371 - R 371 C 21
USER MANUAL
ENGLISH
SIDE SKIRT CHECK AND REPLACEMENT
Check
Drive the machine on a level floor.
Turn the ignition key (41) to “0”.
On both sides of the machine, unscrew the knobs (B, Fig. 5) and remove the side skirt assembly (C).
Wash and clean the side skirts.
Check that the side skirt lower edge (D):
lays down on the same level, along all its length;
is integral and free from cuts and lacerations;
has the inner corner (E) that is not worn;
Otherwise overturn or replace the skirts according to the following procedure.
Overturning or replacement
Remove the wing nuts (F) and the retaining strip (G).
Remove the skirt blade (H) and, if possible, overturn the blade to replace the lower inner corner (E) with an integral one. If the
other three corners are worn too, replace the blade.
Assembly and height adjustment
Assemble the blades (H) and skirt assembly (C) in the reverse order of disassembly.
Start the machine and lower the deck (D), then check that the side skirt blades (H):
slightly touch the floor;
the side blades (H) collect the solution, otherwise stop the machine and adjust the flap height with the knobs (B) and (I).
After adjusting, tighten the knobs.

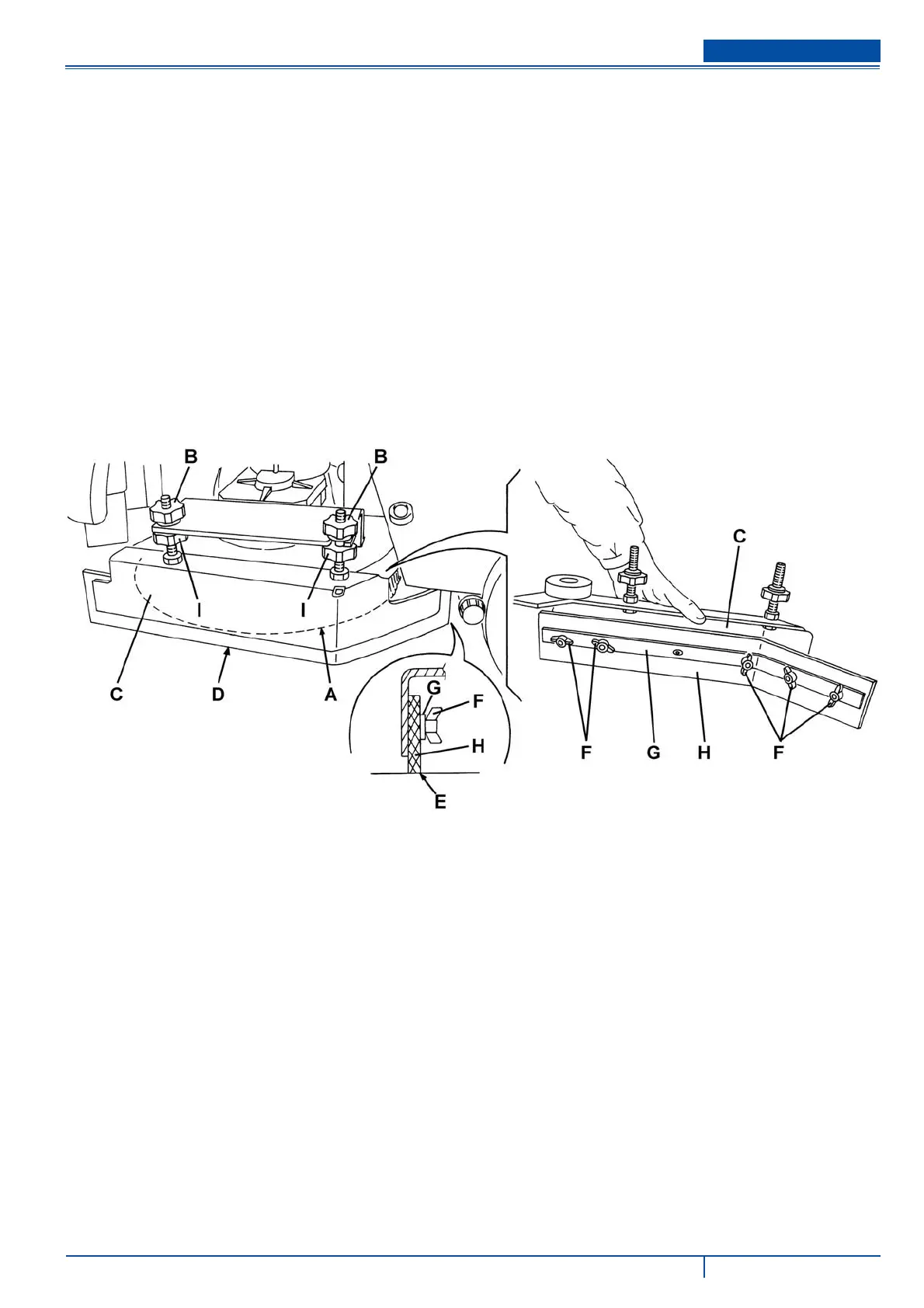

Figure 5
S311214A
