20 SCRUBTEC R 361 - R 366 - R 371 - R 371 C 9097421000(1)2008-01 A
ENGLISH USER MANUAL
BRUSH/CYLINDRICAL BRUSH CLEANING
CAUTION!
It is advisable to wear protective gloves when cleaning the brushes because there may be sharp debris.
Remove the brushes from the machine, as shown in Use chapter.
Clean and wash the brushes with water and detergent.
Check the brush bristles for integrity and wear; if necessary, replace the brushes.
TANK AND VACUUM GRID WITH FLOAT CLEANING
Drive the machine to the appointed disposal area.
Turn the ignition key (41) to “0”.
Open the covers (51 and 58).
Wash with clean water the covers (51 and 58), the tanks (60 and 61) and the vacuum grid with automatic shut-off float (54).
Drain the water from the tanks with the hose (10) and the tap (24).
If necessary, release the fasteners (A, Fig. 4), open the grid (B) and recover the float (C), clean all the components and then
reinstall them.
Check the tank cover gasket (D) for integrity.
NOTE
The gasket (D) creates vacuum in the tank that is necessary for vacuuming the recovery water.
If necessary replace the gasket (D) by removing it from its housing (E). When assembling the new gasket, install the joint (F) in
the rear central area, as shown in the figure.
Check the bearing surface (D) of the gasket (G) for integrity and sealing capabilities.
Close the covers (51 and 58).

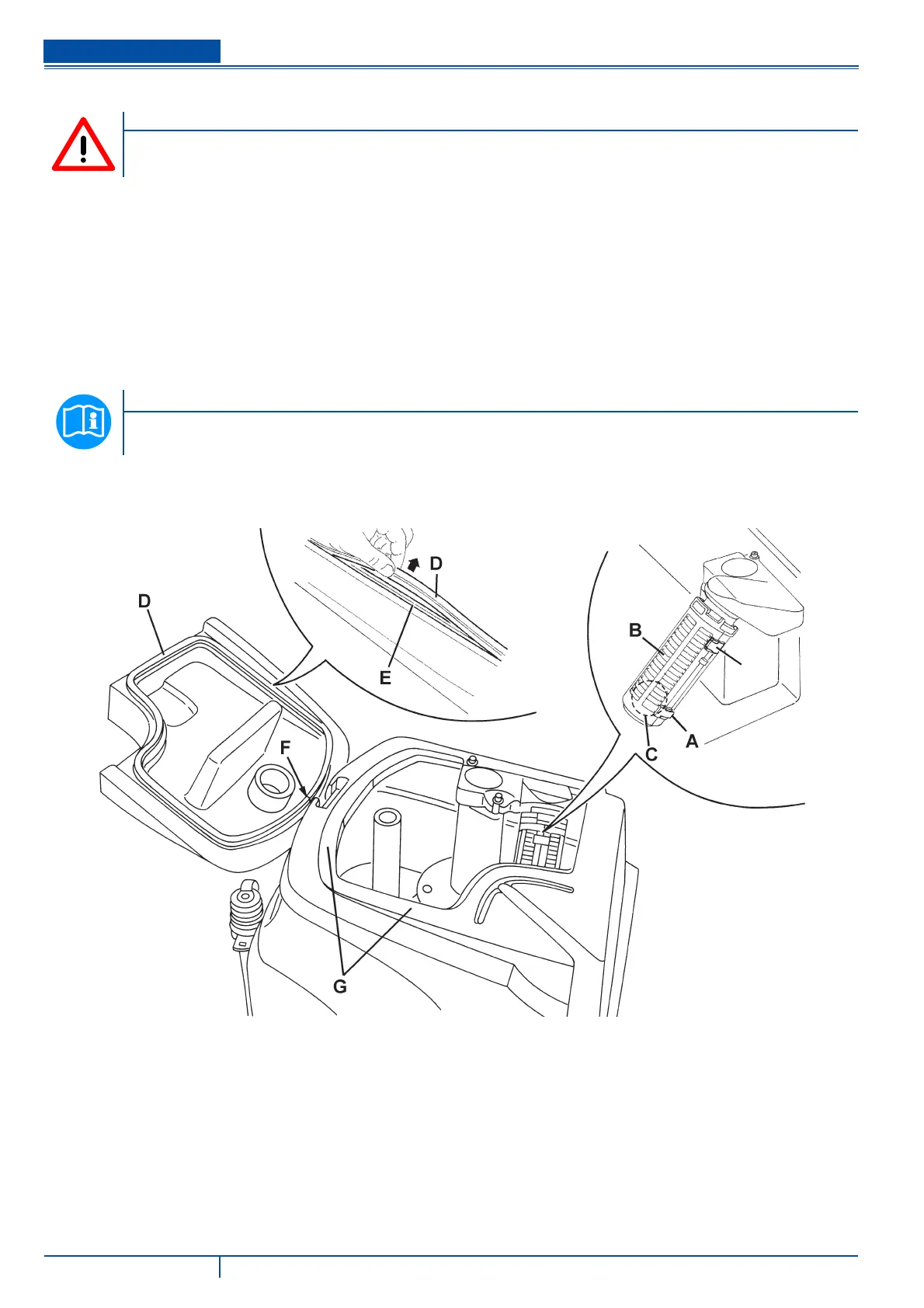

Figure 4
S311217A
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
8.
