Ambient Weather WS-5000 User Manual

Version 1.10 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 11

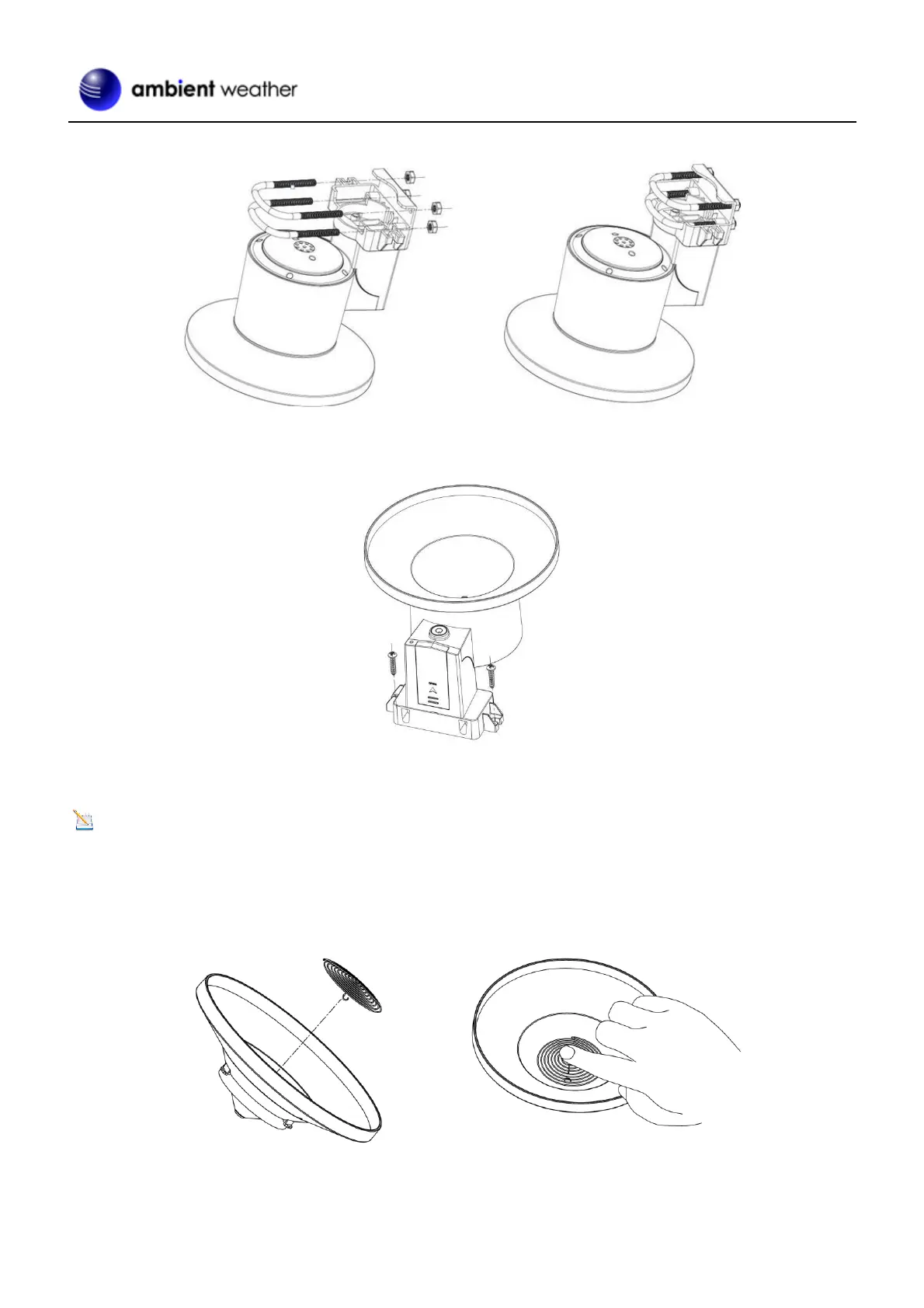

Figure 11
To mount to a wooden post or flat surface, use the two included mounting screws, as shown in Figure 122.
Figure 12
Use the bubble level next to the rain sensor to make sure the sensor array is completely level.
Note: If you cannot read the bubble level due to mounting constraints, place straddle a line or ruler level across
the top of the rain gauge for easier viewing.
5.4.3 Install the Funnel Coil Filter
To install the funnel coil filter, press the coil until the hook is inside the hole at the bottom of the funnel, and locked in
place. The spring tension will keep the filter sit tight on the funnel.
Figure 13

Ambient Weather WS-5000 Specifications

General

Wireless Frequency	915 MHz
Wind Speed Accuracy	± 1 mph
UV Index Range	0 to 16
Light Range	0 to 200, 000 Lux
Solar Radiation Range	0 to 1800 W/m²
Connectivity	Wi-Fi
Display Type	TFT LCD
Transmission Distance	1000 feet
Temperature Range	-40 to 140 °F
Humidity Range	10% to 99%
Wind Direction	0° to 360°
Rainfall Measurement	0 to 999.9 inches
Power Source (Outdoor Sensor)	Solar panel with battery backup
Console Power Source	5V DC adapter
Data Storage	Ambient Weather Network
Compatibility	Amazon Alexa, Google Assistant, IFTTT
