Version 1.10 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 6

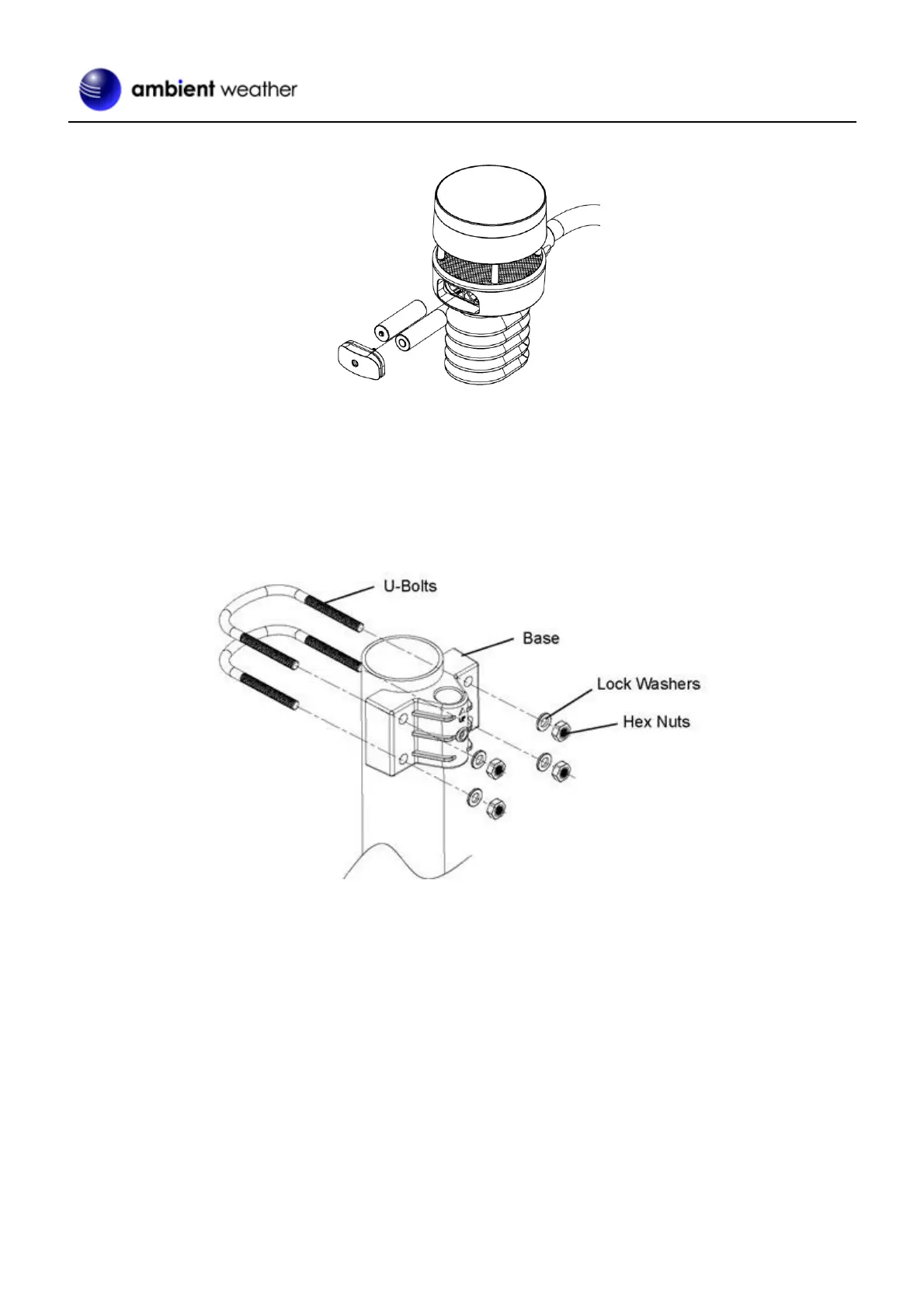

Figure 2
If the LED does no light up or flash, make sure the battery polarity is correct. Press the reset button.
5.3.2 Sensor Array Mounting
Install the sensor array plastic mounting bracket to your 1” to 2” diameter pole, as shown in Figure 3.
Figure 3
If the optional ultrasonic heater was purchased, and the heater cable is required, untie and snake the heater cable
through the mounting arm, as shown in Figure 4.
