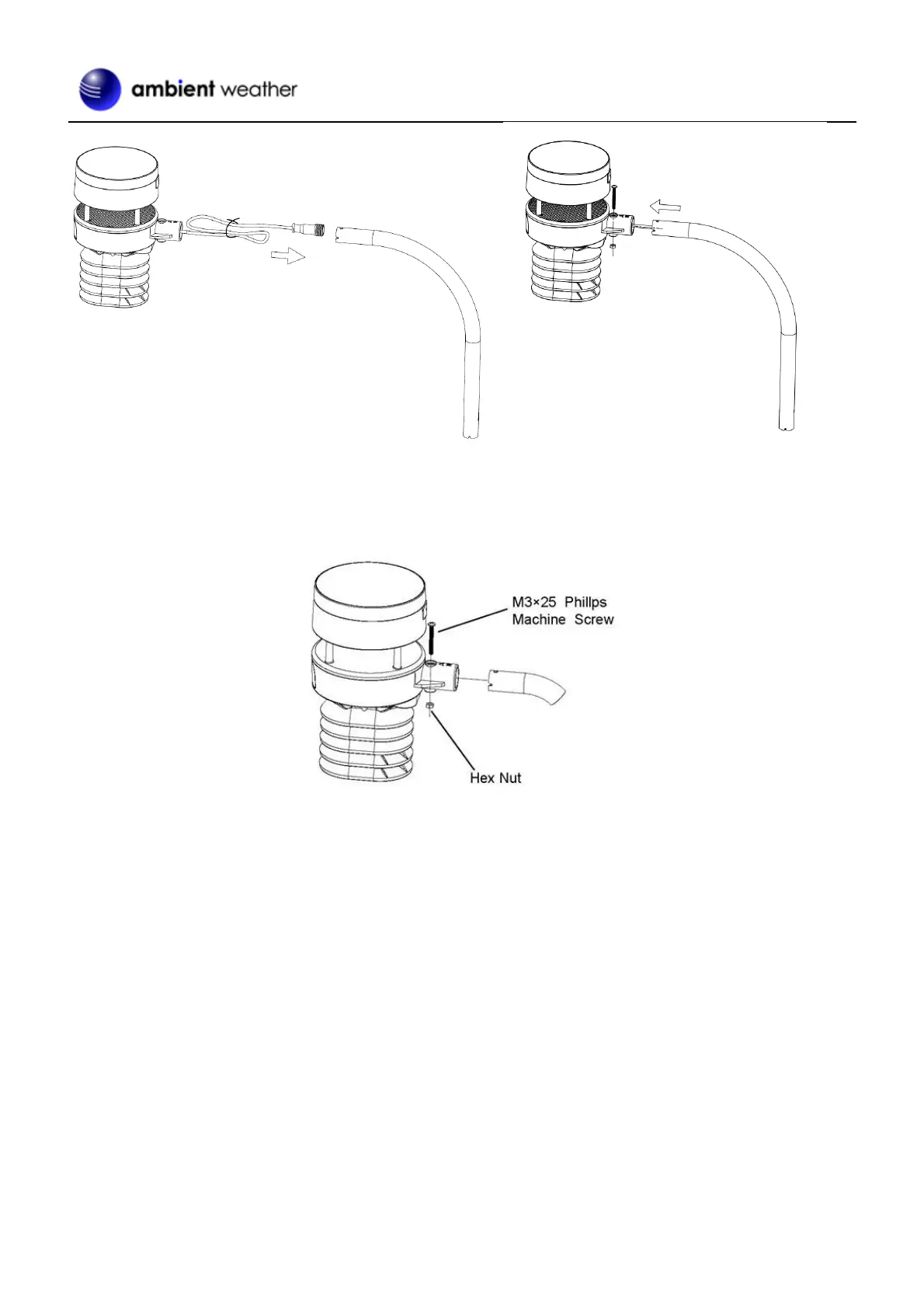

Attach the mounting arm to the sensor array, as shown in Figure 5.
Figure 5
Pass the heater cable through the mounting bracket, as shown in Figure 6.
Insert the arm into the base. Align the hole in the base with the hole in the mounting arm and inset the machine
screw.
