KX series v.1.70
WALL MOUNTING METAL BOX
The control panel is housed in metal box with dimensions:
H = 255mm - L = 300mm - P = 88mm (battery 7Ah)
H = 300mm - L = 400mm - P = 90 mm (battery 17Ah)
For the installation of the panel on the wall, choose not easy accessible place to unknown person.

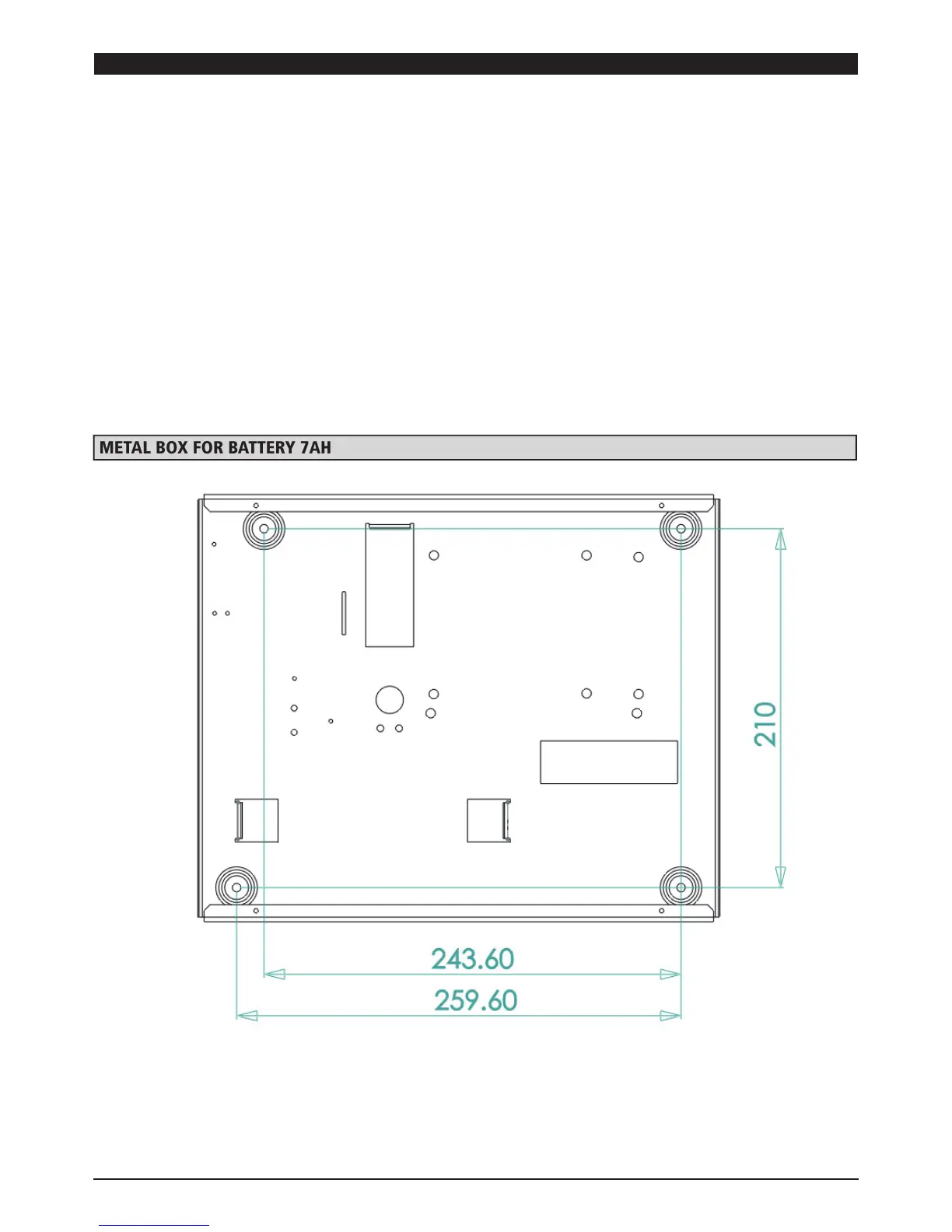

For the drilling of the wall, use the figure that represents the measurements of the distances of the holes of plastic box (fig below)
IMPORTANT: drill the place for install the tamper
Drill, taking care not to damage any piping in the back of the wall.
Insert for each hole, 1 fisher with dimater of 6mm
Slide the cables through provided holes
Fix the box on the wall with the right screw for fisher
