22
www.amcelettronica.com
KX series v.1.70

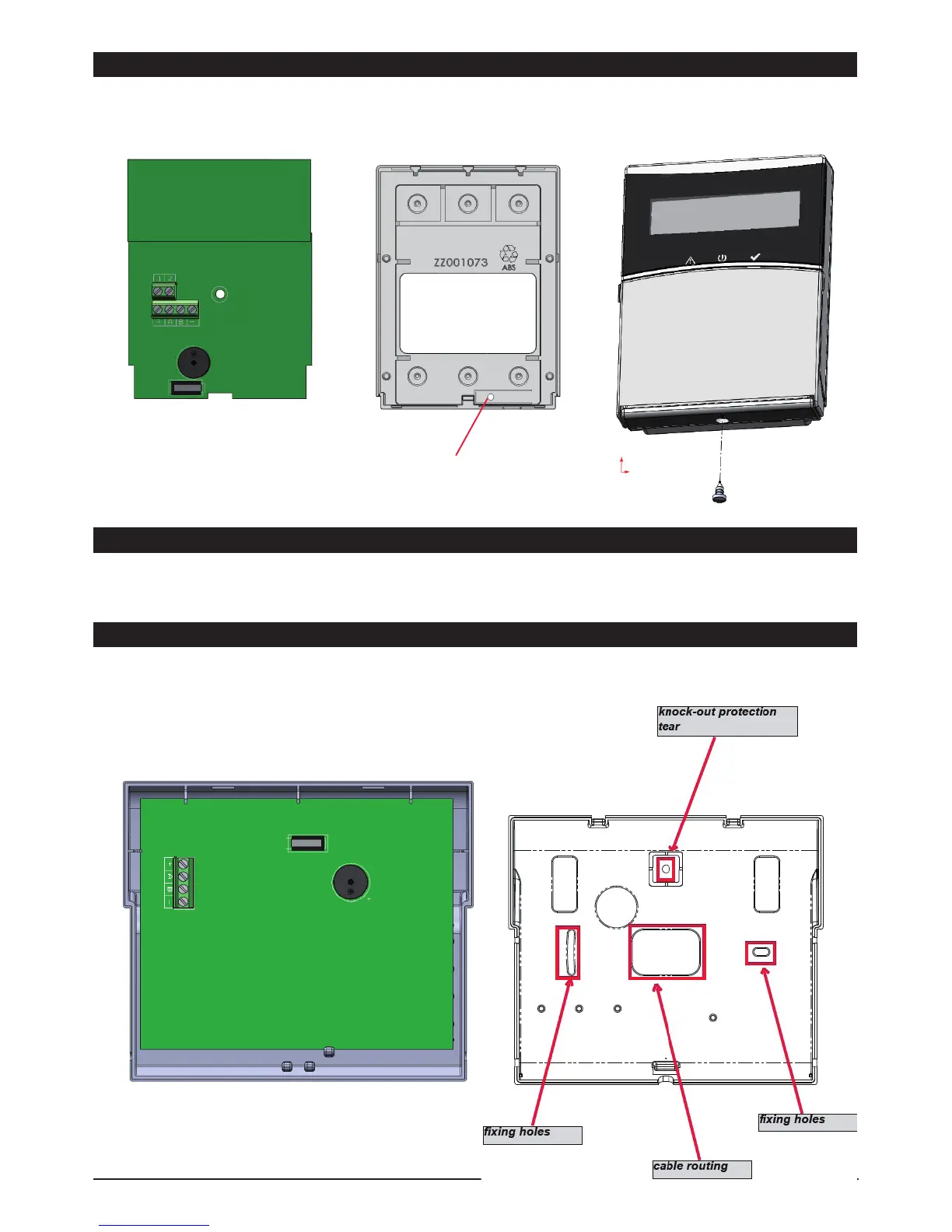

K LIGHT PLUS (TYPE B DEVICE)
K light plus is a Keypad that be connected to the RS485 bus. It is equipped of 2 line on board that be configured like INPUT and/or
OUTPUT. K light plus is used for programming and ARM/DISARM panel, is protected from open and removing from wall.
For fix the Keypad on the wall, use fisher of 4mm. For removing protection fix 1 fisher in the specific hole (see fig.)
Close the shape of keypad with the screw contained in the package (see fig.)
+ A B - (RS 485) = bus terminals for peripheral connection (see chapter fo bus connection)
terminal 1 - 2 = terminals that be programmed like input and/or output
K LIGHT (TYPE A DEVICE)
tamper hole
K LCD (TYPE A DEVICE)
K LCD is a Keypad that be connected to the RS485 bus. K LCD is used for programming and ARM/DISARM panel, is protected from
open and removing from wall.
For fix the Keypad on the wall, use fisher of 4mm. For removing protection fix 1 fisher in the specific hole (see fig.)
K LCD is equipped with 4 terminal:
+ A B - (RS 485) = bus terminals for peripheral connection
(see chapter fo bus connection)
Power supply voltage: 13.8Vdc
Rated current: 25mA
Maximum current: 160mA
Power supply voltage: 13.8Vdc
Rated current: 25mA
Maximum current: 160mA
K light is used for programming and ARM/DISARM panel, is protected from open and removing from wall.
For fix the Keypad on the wall, use fisher of 4mm. For removing protection fix 1 fisher in the specific hole (see fig.)
Close the shape of keypad with the screw contained in the package (see fig.) K Light has no input / output terminals.
