47
www.amcelettronica.com
KX series v.1.70

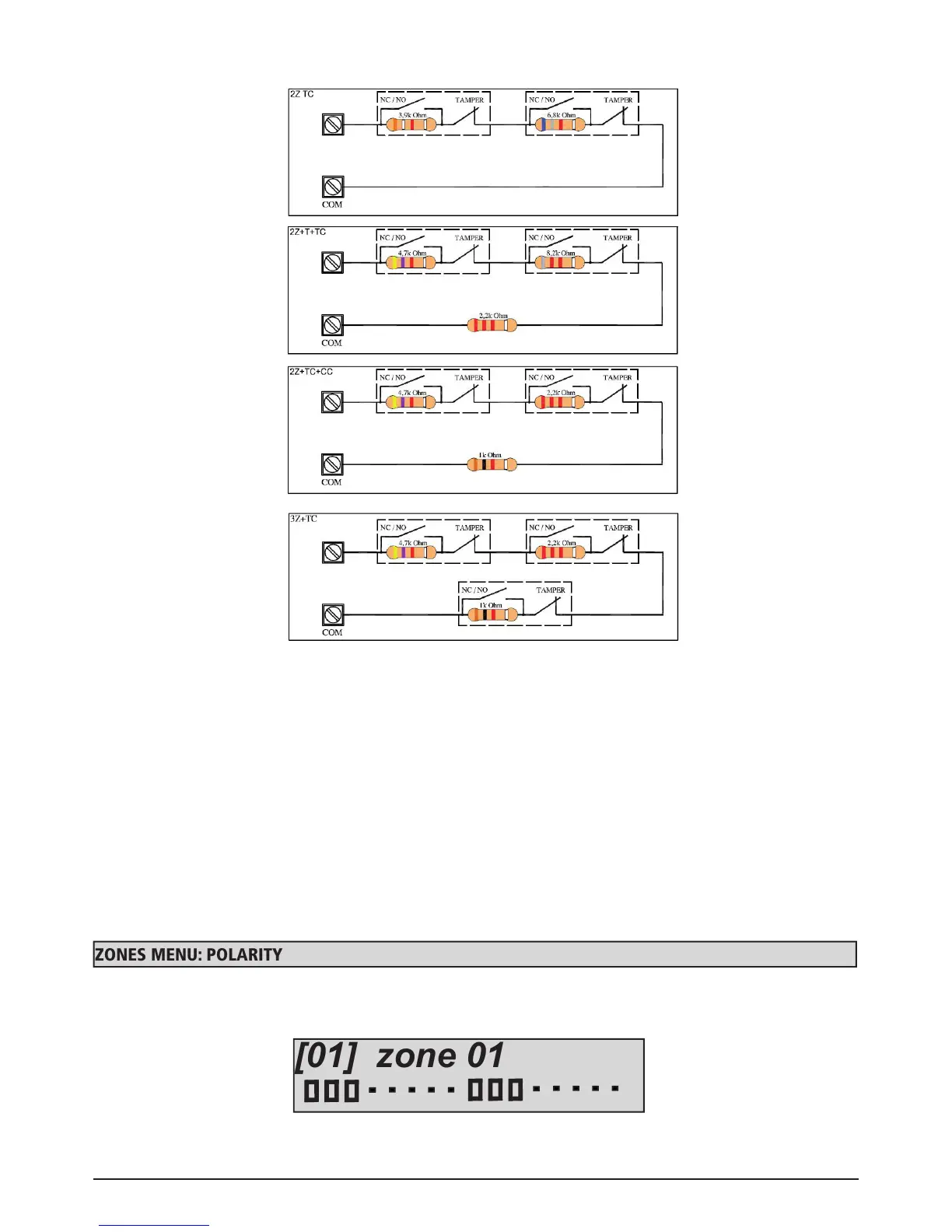

• 2 Zones
• 3K9 Zone 1
• 6K8 Zone 9
• Tamper 3K9
• 2 Zones
• 4K7 Zone 1
• 8K2 Zone 9
• Tamper 2K2
• 2 Zones
• 4K7 Zone 1
• 2K2 Zone 9
• Tamper 1K
• 3 Zones
• 4K7 Zone 1
• 2K2 Zone 9
• 1K Zone 17
IMPORTANT: look at the table above, for determinate the configuration approved from EN 50131 (page 30)
Important: all these EOL resistor configuration is used without zones expansion. With these solutions it is possible
obtain more zone without zones expasion.
Note: if you use input expansion it is possible to have single, doubble and triple EOL resistor balance.
Note: when the zone terminal is 2 zone split, are assigned automatically +4 for K4 and +8 for K8
eg. line 1= 2 zone spilt = Z1 and Z5 (for K4)
eg. line 1= 2 zone spilt = Z1 and Z9 (for K8)
in case of 3 zone split:
eg. line 1= 3 zone spilt = Z1,Z5,Z9 (for K4)
eg. line 1= 3 zone spilt = Z1,Z9,Z17 (for K8)
With this parameter it is possible change the polarity of all type of input. For example if you have programmed NO EOL type you
can have N.C. or N.O. if you have a single EOL resistor type zone, you can change the polarity N.C. or N.O.
This parameter it is usable for all configuration type of inputs.
With dot the polarity is N.C. with squarethe polarity is N.O.
Enter in the parameter and press ENTER when the cursor flashing use CANCEL for change from dot to square.
