KX MODULES: KXIN - KXOUT
KXin is a module of expansion input. Can be used with the following model of panel:
K4 panel (1 module)
K8 panel (2 modules)
K8PLUS panel (7 modules)
X412 panel (1 module)
X824 panel (2 modules)
X864 panel (7 modules)
KXout is a module of expansion output. Can be used with the following model of panel:
K4 panel (1 module)
K8 panel (2 modules)
K8PLUS panel (4 modules)
X412 panel (1 module)
X824 panel (1 modules)
X864 panel (4 modules)
The expansion modules are contained in ABS protected box.
This modules must be connected directely to the RS485 bus from panel, most important before power the panel, set the address of
each connected module. All module start from addres n° 1.
Eg. if you have 3 connected module the addresses are 1-2-3, if you have another 2 OUT (KXout) modules the addresses will be 1-2.
The addresses can be set with dip switch on board (follow setup scheme).
KX modules are certified* CEI 79-2:1998+Ab:2000, CEI EN 50131-3:2009 e CEI EN 50131-6:2008 Grade: 2. Certifier
IMQ – Sistemi di sicurezza.
* after specific programming
SPECIFICATIONS
KXin KXout
Supply 10 - 14.5Vcc (nominal 13.8Vcc) 10 - 14.5 Vcc (nominal 13.8Vcc)
Current 31mA@13.8V 75mA@13.8V
Zones 8 for each module -
Outputs - 3 free contact relay outputs (30V 1A)
Protection antiopening / back tamper antiopening / back tamper
Bus tamper connections monitored tamper connections monitored
The main features are:

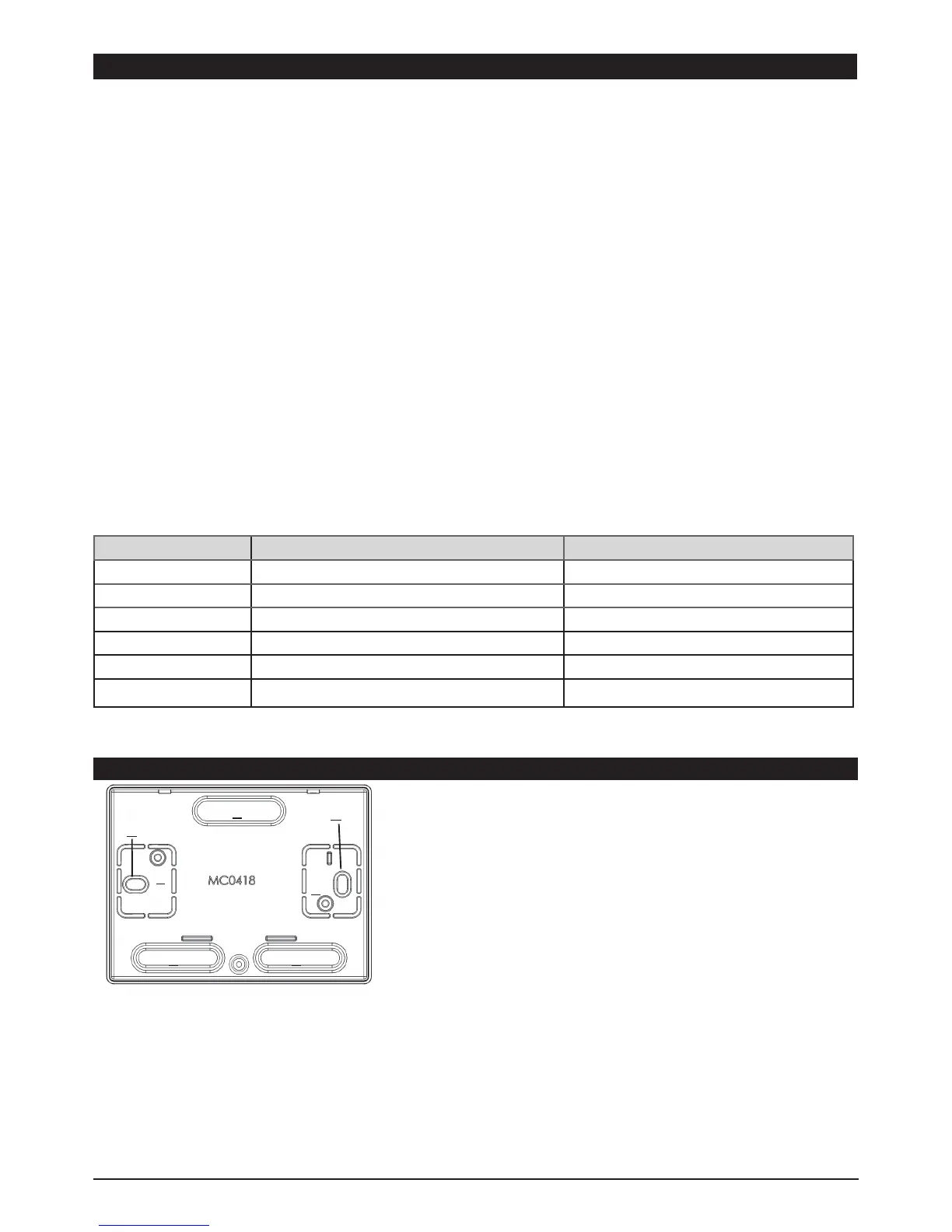

FIXING HOLES
Knock out (where necessary) the points B, for cable entry.
Fix the bottom of the box plastic, with 2 screws at points A
Fix the board at points C
NOTE: The fix points A, also serve for the back tamper system
