When the box is fixed on the wall proceed for main power cabling:
The power of the panel must be separate, and must be taken from the main power panel of the place.
The power line must be protected by devices of sectioning and protection in accordance with local regulations.
Must be connect after 16A circuit breaker device with operating curve type C, with supply conductors, (including earth), minimum
section of 1.5 mm2.
Wiring connection in the panel box must be like in figure below:
- Connect phase, neutral and earth to the fuse housing like in figure
- make sure that the earth connection is like the figure
- The erath is bring to the panel by metal box, the connection is made from screw of fuse housing and metallic turrets on panel

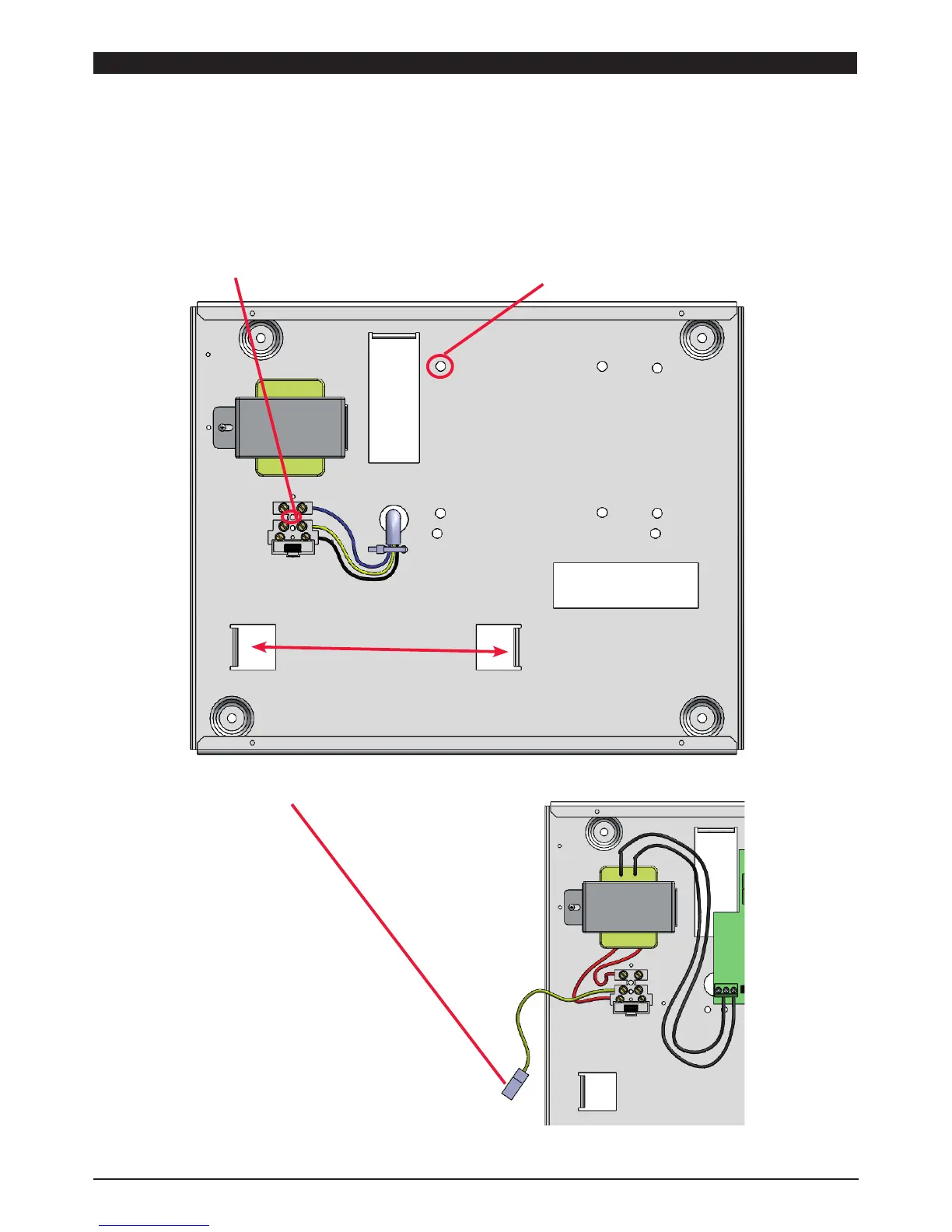

WIRING MAIN POWER AND EARTH
metal turret for bring earth to the board
screw for connnect the earth box
For bring the earth on closing lid of the box, use the faston
terminal (see fig.)
battery place
To Next Page
