KX series v.1.70

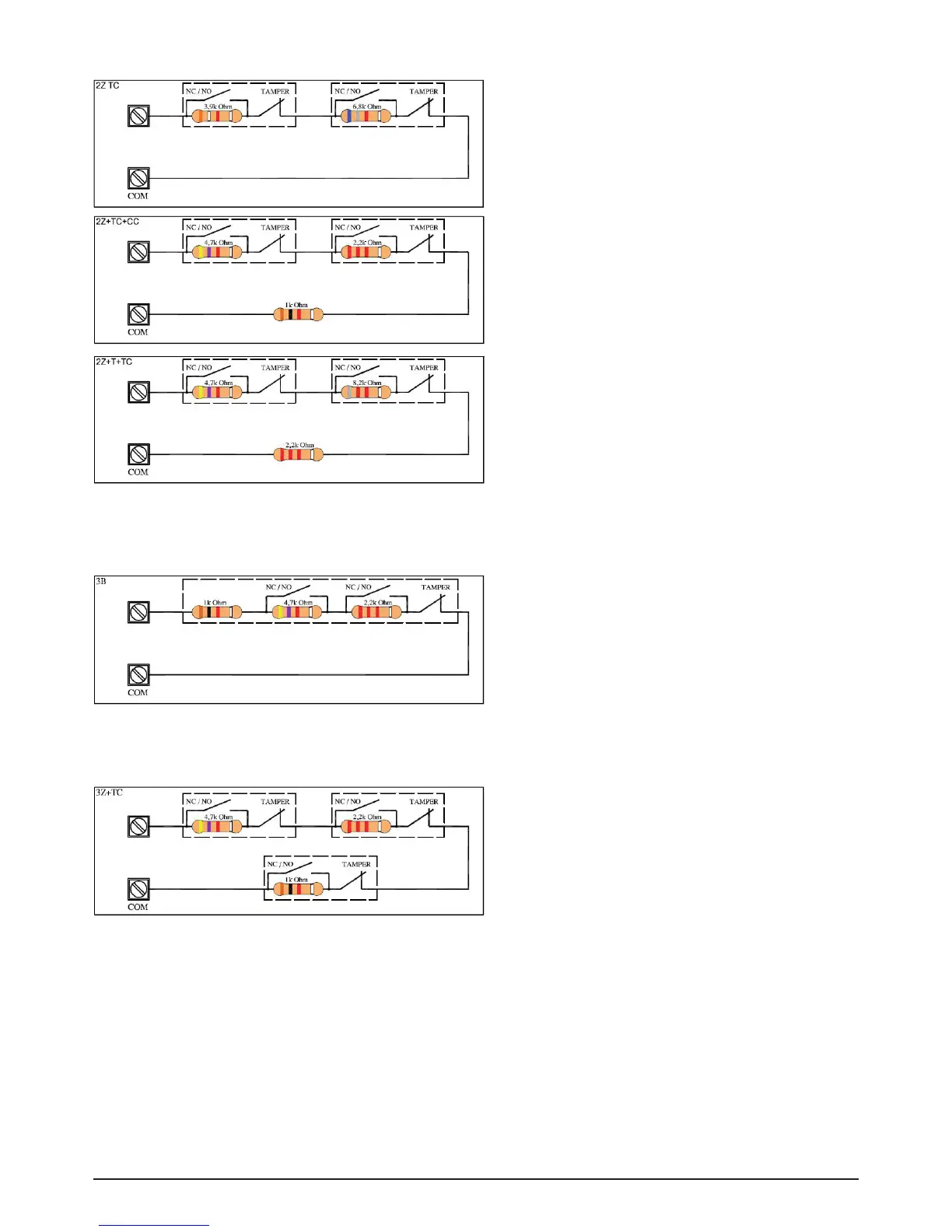

2 zones with cut and short circuit protection, follow selectable resistors values: certified EN 50131

Triple EOL protection: ALARM - TAMPER - MASKING not certified EN 50131

3 zones with cut wire protection: not certified EN 50131
