KX series v.1.70

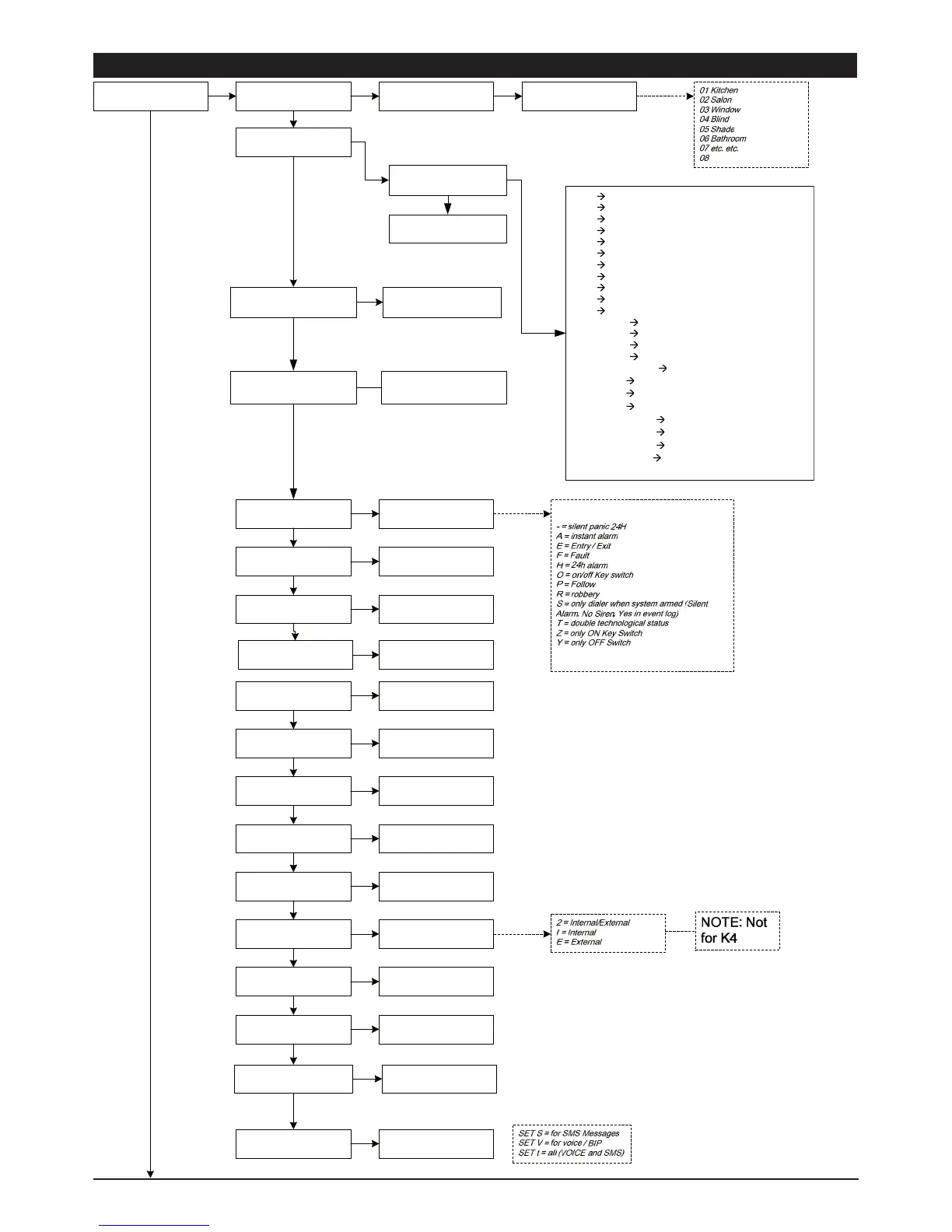

TECH KEYPAD MENU - 2
MENU
ZONES
Zones Menu
Name
I01-Input 01
* - play V-Edit
I01-Input 01
076 179 000 000
Zones Menu
Type
Zones Menu
Function
[01] zone one
AAAAAAAA------------
[01] zone one
□□□□□□□□●●●●●●●
Zones Menu
State
[01] zone one
1
Zones Menu
Alarm Pulses
I01/Prg 12345678
input one ●●●●●●●●
Zones Menu
Programs On/Off
[01] zone one
User 1
Zones Menu
Users On/Off
[01] zone one
●●●●●●●●●●●●●●●
Zones Menu
Lock Exclusion
[01] zone one
●●●●●●●●●●●●●●●
Zones Menu
Test Enabling
[01] zone one
●●●●●●●●●●●●●●●
Zones Menu
Keypad Buzzer
[01] zone one
30
Zones Menu
Zones Delays
[01] zone one
●●●●●●●●●●●●●●●
Zones Menu
AutoExclusion
Zones Menu
Telephones Link.
I01/Tel 12345678
*-Play S-S- - - - -
[01] zone one
22222222222222222
Zones Menu
Sirens Activat.
(Z01) Off = not configured
(Z01)
No EOL = N.C. or N.O.
(Z01)
Switch Alarm
(Z01)
wireless
(Z01)
1 Bal. 1K
(Z01)
1 Bal. 2K2
(Z01)
1 Bal. 3K3
(Z01)
1 Bal. 3K9
(Z01)
1 Bal. 4K7
(Z01)
1 Bal. 6K8
(Z01)
1 Bal. 8K2
(Z01 – TAM)
2 Bal. 4K7 2K2
(Z01 – TAM)
2 Bal. 6K8 3K3
(Z01 – TAM)
2 Bal. 2K2 1K
(Z01 – TAM)
2 Bil. 6K8 6K8
(Z01 – TAM - MAS)
3 Bal. 2K2 1K 4K7
(Z01 – Z05)
2 Zon. 4K7 - 8K2
*
(Z01 – Z05) 2 Zon. 4K7 - 2K2
*
(Z01 – Z05) 2 Zon. 3K9 - 6K8
*
(Z01 – Z05 – TAM) 2 Zon. 3K9 - 6K8 – 3K9
*
(Z01 – Z05 – TAM) 2 Zon. 4K7 - 8K2 – 2K2
*
(Z01 – Z05 – TAM) 2 Zon. 4K7 - 2K2 – 1K
*
(Z01 – Z05 – Z09) 3 Zon. 4K7 - 2K2 – 1K
*
* ONLY K4 and K8
[ 01 ] Z01
Off
[ 01 ] Z64
Off
Zones Menu
Polarity
Zones Menu
correction
[ 01 ] zone 1
□
●●●
□
●●●●●●●●●
Line 01
+000 OHM
[01] zone one
●●●●●●●●●●●●●●●
Zones Menu
Unbypass
Zones Menu
Excl. cycle
[01] zone one
1
To Next Page
