34

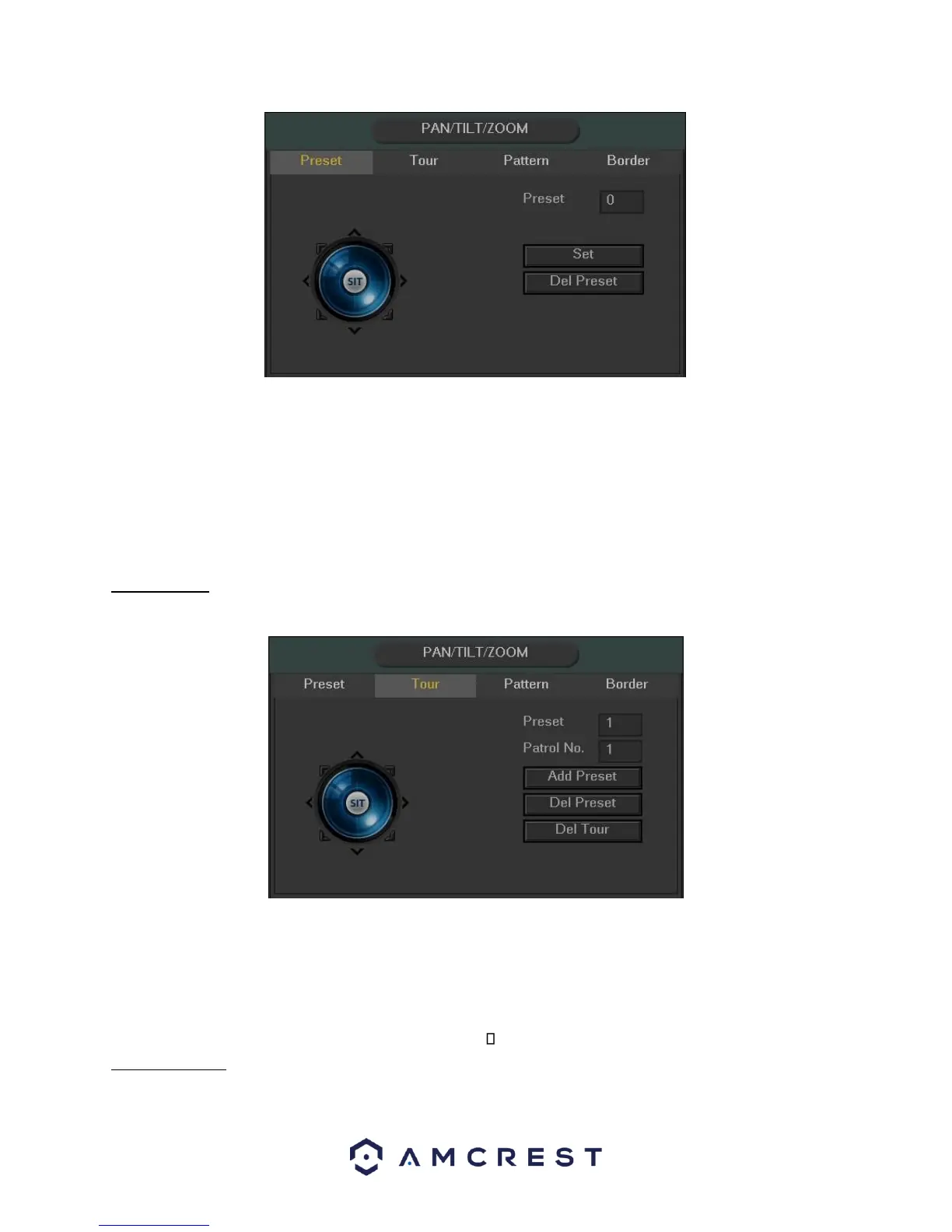

To create and manage preset camera configurations, follow the steps below:
• Configure the camera positioning as needed.
• Click the Set button and then input the preset number.
• Click the Set button to save the current preset.
• Click Del Preset to delete the current preset.
•
4.4.2.2. Tour
The tour function allows for the use of multiple presets stringed together.
To create and manage tours, follow the steps below:
• Ensure you have more than 1 preset configured already.
• Input the tour value, and the preset value.
• Click the Add Preset button to add another preset.
• Continue adding presets as needed.
• Click Del Preset to remove a preset from the tour. Click Del Tour to delete the entire tour.
4.4.2.3 Pattern
The pattern function allows for a custom tour to be created on the fly using the PTZ controls.
