American Eagle 30P - Crankcase Group (Straight Shaft)

Page 16 | American Eagle
®
30P Compressor Manual

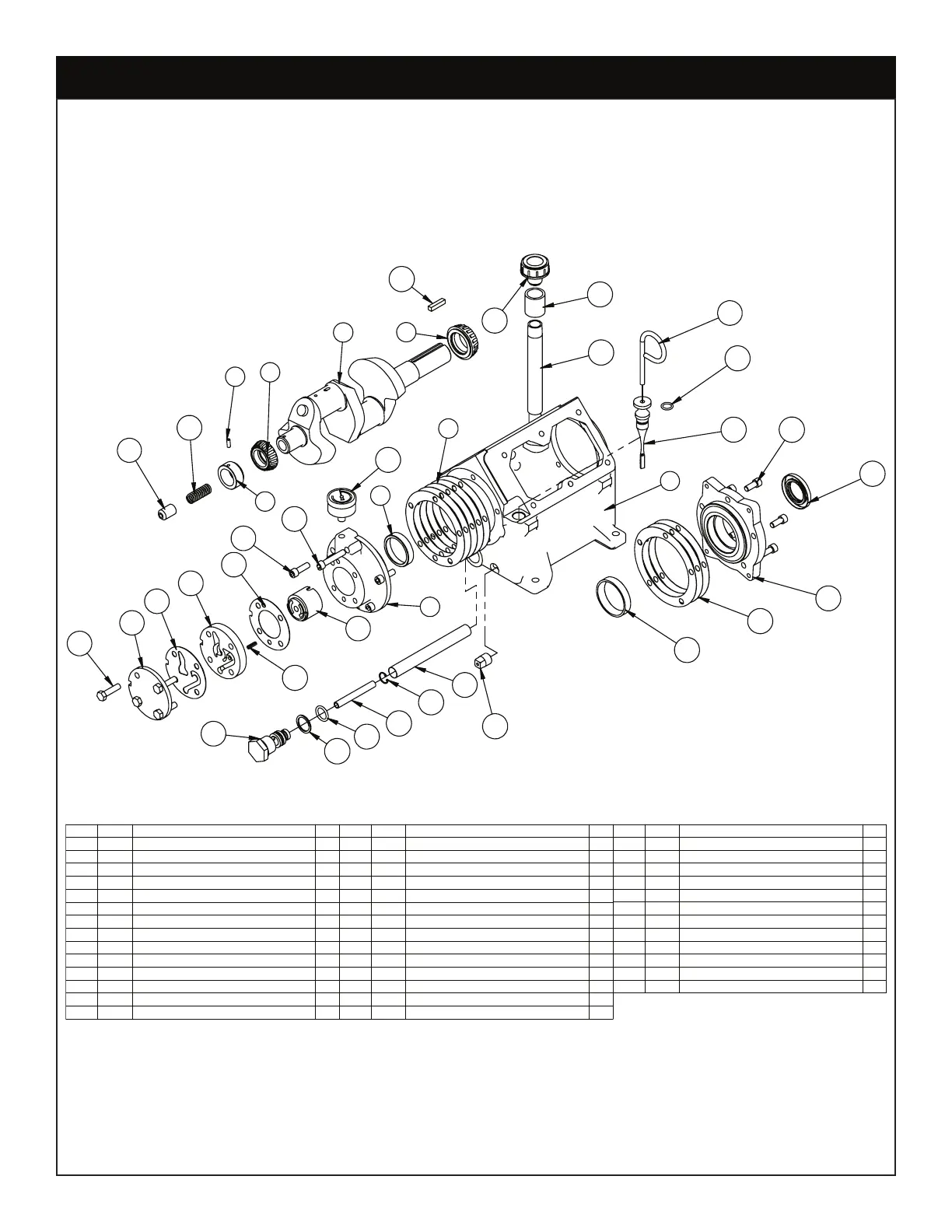

CRANKCASE GROUP
11
10
8
9
7
5
6
37
36
35
31
33
32
28
30
26
27
29
25
23
24
22
38
21
17
16
15
14
20
13
19
3
34
18
12
2
1
4
39
40
ITEM PART DESCRIPTION QTY.
1 C1174 CRANK CASE V480/360
1
2 5822 GASKET BEARING CARRIER-V480 (.015)
5
3 5821 BEARING CARRIER OIL PUMP V360/V480
1
4 C1164 BEARING CUP (L44610)
1
5 22834 CRANKSHAFT V480 S
1
6 C0856 BEARING CONE LM67048
1
7 C0855 BEARING CONE
1
8 5820 OIL PUMP DRIVE SLEEVE V480/V360/200
1
9 5817 ROLL PIN 0.19X.50
1
10 C0060 SPRING OIL PUMP
1
11 C0059 OIL PUMP TRANSFER BUSHING
1
12 C0050 OIL PUMP
1
13 C6275 PORT PLATE GASKET
1
14 C0052 PORT PLATE MACHINED
1
ITEM PART DESCRIPTION QTY.
15 C0054 PORT PLATE COVER GASKET (SMALL)
1
16 22626 PORT PLATE COVER
1
17 0485
CAP SCR 0.31-18X1.25 HHGR5
4
18 6031 SCREW 0.31-18X1.00 SHC
1
19 6034
SCREW 0.31-18X1.00 SHC
4
20 22209 ROLL PIN 0.19X.63
1
21 C0055 OIL INTAKE PLUG
1
22 C5416 TUBE OIL INTAKE .38ODX3.00
1
23 C0058 OIL INTAKE FILTER SCREEN
1
24 C6273 SNAP RING PISTON PIN N5000-62
1
25 C4841 PLUG 0.38 NPT SQ HD BLK
1
26 5826 BEARING CARRIER CLUTCH PLT V480
1
27 C6271 FRONT PL GASKET
3
28 5825 BEARING SEAL V480
1
ITEM PART DESCRIPTION QTY.
29 C1163 BEARING CUP (LM67010)
1
30 5813 CAP SCR 0.31-18X0.75 SH
5
31 22686 HANDLE DIPSTICK OIL CHECK V480
1
32 22210 DIPSTICK OIL CHECK V480
1
33 C0041 O'RING-112
1
34 5819 GAUGE OIL PSI 1.5
1
35 C0062 BREATHER BODY
1
36 C5929 FTG 8-8 FP-FP CPLR STRAIGHT BLK
1
37 22868 BREATHER CPRSR .50NPT NY8
1
38 C0057 O'RING 2-115 FOR OIL PICKUP TUBE
1
39 23047 KEY FLYWHEEL 1/4
1
40 50389 WASHER 0.885X1.115X0.064 COPPER
1
Crankcase Group (Straight Shaft)
