30P Compressor Manual | Page 5
W/ 15AMP ATO FUSE
Electrical Connections:
Supplied with the compressor is a wire harness pigtail which has 4 leads coming off of it.
Connect the black wire to the vehicle frame or other suitable ground. Connect the red
lead to a fused power source. Mount a single throw toggle switch in a convenient location
and connect the green wire from the compressor to this switch. Connect the other switch
terminal to a fuse holder and then to a 12V power supply. The yellow wire is required from
the compressor when connecting the speed control into the system.

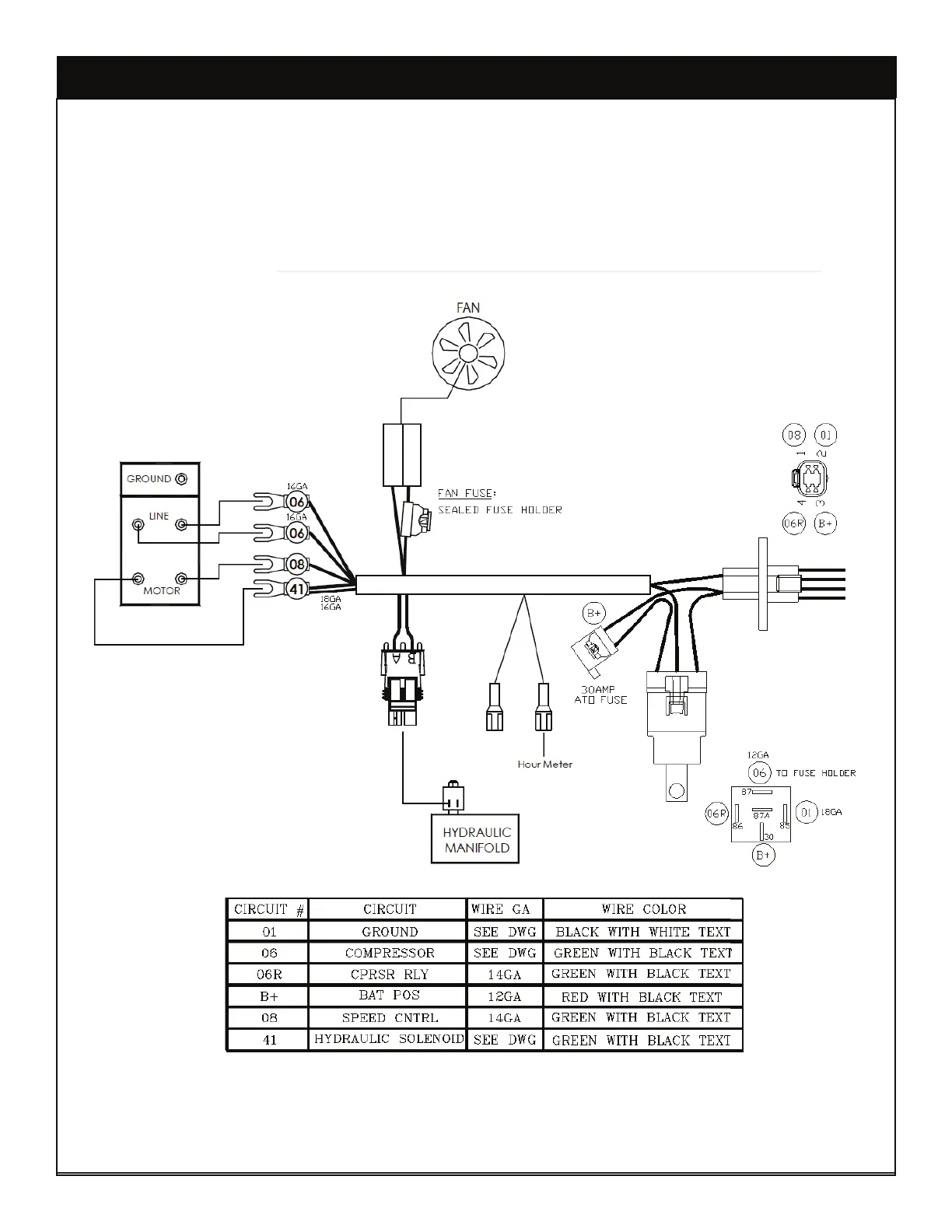

30P Electrical Schematic
