American Eagle 30P - Head Group

Page 18 | American Eagle
®
30P Compressor Manual

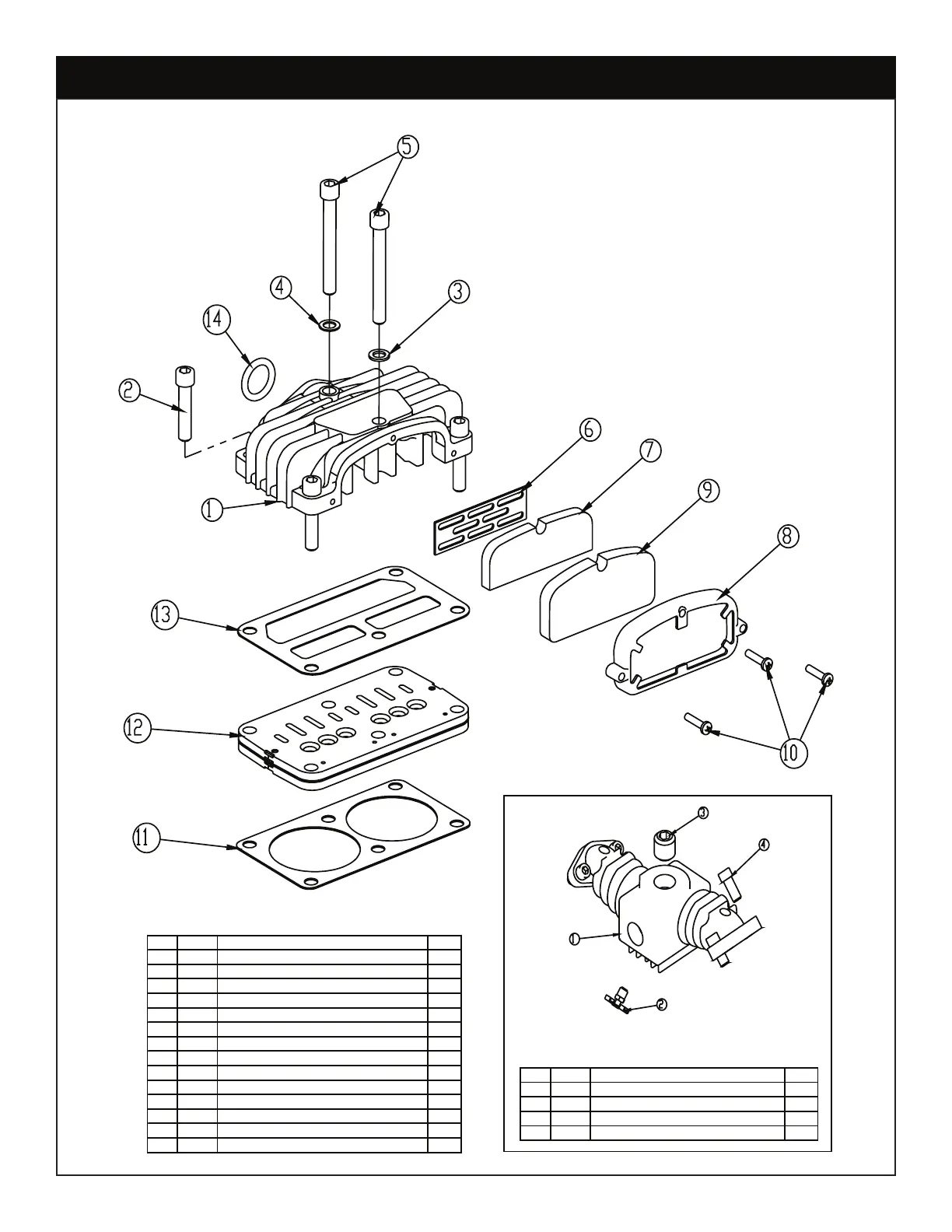

HEAD GROUP
.YTQNOITPIRCSEDTRAPMETI
15808 HEAD A/C ALUM V480 O/S1
2C1586 CAP SCR 0.38-16X1.75 SH HEAD BOLT 4
3C0040 WASHER HD BOLT STL1
4 5828 WASHER LONG HD BOLT (BRASS)1
5C1582 BOLT 3.00 HEAD SACKED 2
1NEERCS RETLIF7920C6
1MAOF RETLIF5170C7
1RENIATER RETLIF4920C8
1MAOF RETLIF6920C9
10 C0300 SCREW #10-32X0.88 NF 3
11 D0887 GASKET VALVE PLATE 200/480 1
12 24103 VALVE PLATE SUB ASM O/S1
13 C0310 GASKET HEAD 143/230/360/4801
14 C0291 O'RING-214 VITON 9009-751
Manifold Discharge
.YTQNOITPIRCSEDTRAPMETI
1D0846 MANIFOLD V480 DISCHARGE O/S1
25797DRAIN COCK-V480 1
36000PLUG 0.75 NPT SQ HD CS BLK1
4C1166 0.44 X 1.00 PULSATION TANK BOLT 4
Head Group
