American Eagle 30P - Chapter 1 - Specifications; Specifications Table

American Eagle
®
30P Compressor Manual | Page 1

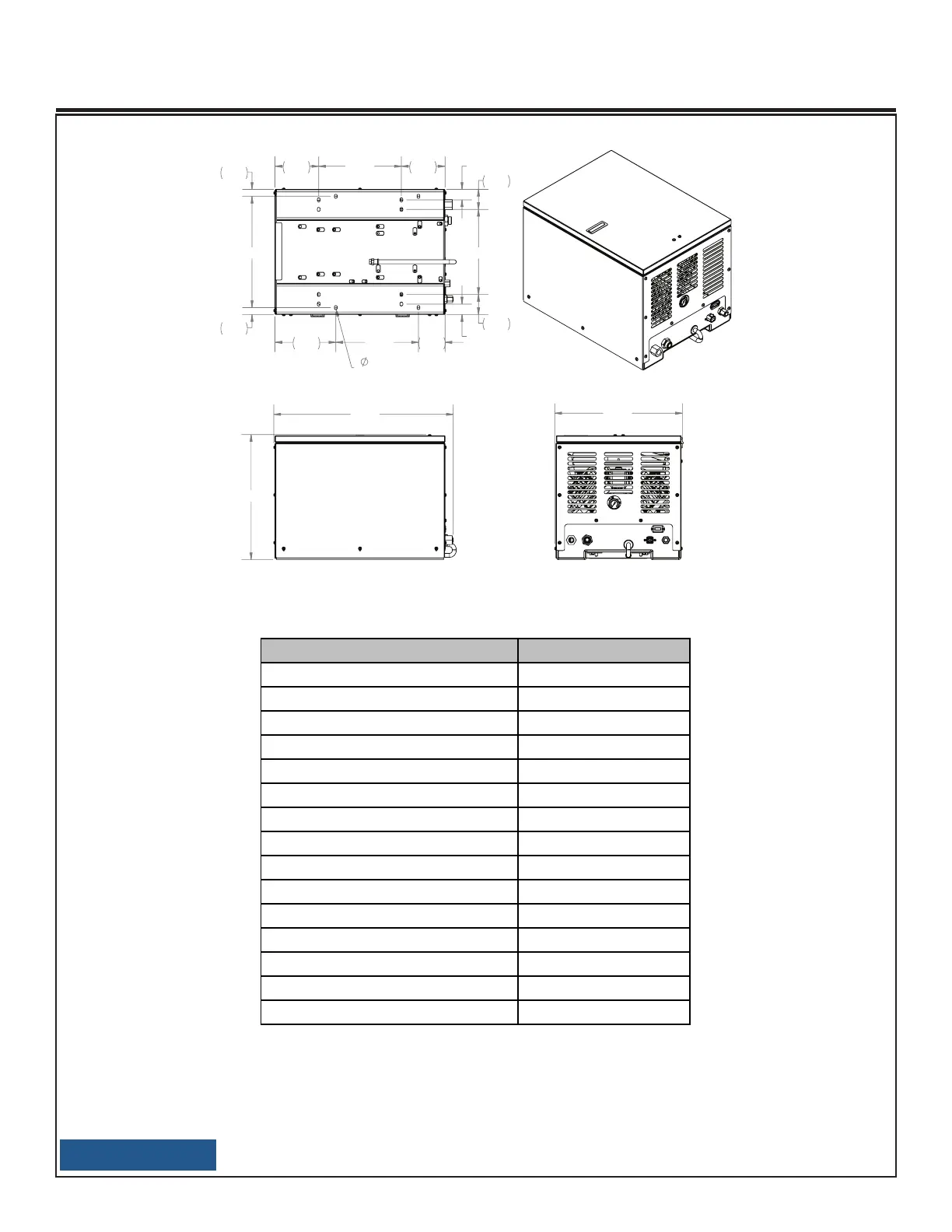

Chapter 1 - Specifications
20.07
19.68
28.23
4.19
13.00
9.56
6.87
13.00
6.87
.44 X 0.63 SLOT
TYP 12
1.09
17.50
1.09
1.65
3.15
13.38
1.65
3.15
SPECIFICATIONS 30P
Hydraulic System 10-11 GPM @ 1650 PSI
Compressor RPM 1300 RPM
Hydraulic Operating Pressure 1650 PSI
Hydraulic Relief Pressure 3000 PSI
Max Working Pressure 150 PSI
Air Delivery (At Max Speed) 30 CFM @ 100 PSI
Weight (Hydraulic Driven Asm) 225 lbs.
Weight (Air Pump Only) 89 lbs.
Dimensions (Length) 28.25"
Dimensions (Width) 20.13"
Dimensions (Height) 19.75"
Electrical 12V DC
Crankcase Oil Capacity 1 Quart
Cooler Fan 800 CFM, 12 Volt (Pull)
Drive Type Direct Driven
Duty cycle on Piston Compressors is 50:50 over 10 minutes.
NOTICE
