UNPACKING AND INSTALLATION
13 OTOWAVE 302+ INSTRUCTION FOR USE
2.4. CONNECTIONS

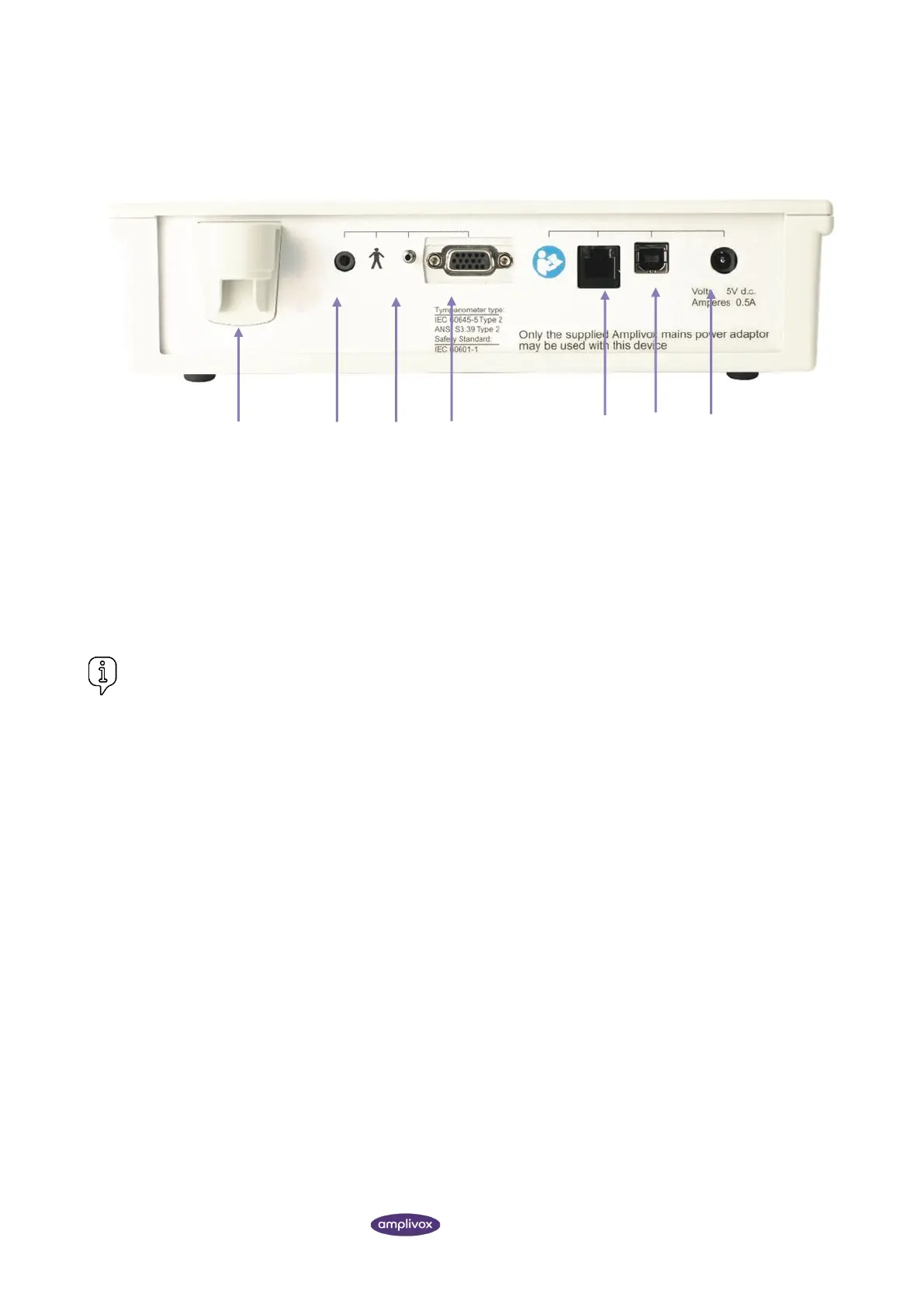

All connections are made to the rear panel of the tympanometer as shown below.
1
Probe holder
Holder to store probe while not in use
2
Contra phone
Contralateral transducer
3.5mm jack
3
Air channel
Connection of probe (pressure)
Push-fit connector
4
Probe
Connection of probe (electrical)
15-way D connector
5
Printer
Connection of external printer
RJ12 socket (6-way)
6
USB
Connection for computer (via USB port)
USB Connector, Type B
7
Power
Mains AC/DC Adapter
2.5mm power jack
Please note: Only connect the accessories supplied with the instrument or supplied by Amplivox or an Amplivox
distributor. These parts have been tested for use with the Amplivox Otowave 302+ tympanometer for compliance with
the standards IEC 60601-1 and IEC 60601-1-2. The use of accessories other than those specified may compromise
compliance with these standards.
2
3
1
4
5 6 7
