14 Installation AXB-F117 Stealth 1 Camera Controller
a. Locate the tilt-limit switch shown in Figure 16.
Adjustable tilt-limit
Installation notch for the
adjustable tilt-limit stops
Adjustable pan-limit
Installation notch for the
adjustable pan-limit stops
b. Rotate the AXB-F117 until the installation notch for the adjustable pan-
limit stops is in line with the pan-limit switch (Figure 16). The AXB-F117 is
now at its center of rotation for pan.
c. Place the AXB-F117 on the mounting surface so it is located in the middle
of its pan travel. Mark the mounting hole locations, and refer to the
mounting dimensions shown in Figure 17.
3. Mount the AXB-F117 to a flat surface by drilling four holes according to the
mounting-plate dimensions shown in Figure 17. Secure the AXB-F117 to the
surface using four 1/4" x 20 machine bolts and lock washers. If you want to
mount the AXB-F117 to a wall, go to step 4. Otherwise, go to step 5.

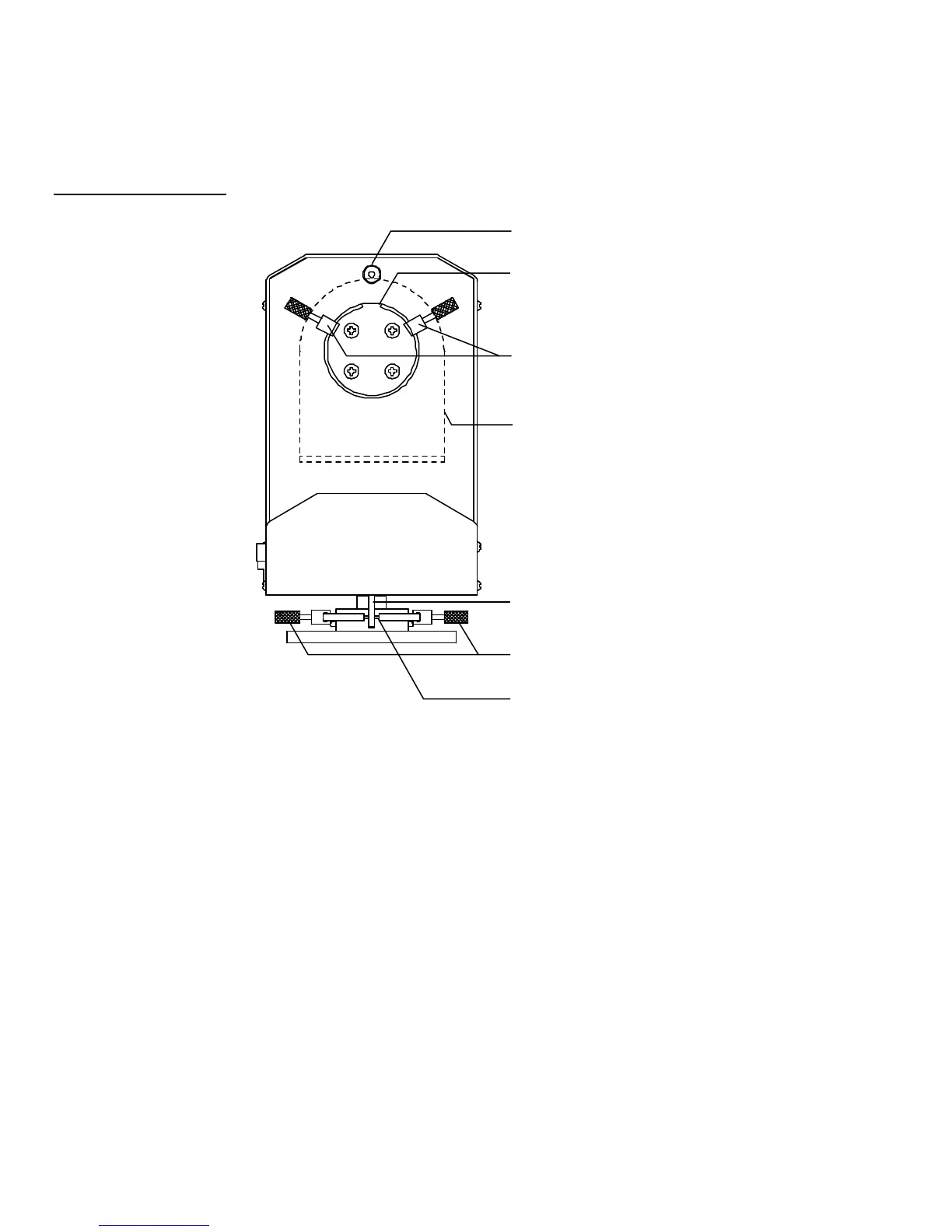

Figure 16
Pan/tilt-limit switches,
installation notches, and
adjustable pan/tilt-limit stops
