Preliminary Technical Data UG-1828
Rev. PrC | Page 309 of 338
In “Rx Overview” tab user can also read back IF frequency and observe pFIR channel filtering characteristics and their passband flatness.
Quick zooming capability allows zooming of the passband response using the mouse cursor as well as restoring to the full-scale plot. The
TES also provides capability to export the data plotted on the graphs to an external file. This is done by right-clicking on the graph area
and selecting option “Export Data to File. Data can then be saved to file for later analyses.

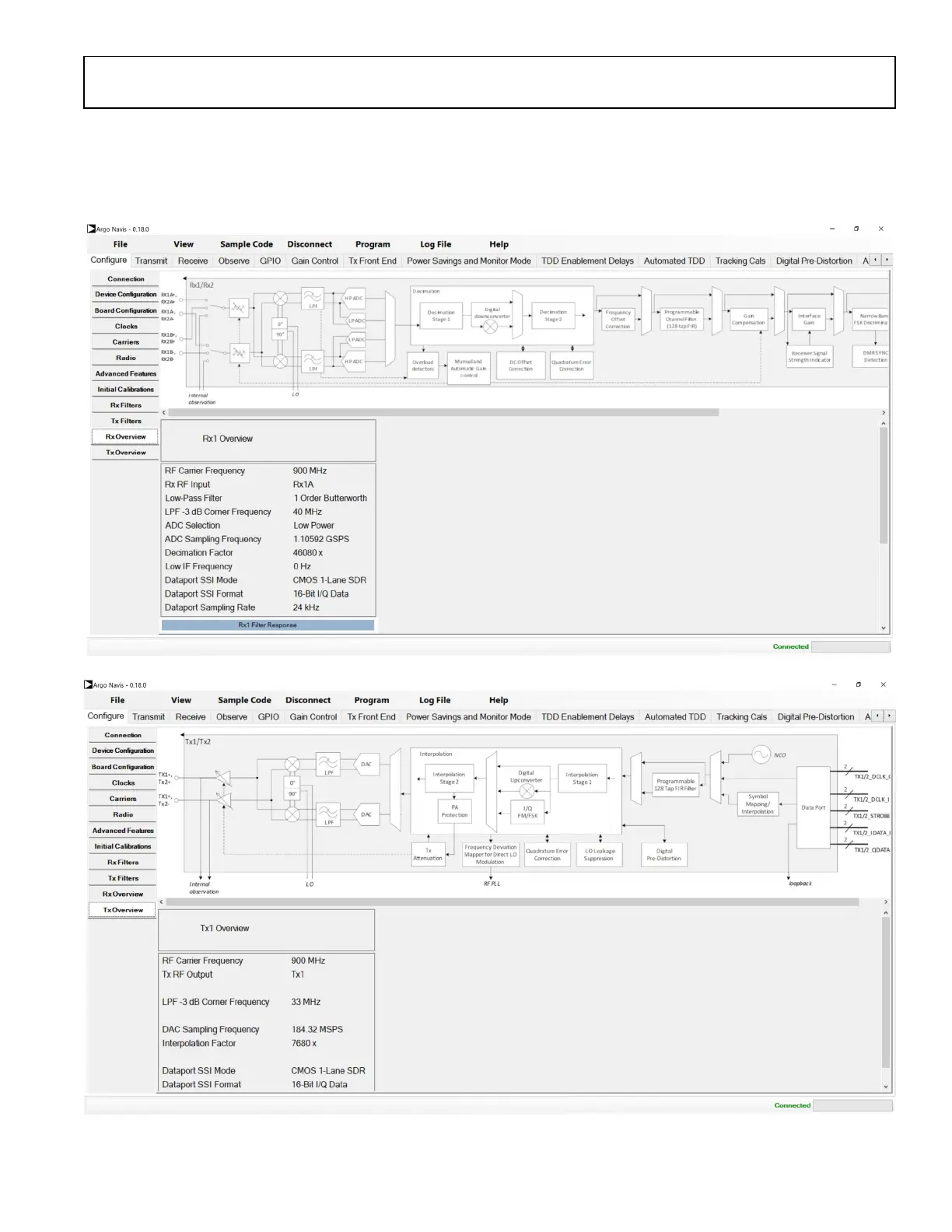

Figure 293. Rx Overview Tab
Figure 294. Tx Overview Tab
