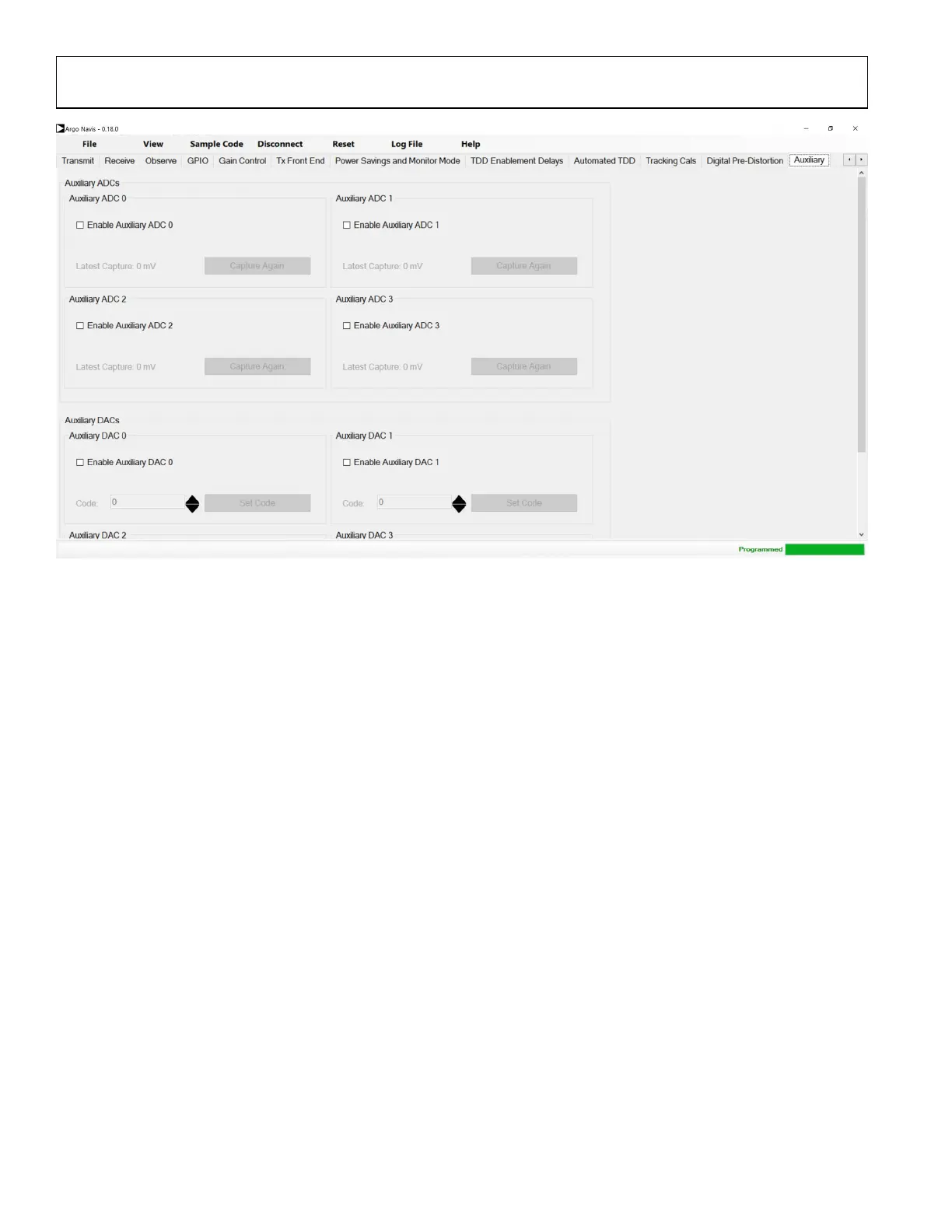

Figure 308. Auxiliary DACs and ADCs
FREQUENCY HOPPING TES EXAMPLES
Here we show two examples of utilizing TES to achieve frequency hopping for ADRV9001. For details on the frequency hopping
operation go to the Frequency Hopping section of this document.
Example 1: Manual Frequency Hopping
In this mode the user does not need to specify timing. In most cases, this is a mode to help users understand how frequency hopping
operates in ADRV9001. Here we use DMR profile as an example. Other profiles are largely the same.
In this example we will show frequency hopping for Tx only Rx only and TRx.
3. Connect.
4. Go to Carriers tab on the left pane.
5. Select Frequency Hopping under Carrier Configuration Mode.
The first three steps are the same for Automated TDD Frequency Hopping as well.
