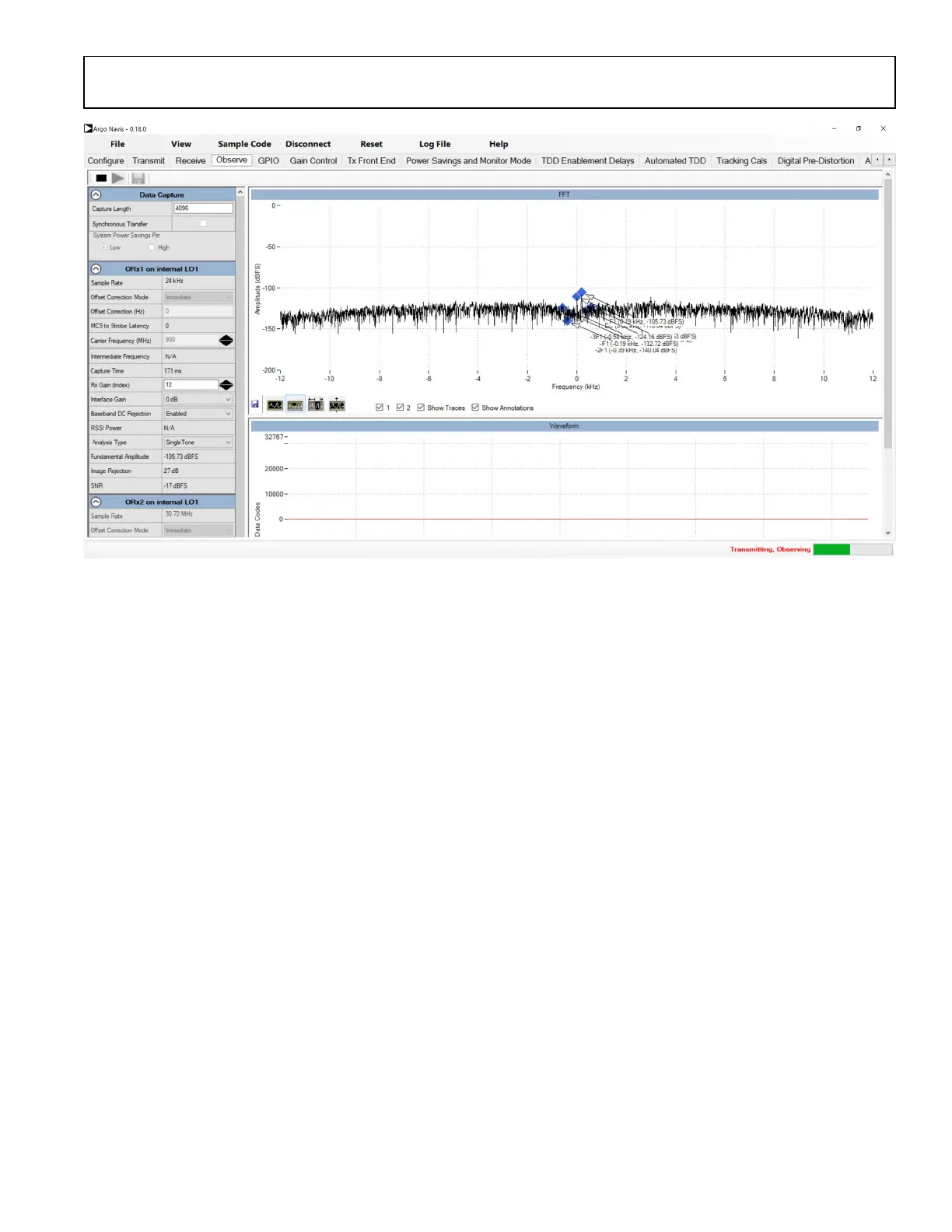

Figure 303. Observe Tab
Automated Time Division Duplexing (TDD)
ADRV9001 supports automatic TDD operation. User can send and receive TDD framed data by configuring this tab (see Figure 304).
This of course depends on how system and setup is selected described in the previous sections. ADRV9001 comes with predefined timing
configurations by default. However user can configure the timing as needed.
In the Automated TDD tab, user can configure the parameters using TDD configuration files:
• Frame and Sequences
• User can specify the duration of a frame
• User can select from sequencing of frames
• User can specify the number of frames in a sequence.
When the Enable Automated TDD check box is selected the used will be prompted to display a timing diagram. This diagram will update
every time one of the parameters in the TDD table is changed. This timing diagram shown in Figure 305 is based off the TDD table in
Figure 304.
