Analog Devices ADRV9001 User Manual

UG-1828 Preliminary Technical Data
Rev. PrC | Page 318 of 338

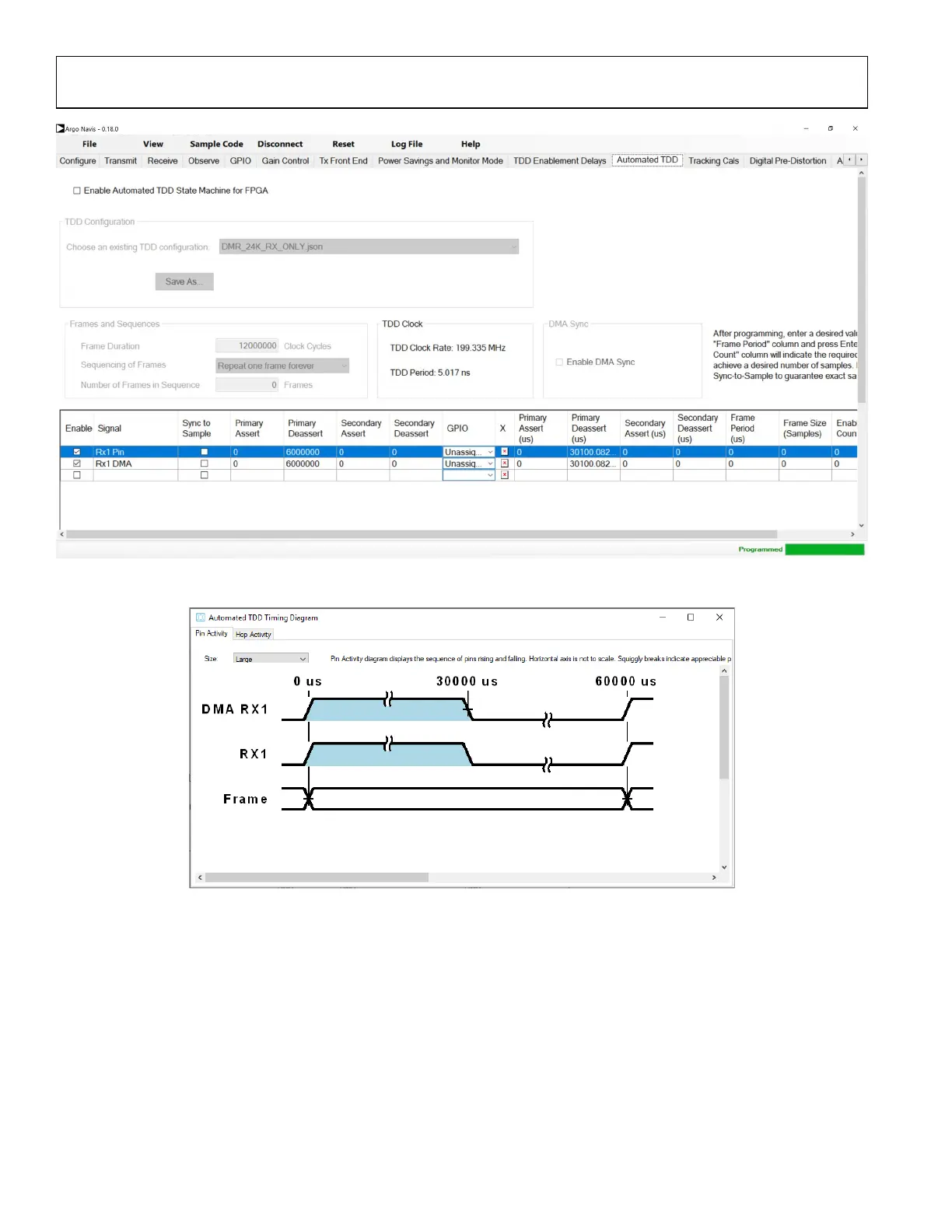

Figure 304. Automated TDD Configuration Tab
Figure 305. Automated TDD Timing Diagram
TDD Parameter Table
The table s auto populated by the TES based on the configuration file chosen
• Enable Column
• User can enable/disable receiver/transmitter channel.
• Signal Column
• This displays the signal name attributed to that row.
• Frame Timing Columns
• A predefined timing is generated by the TES based on the profile selected
• User can modify the timing by entering Primary Assert/Deassert, Secondary Assert/Deassert
