3 Connection Setup
Page 19
3. CONNECTION SETUP
3.1. SETTING UP A LOCAL / LAN CONNECTION FROM LAPTOP / PC

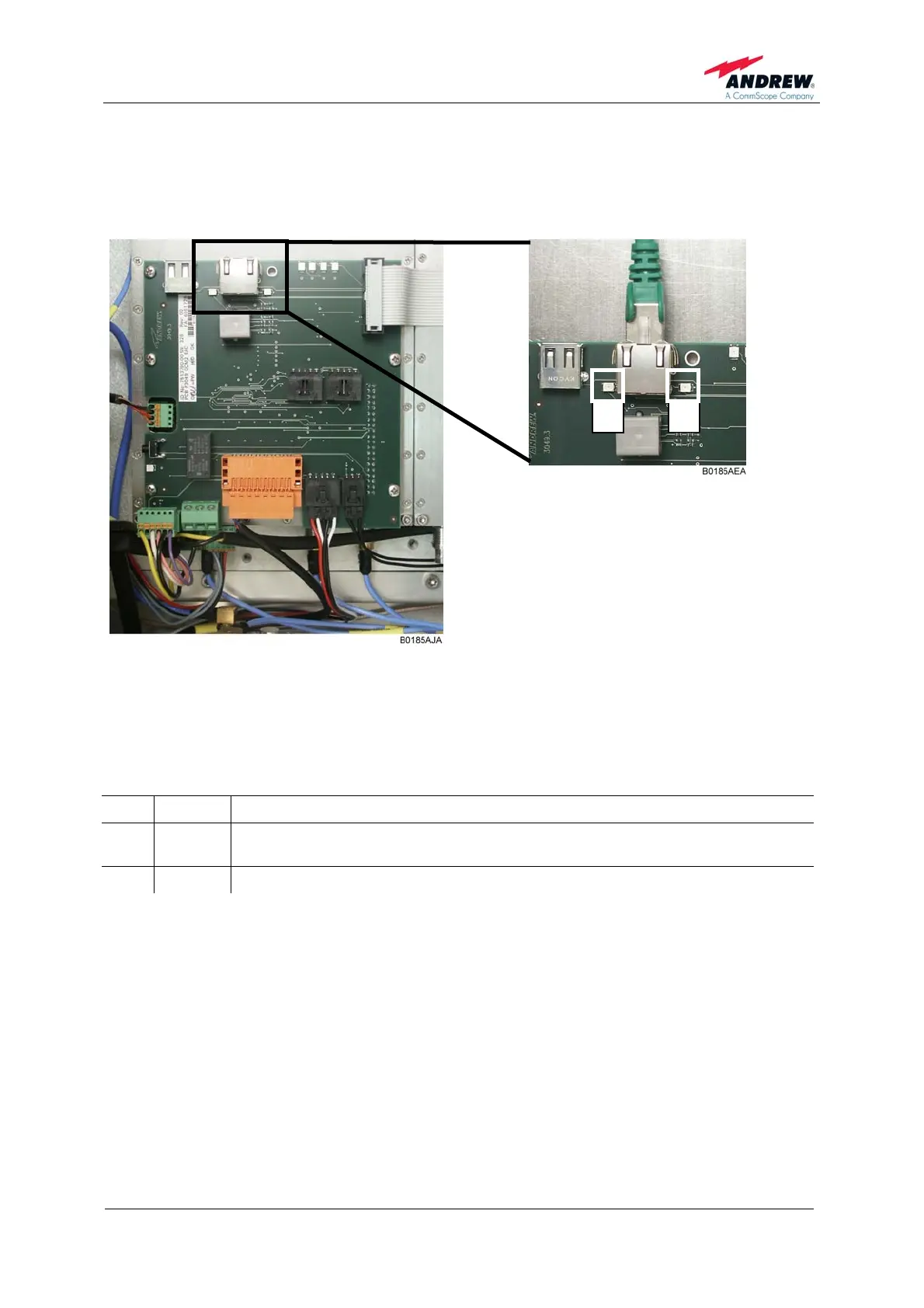

figure 3-1 Ethernet connector RJ45
2
1
Ethernet connector - LEDs
After the connection is made properly, the red and green LEDs near the Node C
network connector will flash.
No Colour Explanation
1 Yellow
LED illuminates when a packet is transmitted by the DCM2 DL
module.
2 Green LED illuminates when a packet is received by the DCM2 DL module.
A standard CAT5 Ethernet cable is supplied to set up a local connection. Open the
Node and plug the cable in the Ethernet connector RJ45 of the EAC-board.
To setup a LAN connection follow the description in the next chapter. A cable is not
provided.
