Andrew Node M User Manual

User’s Manual for Node M and Node C
Network Elements
Page 30 M0121A4A.doc
4.2.2. Grounding
Grounding must be carried out. Connect an earth-bonding cable to the grounding
connection provided at the outside of the remote unit. Do not use the grounding
connection to connect external devices.

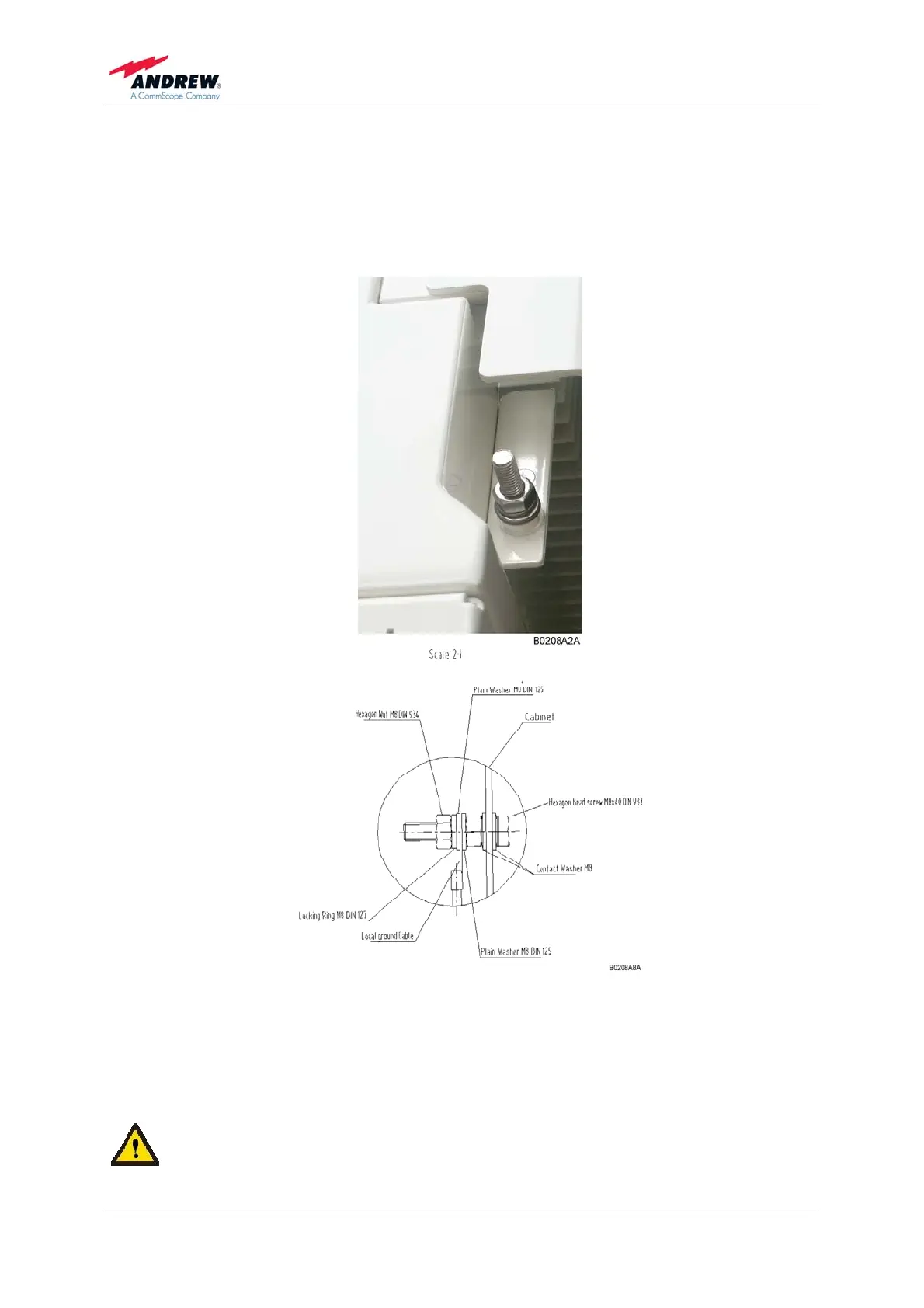

figure 4-5 Grounding bolt
After loosening the hex nut, connect the earth-bonding cable between the two
washers as illustrated in the figure above. Then, fasten all parts again with the hex
nut.
The PE cables must have a minimum cross section of 10mm
2
.
