4 Installation
Page 25
Drill four holes (four per unit) at the marked positions and insert dowels*.
* The dowels are not part of the delivery (and thus not illustrated in the figure) since the suitable
type depends on the on-site conditions (the material of wall). Therefore, use dowels that are
appropriate for the mounting surface.
Use a cap nut or locknut to screw the four M8 screws into the dowels.
Use a hex wrench, opening 17 (old standard) or 16 (new standard), to loosen the
M10 hexagon head screws (four per unit) by which the mounting brackets are
fastened to the cabinet sides.
Mount the mounting brackets to the screws, and fasten them using the M8
washers, locking rings, and hex nuts that are part of the wall mounting kit.
Hang the cabinets into the brackets and fasten them with the M10 hexagon head
screws *.

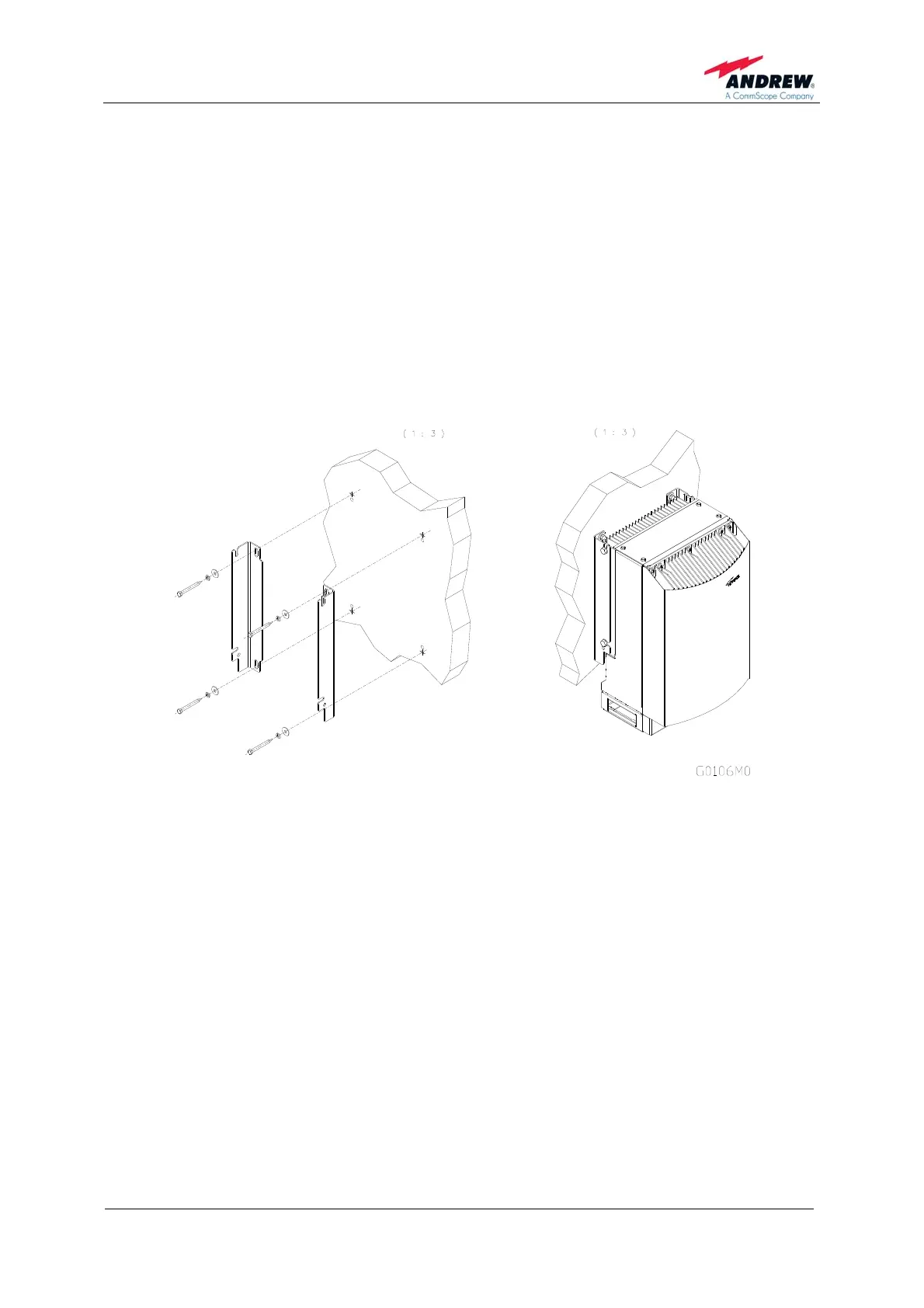

figure 4-2 Wall mounting procedure
* If other screws than the ones delivered by the supplier are used for fastening, these must have
a diameter of at least 8 mm and an appropriate length (depending on the dowels). Additionally,
make sure they are adequate for supporting a maximum weight of 50 kg per unit.
