User’s Manual for Node M and Node C
Network Elements
Page 56 M0121A4A.doc
Battery On/Off
A pushbutton on the EAC-board is implemented to disconnect the battery pack from
the controller. This forces a hard reset of the system.
Once disconnected, the power to the controller will not be restored until the +28V
supply is again operational.
Battery
disconnect
button

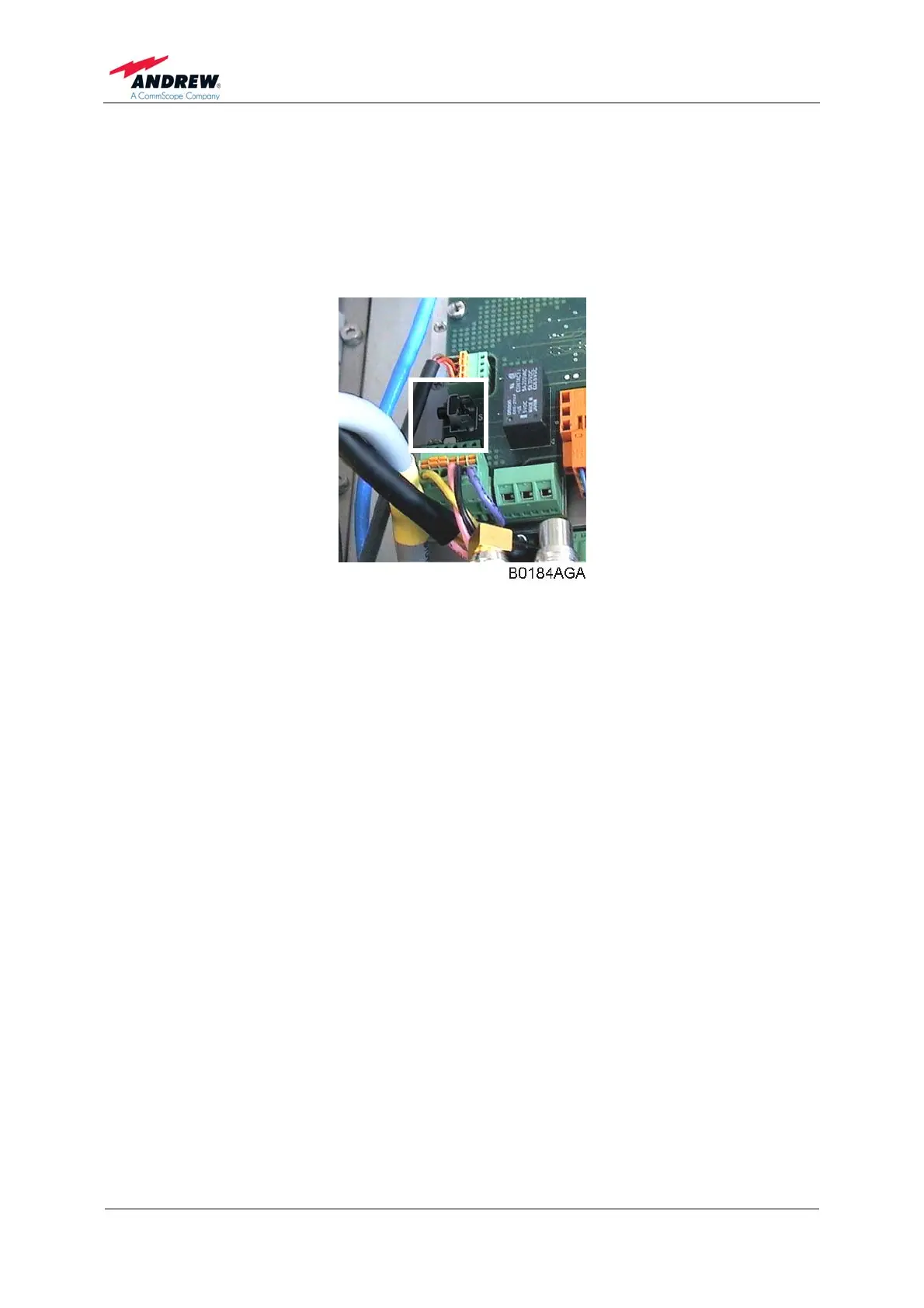

figure 5-27 Position of the battery disconnect button
on the EAC-board
