Andrew Node M - Power Supply Unit; Figure 5-6 Power Supply, Node M;C X37; Figure 5-7 Power Supply, Node M;C X43

User’s Manual for Node M and Node C
Network Elements
Page 44 M0121A4A.doc
5.2.8. Power Supply Unit
The power supply unit is mounted in the door of the Node.
This device transforms mains power into a predefined DC voltage. When performing
maintenance, ensure that all circuits are voltage-free and that the Node M/C is
disconnected from mains.

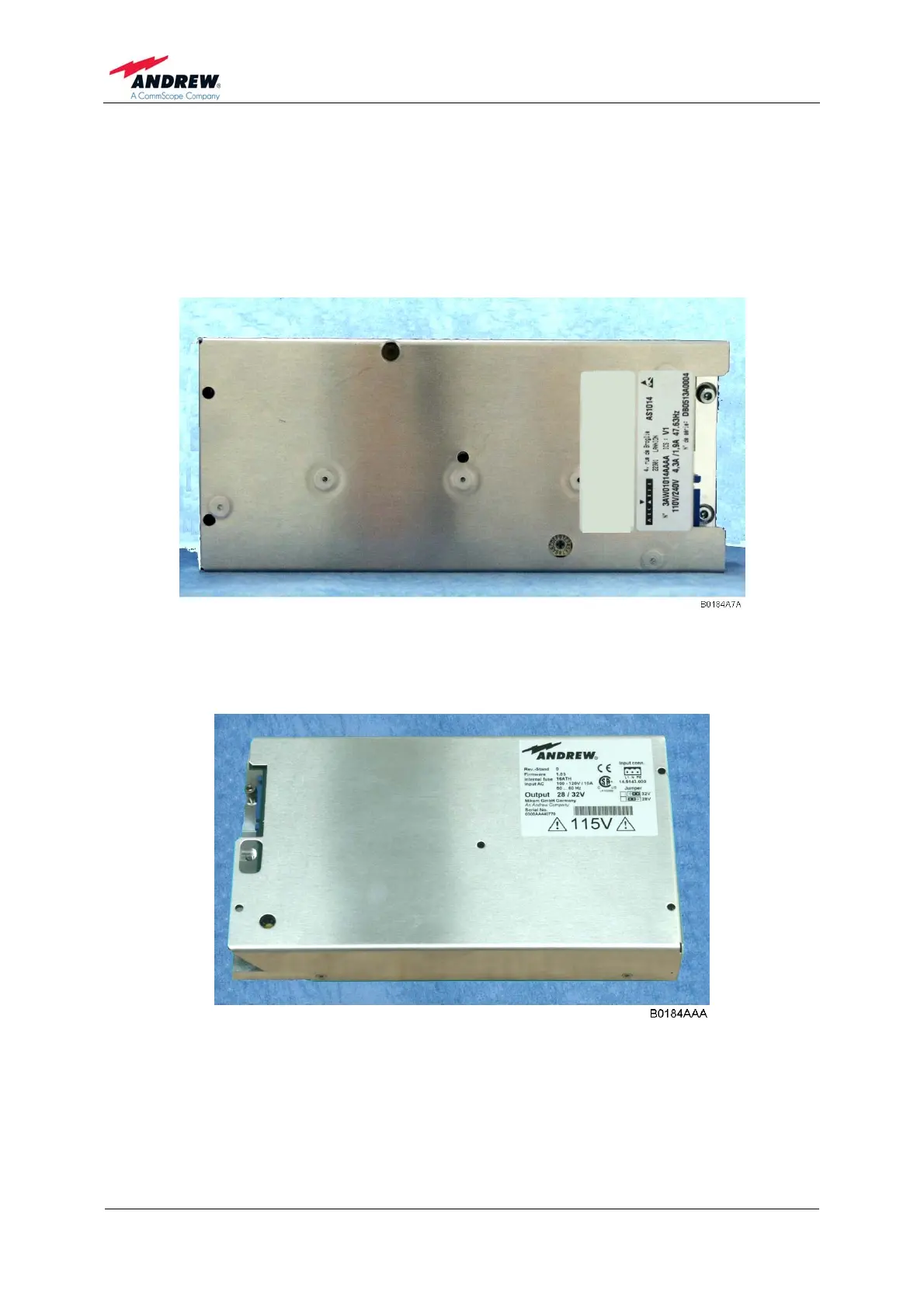

figure 5-6 Power supply, Node M/C x37
figure 5-7 Power supply, Node M/C x43
