C13148122_GB.fIDM
English
-
57
-
Use and installation manual

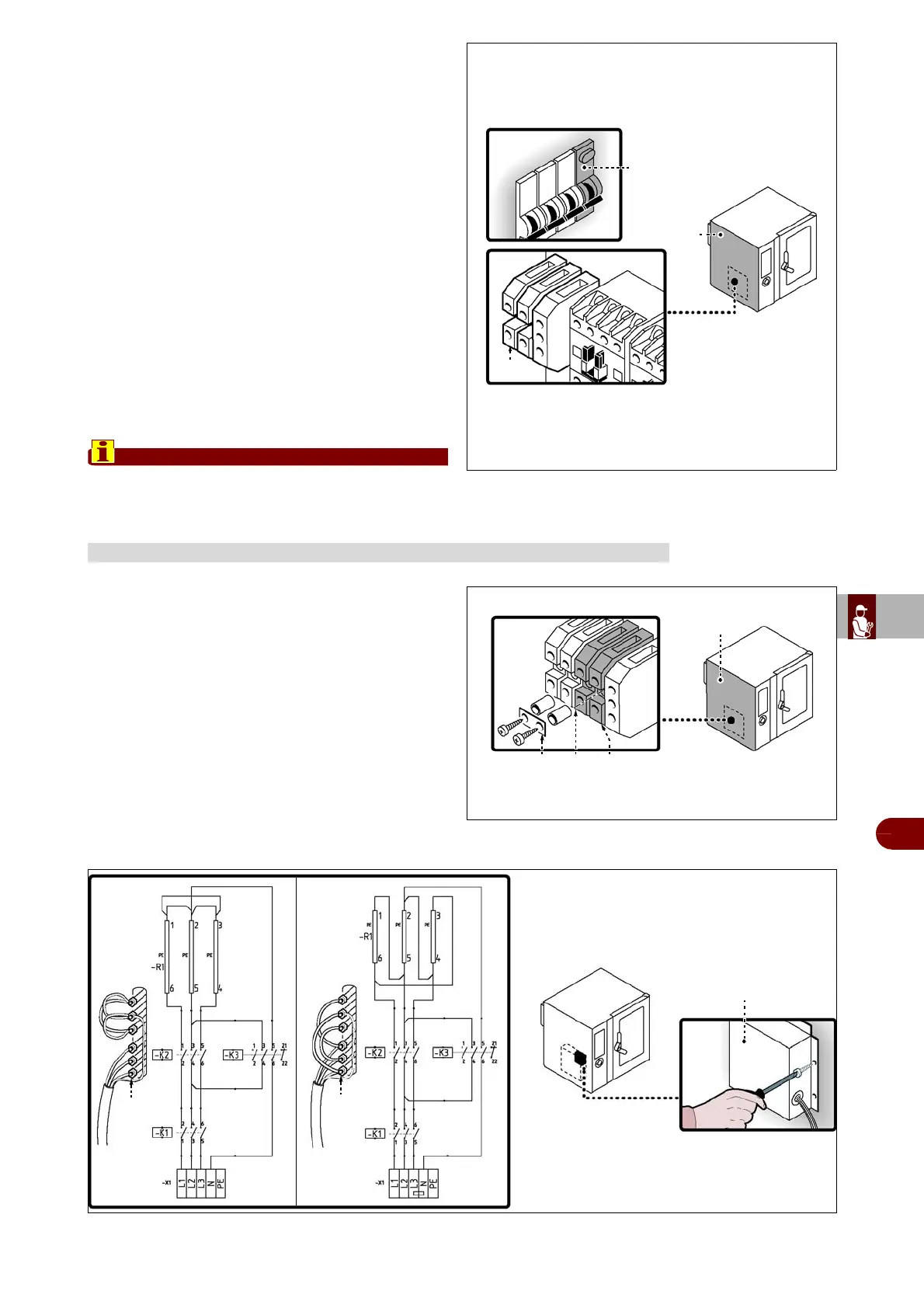

Connect the appliance to the mains electricity supply
as follows.
1–If not already present, install an automatic circuit-
breaker (B), close to the appliance, with the following
characteristics.
–Thermal breaker device (to adjust see table on
page 4).
–Differential breaker set at 30 mA
–Class B or C (IEC 898)
2–Undo the screws and remove the side panel (A).
3–Connect the automatic circuit-breaker (B) to the
appliance's terminal board (C) and to the electrical
mains supply, in accordance with the electrical sys-
tem diagram provided at the back of the manual and
using a cable with the following characteristics.
–Weight:
than H05RN-F type (designation 245 IEC
57)
–Temperature of use:
70°C.
When connecting, take care to connect the neu-
tral and earth lines.
4–Replace the panel and retighten the screws when the operation is complete.
To carry out this operation, proceed as follows.
1–Disconnect the mains electricity supply.
2–Undo the screws to remove the side panel (A).
3–Fit the jumper (B) to make the electrical connection
of the terminals (C-D) (see attached wiring diagrams).
CONVERSION OF ELECTRICITY SUPPLY (FX 82)
4–Remove the carter (G) and change the connec-
tions to the heating element terminals (H) as shown
in figure.
IDM-39617701700.tif
A
B C D
IDM-39617701900.tif
G
H
H
400 V
230 V
