Anilam 3000M - Differential (AC Systems) and Single-Ended (DC Systems) DSP; Board

CNC Motion Setup/Testing Utility
P/N 70000635C
Differential (AC Systems) and Single-Ended (DC Systems) DSP
2
Board
The digital signal processing (DSP)
2
board uses digital input and provides
analog output. For the AC systems, the DSP
2
board, P/N 33001102, is
differential (see Figure 4). The earliest AC systems were single-ended
DSP
2
boards. For DC systems, the DSP
2
board, P/N 33001102, is single-
ended (see Figure 5).
NOTE: In the illustrations, see the difference in the jumper pin direction
for pins: J10–J17.

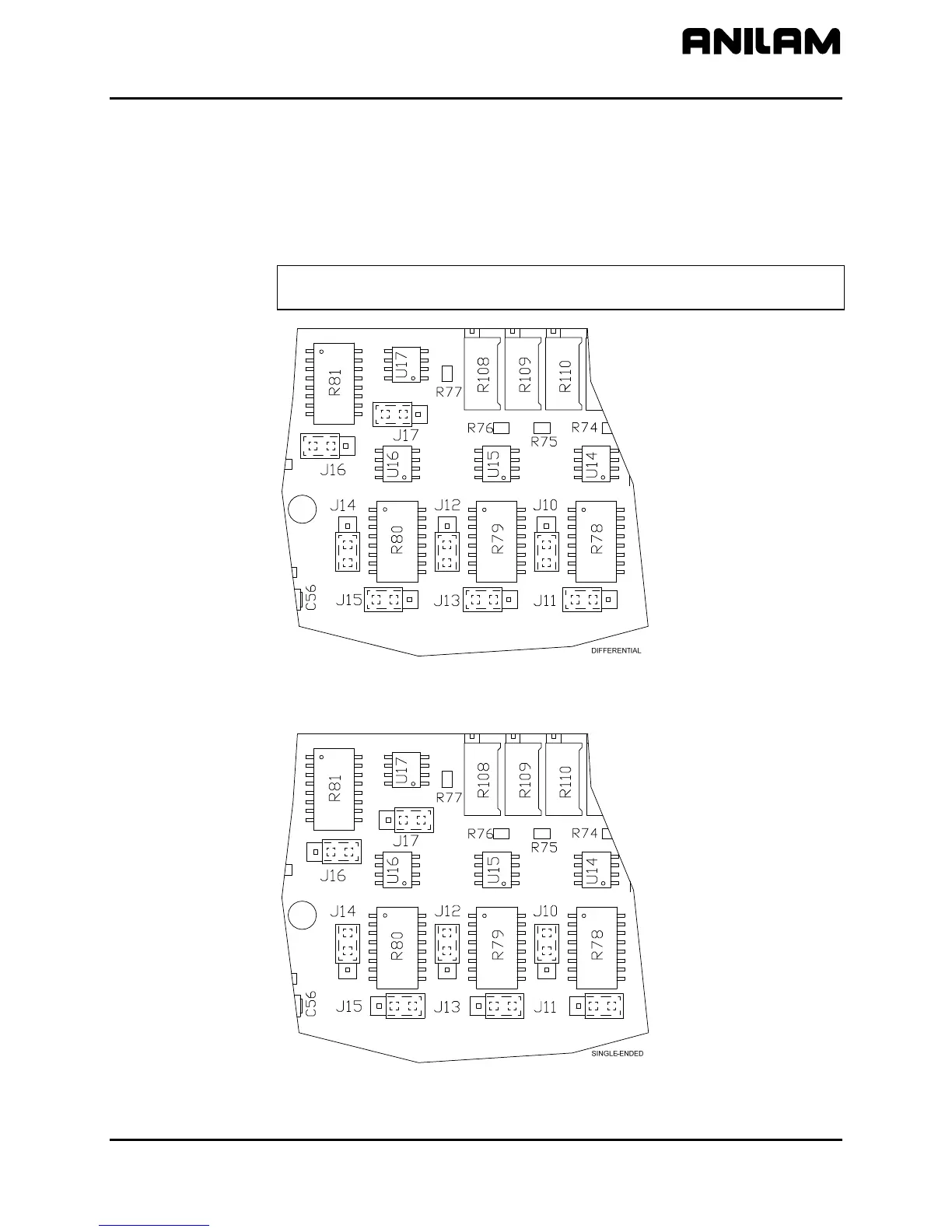

Figure 4, Differential DSP
2
Board, P/N 33001102, AC Systems
Figure 5, Single-Ended DSP
2
Board, P/N 33001102, DC Systems and earliest AC Systems
