CNC Motion Setup/Testing Utility
P/N 70000635C
AC Systems
There are a number of differences for AC system and DC systems. The
features specific to the AC systems are described in this section.
Instructions are provided for amplifier balancing and signal gain setting
when using the ANILAM AC Brushless Digital Servo Amplifiers and
motors. The servo amplifiers provided by ANILAM are completely digital;
parameter settings are done by communicating to the amplifier using the
Servo Amplifier Communications Cable, P/N 33001389, between the
amplifier's J1 connector and the CNC's RS-232 port. The digital amplifier
eliminates the need for adjusting trim pots and provides overall better
performance. Make sure cable is connected when doing any amplifier
adjustments; disconnect cable when done. If using amplifiers not
provided by ANILAM, follow the manufacturer's guidelines for balancing,
signal gain setting, and overall adjustments.

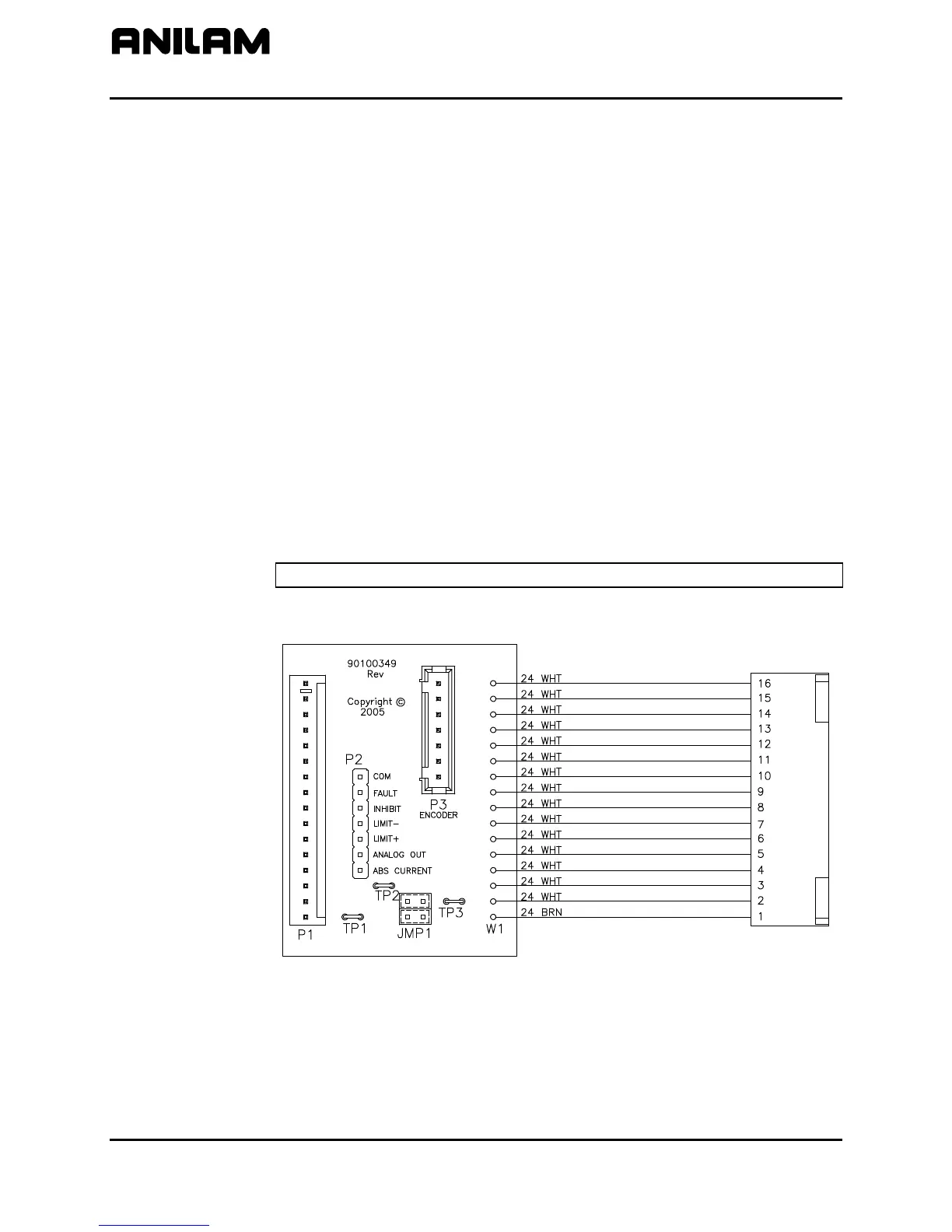

Servo Amplifier Test Board
Each CNC that uses ANILAM AC motors and amplifiers, P/N 33001279,
includes a Servo Amplifier Test Board, P/N 33001399. During machine
operation, the board provides convenient access to critical signals for
alignment and troubleshooting. Refer to Figure 12.
NOTE: The test board only works with amplifiers supplied by ANILAM.
ACTESTBOARD
Figure 12, ANILAM Servo Amplifier Test Board, P/N 33001399, AC Systems
All rights reserved. Subject to change without notice.
November 2009
20
