CNC Motion Setup/Testing Utility
P/N 70000635C
DC Systems
There are a number of differences for DC system and AC systems. The
features specific to the DC systems are described in this section.
Servo Drive Test Board
Each CNC that uses ANILAM servo amplifiers (P/Ns 33000039 or
33000123) includes a Servo Drive Test Board, P/N 33000102. During
machine operation, the board provides convenient access to critical
signals for alignment and troubleshooting. Refer to Figure 6.
description
NOTE: The test board only works with amplifiers supplied by ANILAM.

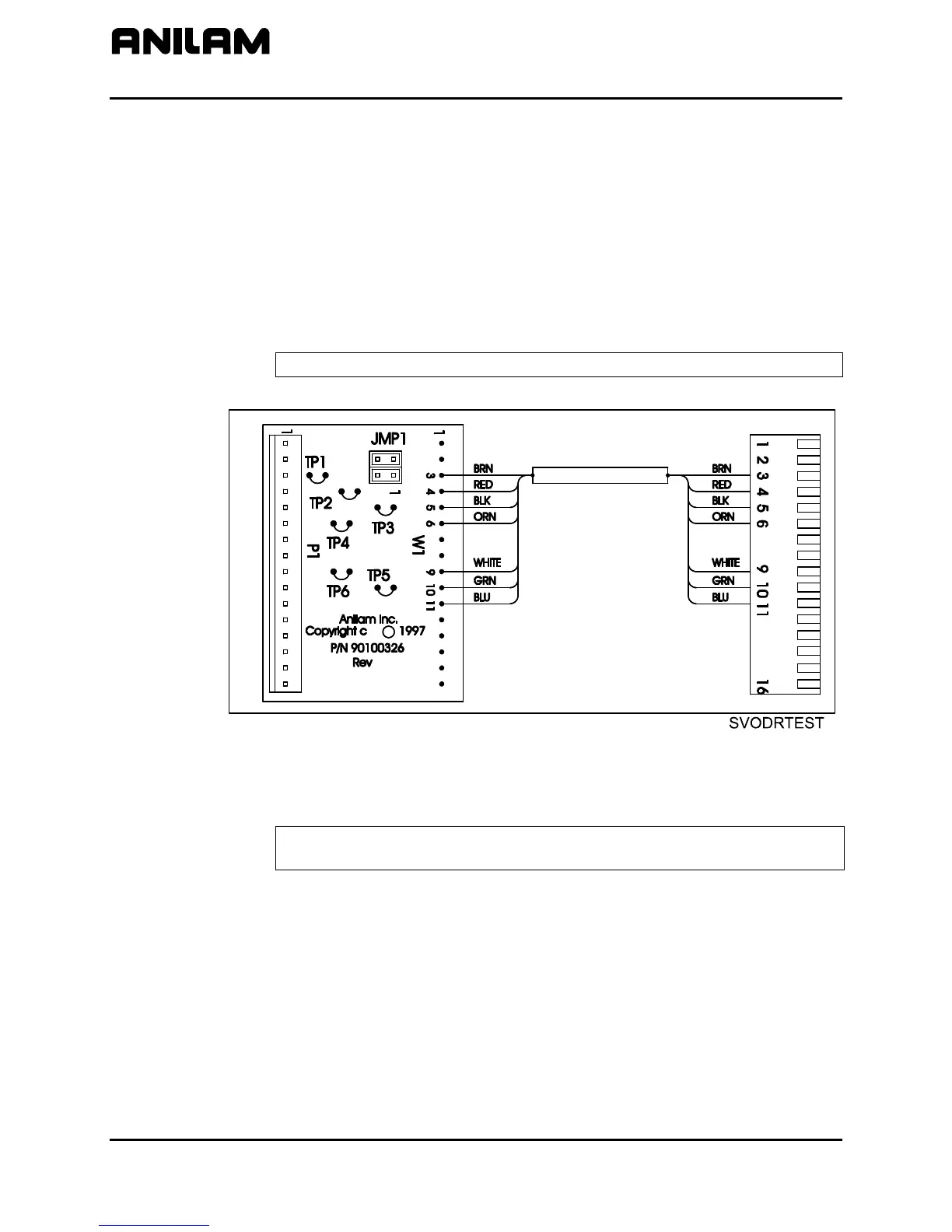

Figure 6, ANILAM Servo Drive Test Board, P/N 33000102, DC Systems
Test Board Installation
IMPORTANT: Press E-STOP to de-energize servos before installing the
test board.
1. Remove the cable attached to J1 of the Servo Drive you wish to
monitor and connect it to P1 of the test board. installation
2. Attach W1 of the test board to J1 of the servo.
3. Re-energize the servos.
All rights reserved. Subject to change without notice.
November 2009
