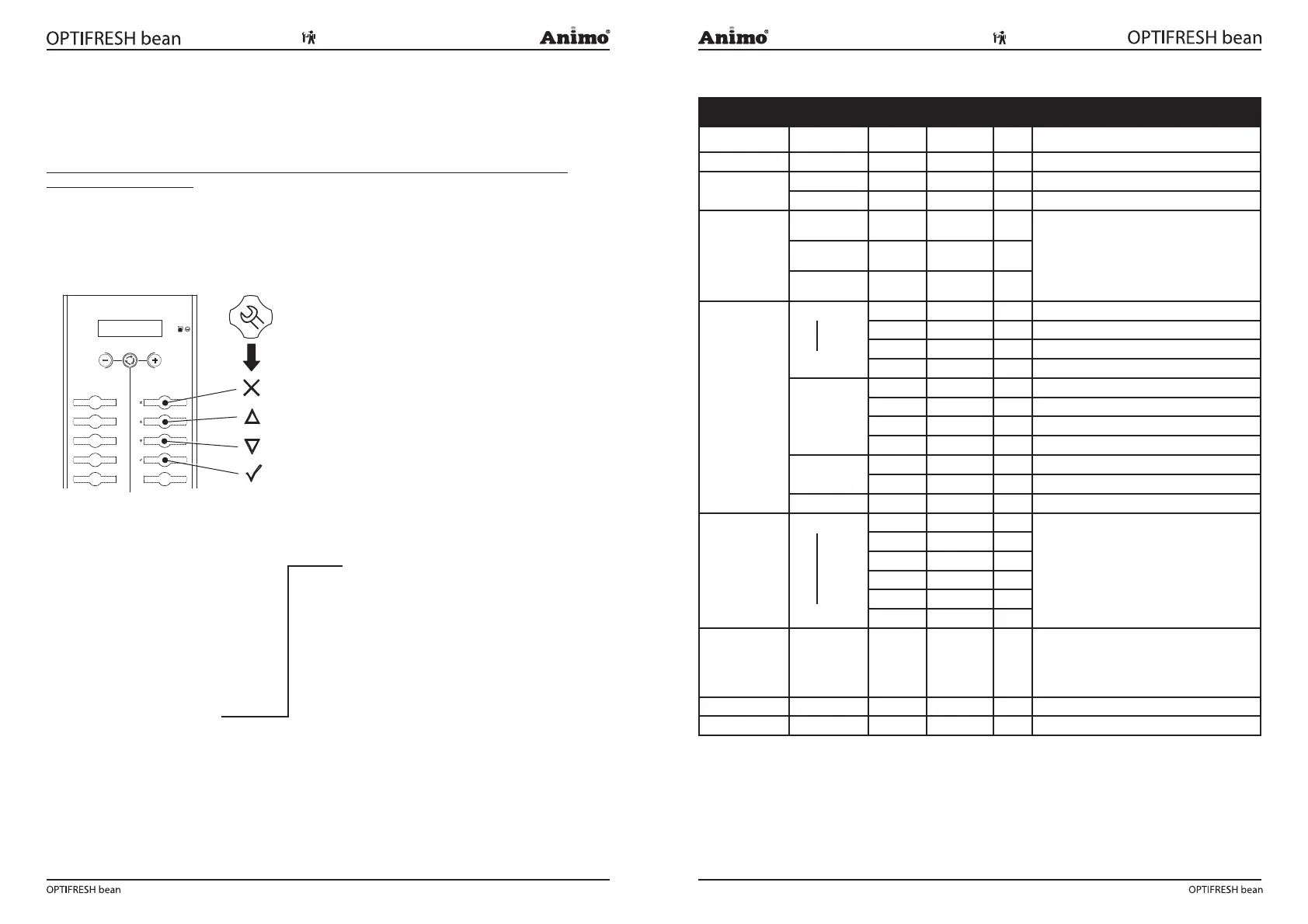

2. MENU STRUCTURE
2.1 The operator/service menu
The majority of settings, including product settings, are protected by a PIN code. This PIN code
ensures that users do not gain access to the service menu.
It is recommended not to leave this document with the user after installation and to change the
standard factory PIN code.
This section describes how the various settings can be changed by trained, authorized service staff.
You can read about how to gain access to the service menu below. On access to the service menu
the control panel has the following functions:
Summary:
Operator menu Service menu
1.0 Free dispensing 2.1 Quick recipe
1.1 Clock 2.2 Button settings
1.2 Timer settings 2.3 Recipe settings
1.3 Recipe counters 2.4 Settings
1.4 Quick recipe 2.5 Reset counters
1.5 Permanent  lter 2.6 Descale /  lter
1.6 Software 2.7 Hardware test
1.7 PIN-code 2.8 Read log
2.9 Clear log
2.10 Load defaults
2.11 SD menu
2.12 Change PIN code
2.13 Additional settings
Escape (return without making any changes)
Previous (menu item / increase value)
Next (menu item / decrease value)
Enter (accept menu option)
2.2 The operator menu
Operator menu
Main item Sub item Item Range Set Description
1.0 Free dispensing Yes/no Yes Set the device to free or paid dispensing here.
1.1 Clock Time HH:MM Set the clock to the correct local time here.
Date DD-MM-JJJJ Set the clock to the correct local time here.
1.2 Timer Mon-Fri On 00:00
Off 00:00
Set the time when the device should operate here. If
the timer switches off the device it will automatically
revert to standby mode.
Sat On 00:00
Off 00:00
Sun On 00:00
Off 00:00
1.3 Recipe counters Recipe 1
Recipe 12
Total Off 00:00 Total counter for recipe 1 (free-paid-jugs)
Free Cups Number of free dispensed drinks (recipe 1)
Paid Cups Number of paid dispensed drinks (recipe 1)
Jug Cups Number of dispensed jugs (recipe 1)
Recipes total Total Cups Total counter for all dispensed recipes
Free Cups Total counter for all free dispensed recipes
Paid Cups Total counter for all paid dispensed recipes
Jug Cups Total counter for all dispensed jugs
Rinse counters Brewer Number of brewer rinses
Mixer(s) Number of mixer rinses
Reset counters Total rest of all counters
1.4 Quick recipe Recipe name 1
Recipe name 12
Cup volume
50-200 ml 120ml Use this for setting the volume and strength of cof-
fee, milk, sugar and cocoa easily per recipe (drink
button).
Only the ingredients applicable to the recipe are
shown.
Coffee (1) -20 / +20% 0%
none (2) -20 / +20% 0%
Chocolate (3) -20 / +20% 0%
Topping (4) -20 / +20% 0%
Coffee inst. (5) -20 / +20% 0%
1.5 Permanent fi lter Reset teller After the permanent  lter of the vending unit
(brewer) has reached the maximum number of
brews the  lter must be replaced. After replacing
the permanent  lter, reset the ‘replace brewer  lter’
indicator.
1.6 Software Software version is readable here.
1.7 PIN-code 2-2-2-2-2 PIN code = press the number 2 key  ve times.
Fig. 16
