PREFACE
Purpose of this document
This document provides directions for use and serves as a service document for trained, authorised
service staff to safety install, programme and maintain this device.
- Trained, authorised service staff are considered to be those who install, programme and maintain
the device, and are able to carry out repairs.
The majority of settings, including product settings, are protected by a PIN code. This PIN code
ensures that users do not gain access to the service menu. It is recommended not to leave this
document with the user after installation and to change the standard factory PIN code.
All sections and paragraphs are numbered. The various gures referred to in the text can be found in
the gures section at the beginning of the manual or with the corresponding subjects.
Pictograms and symbols.
CAUTION
General indication for: IMPORTANT, CAUTION or REMARK.
WARNING
Warning for possible damage to the device, surroundings or environment.
DANGER
Danger of possible severe damage to the device or physical injury.
DANGER
Danger of electricity and voltage.
DANGER
Danger of electrostatic discharge (ESD) in electronics.

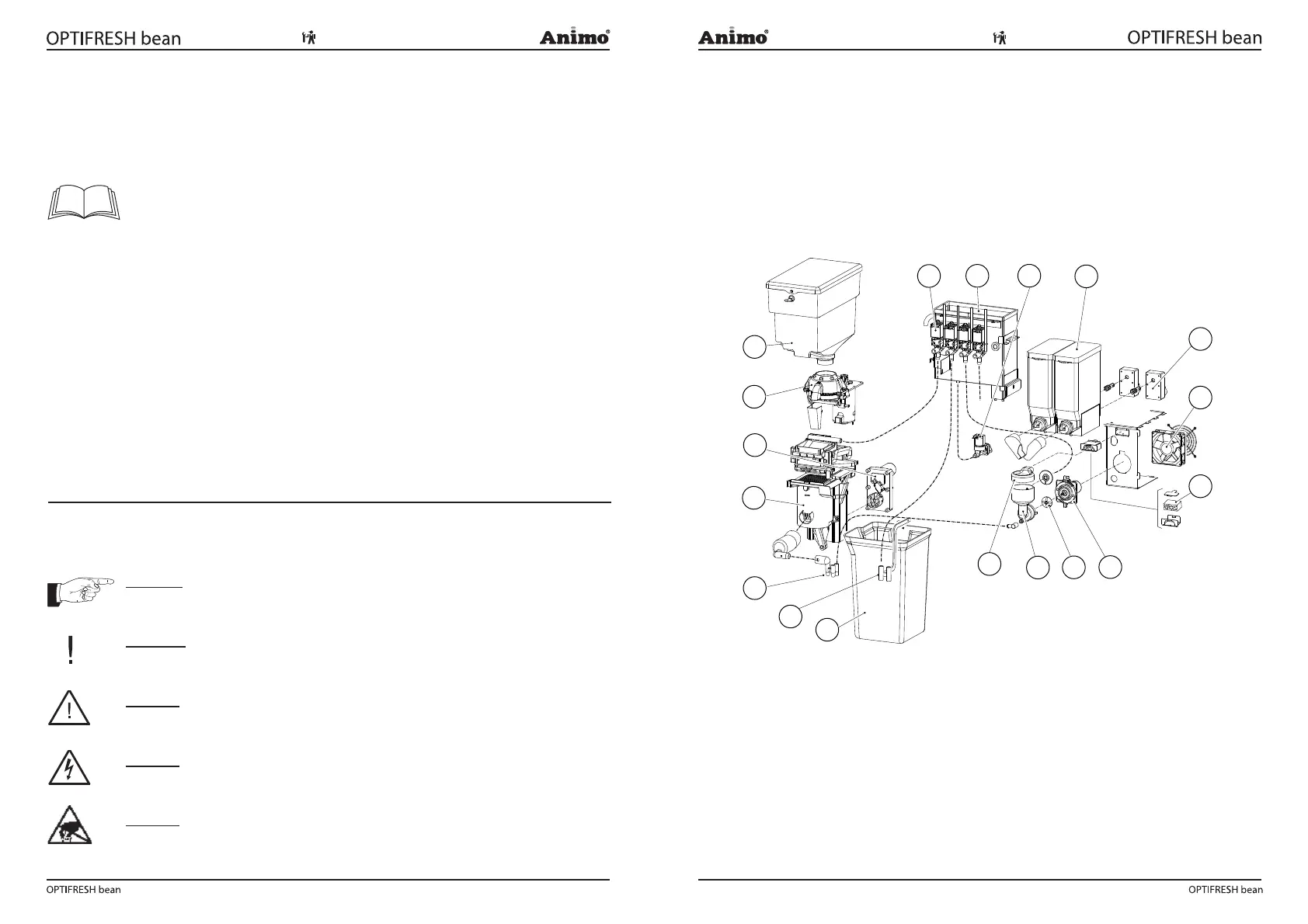

1. BASIC FUNCTIONING
1. Waste bin 6. Grinder
2. Hot water outlet 7. Bean canister
3. Coffee outlet / Drink outlet (instant) 8. Dispensing valves
4. Brewer 9. Water reservoir
5. Brewer motor 10. Inlet valve
Instant (OptiFresh 2 model and upwards)
11. Instant ingredient canisters 15. Mixer motor
12. Canister motor 16. Mixer impellor
13. Ventilator 17. Mixer housing
14. Evaporation extractor lter cassette 18. Evaporation extractor ring
Coffee beans Instant
11
1
2
3
4
5
6
7
8
12
13
14
15
17
18
16
9
10
Fig. 1
