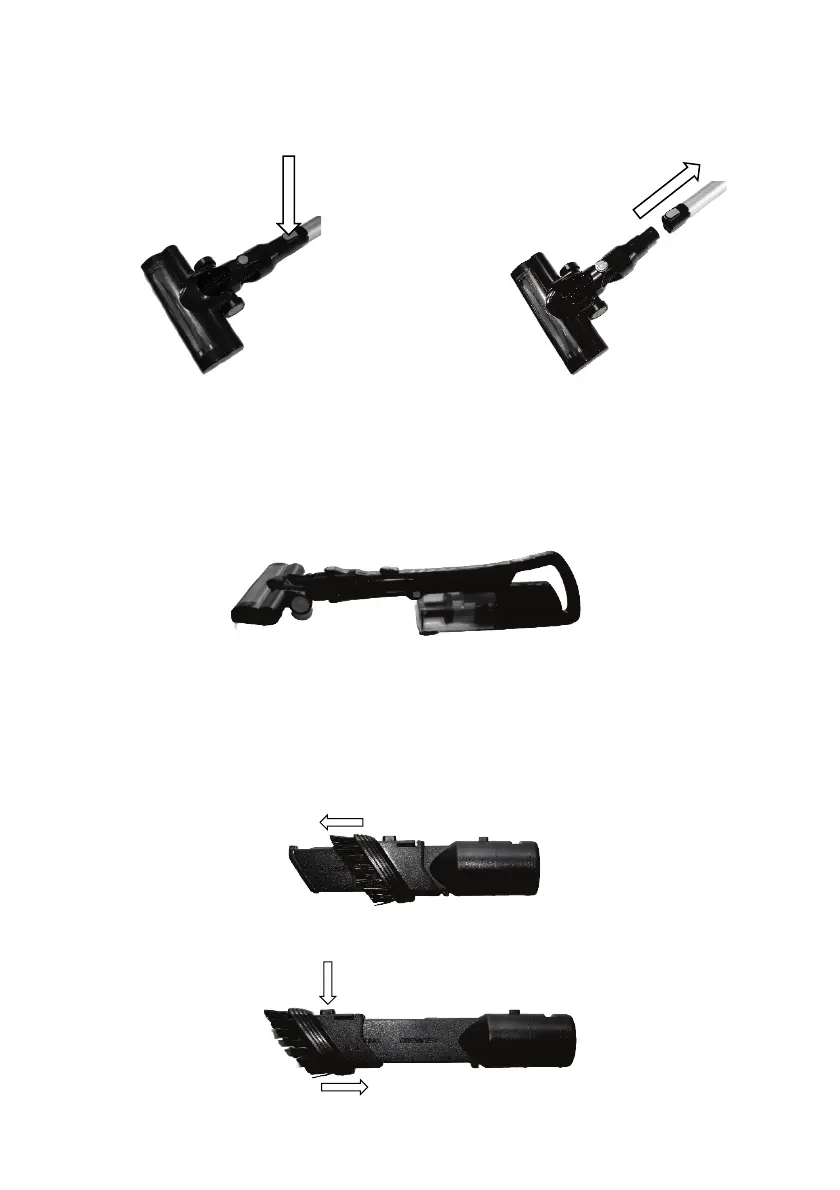

5.4 Removing the Motorised Floor Head
To remove the Motorised Floor Head, grasp the Motorised Floor Head, press
the locking button inward to release and then pull the Tube straight out.
5.5 Using Without the Extension Tube.
The vacuum cleaner can be used without the extension tube by attaching the
Accessories and Motorised Floor Head directly to the vacuum cleaner.
To attach and remove, follow the same steps as if using the Extension tube.
5.6 Tools / Tool Holder
5.6.1 Crevice / Brush Tool
The crevice / Brush tool is for cleaning furniture and into corners etc.
To use the Brush tool, slide the brush down until it locks in place.
To use the Crevice tool, press the release button to unlatch and slide the
brush up until it locks in place.
