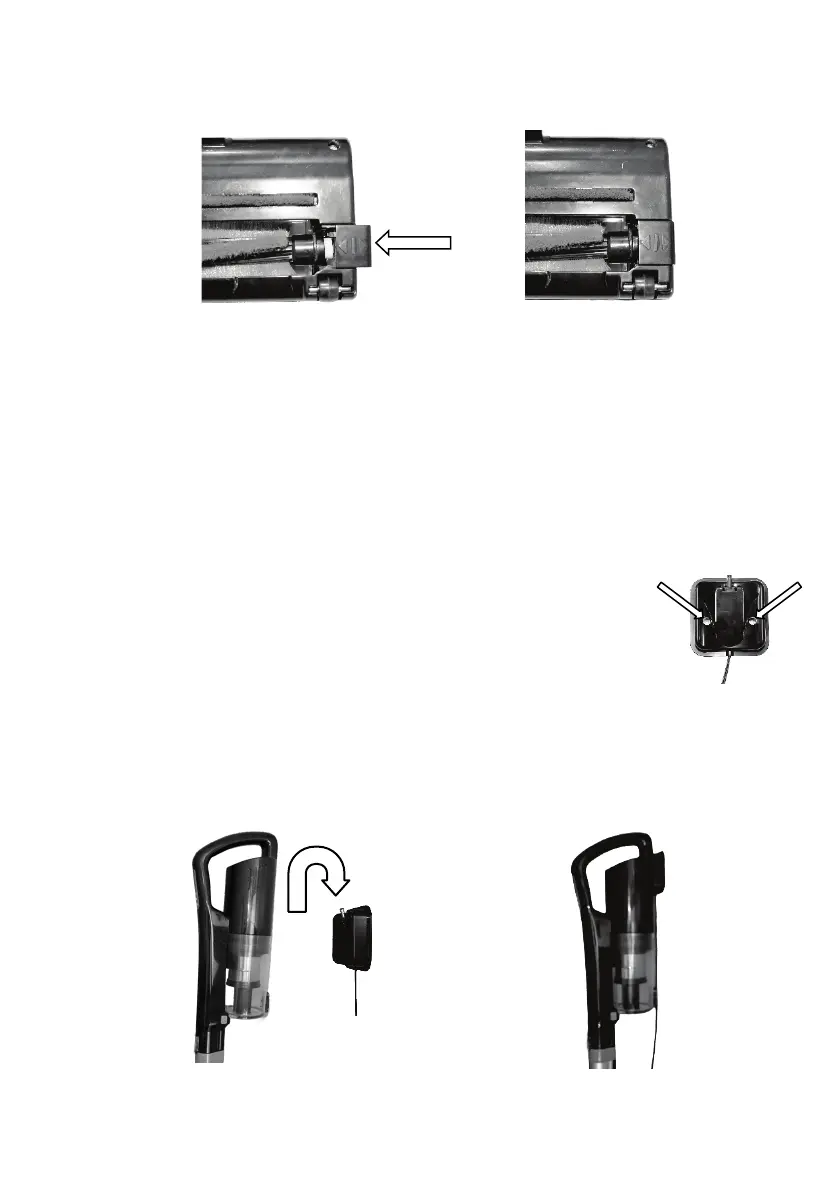

Once the rotary brush is seated properly, slide the locking tab to the left to
lock the brush in place.
11 Storage / Charging Wall Bracket
There is a Storage / Charging Hanging Bracket supplied with screws and wall
plugs for attaching to the wall.
To install the Storage / Charging Hanging Bracket, position the Bracket on the
wall at a suitable height where the vacuum cleaner will not touch the floor, and
near a mains power point where the supplied Battery Charger can reach
without using an extension cord or power board.
Mark the screw holes through the Storage Hanging Bracket onto the wall.
Using a suitable drill (wood drill bit for a timber wall, or
masonry drill bit for brick / concrete walls, drill holes Ø6mm
and 25 - 35mm deep.
Insert the plastic wall plugs into each hole and gently hammer in until they are
flush with the wall, place the Storage Hanging Bracket over the holes then
insert the screws and tighten up. Do Not Overtighten.
Hang the vacuum cleaner as shown:
