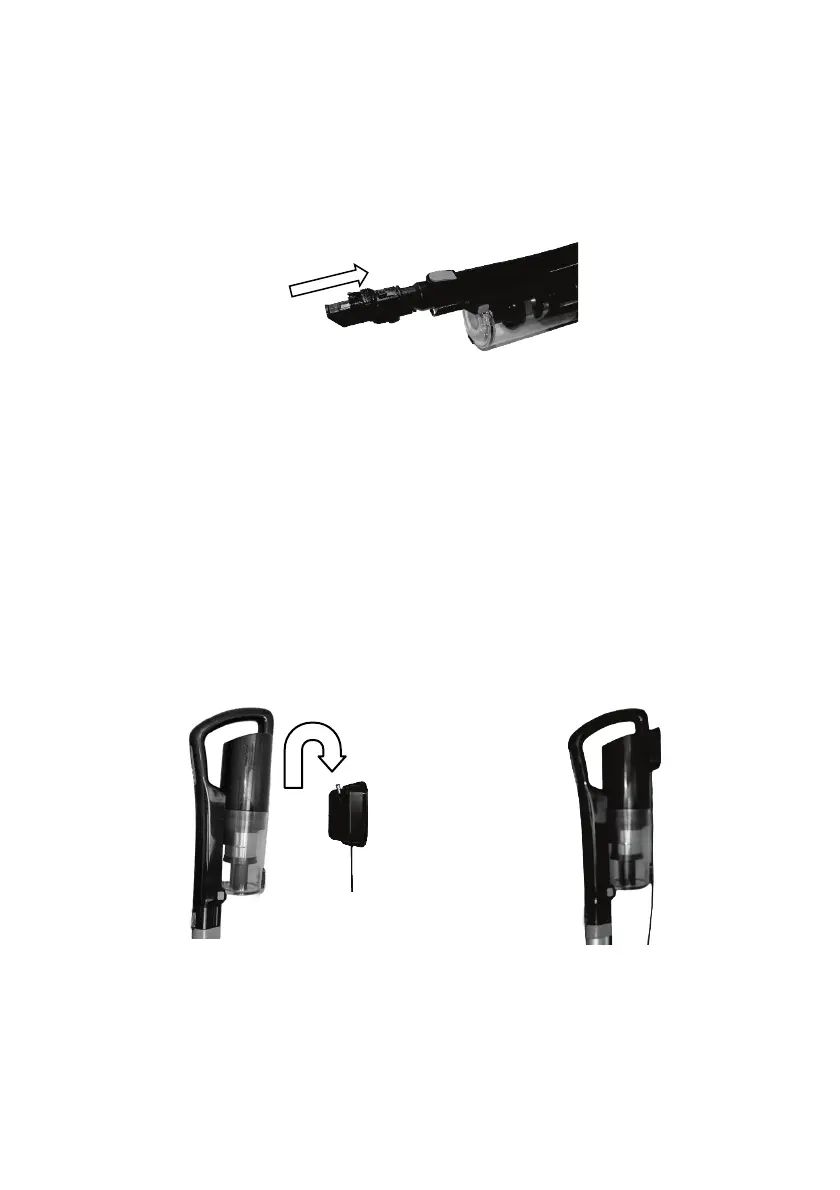

To fit the tool, line up with the end of the hand vac and push in.
Note: The tool can also be used on the end of the Extension Tube.
To remove, press the locking button to release and then pull the tool straight
out.
6 Charging
IMPORTANT: Do not use this appliance when charging.
The battery can only be charged whilst the vacuum cleaner is stowed on the
wall hanging bracket.
Note: Refer to the section “Storage / Charging Wall Bracket” for instructions
on mounting the Storage / Charging Bracket to the wall.
For charging, place the vacuum cleaner on the wall hanging hook ensuring it
is seated properly as shown.
Plug the Battery Charger into the mains power point and switch it on.
