5 Assembly

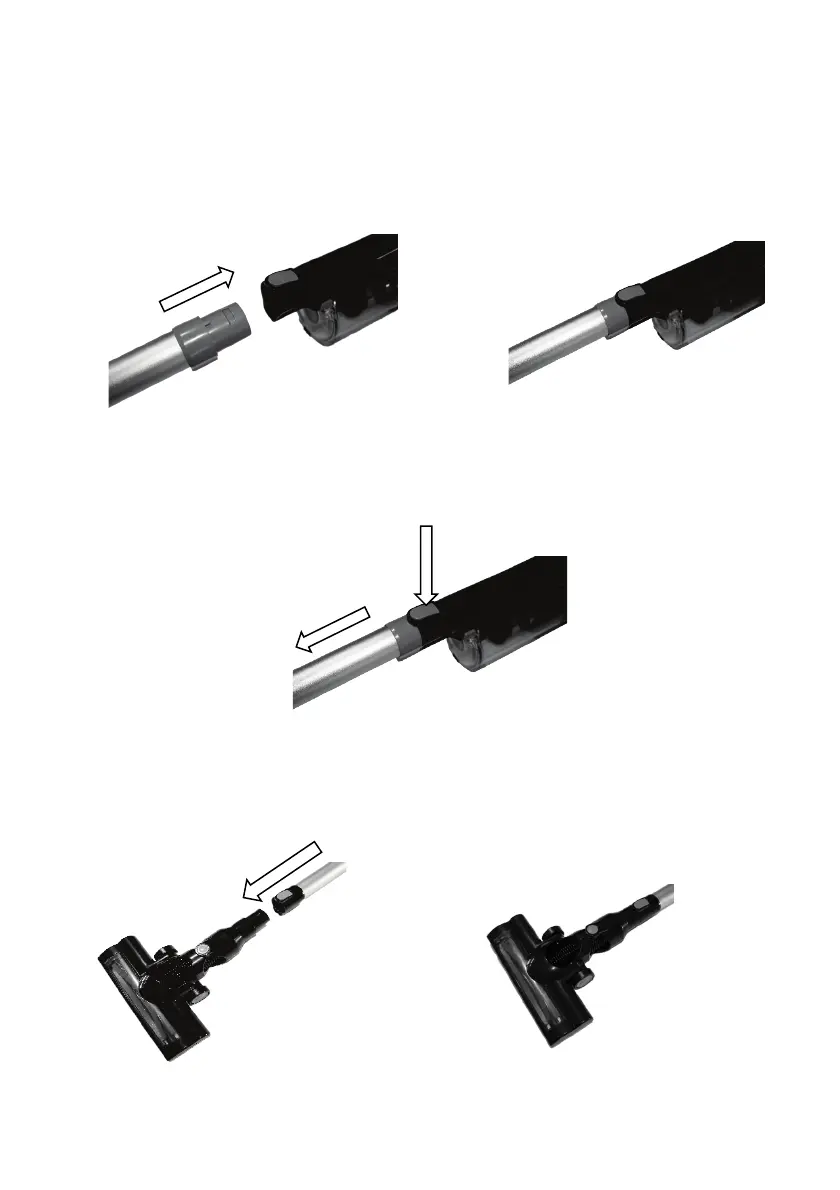

5.1 Attaching the Extension Tube
Insert the top end of the Extension Tube into the mating hole in the end of the
Vacuum cleaner body ensuring the locating guides are aligned, then push
inward until it locks into place.
5.2 Removing the Extension Tube
To remove the Extension Tube, press the locking button inward to release it
and then pull the tube straight out.
5.3 Attaching the Motorised Floor Head
To attach the motorised floor head to the other end of the extension tube, insert
the end of the Extension Tube into the end of the
Floor Head, ensuring the
locking tabs are aligned, then push inward until it locks into place.
