ML248xA / ML249xA Product Overview

2-2 13000-00162

September 2005

About the ML248xA / ML249xA Peak Power Meter

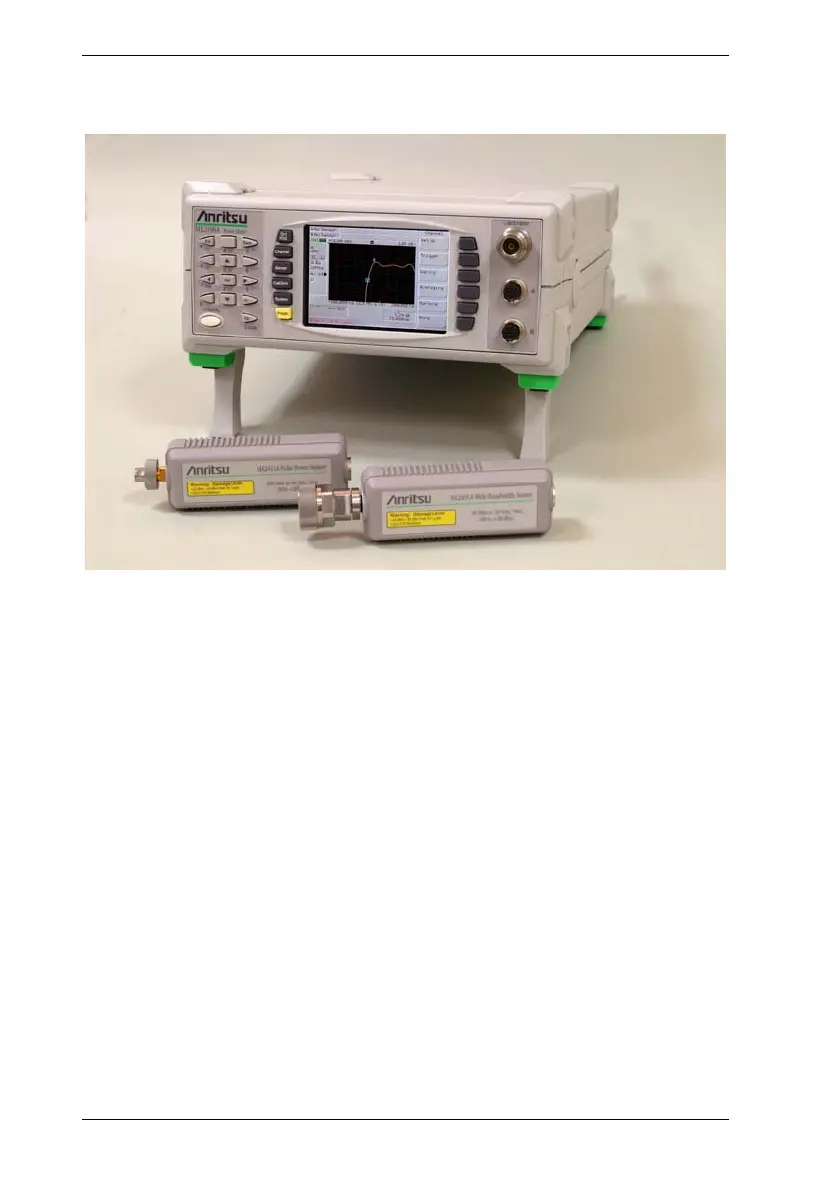

The ML248xA / ML249xA is a wideband peak power meter for the 3G and radar pulse

measurement market. It is the ideal product for performing accurate measurements on

pulsed and modulated systems.

Model Types

Four models of the peak power meter are available:

ML2487A: Single input peak power meter (20 MHz bandwidth)

ML2488A: Dual input peak power meter (20 MHz bandwidth)

ML2495A: Single input peak power meter (65 MHz bandwidth)

ML2496A: Dual input peak power meter (65 MHz bandwidth)

default chapter3
