Common Procedures ML248xA / ML249xA
13000-00162 5-19
September 2005
Setting the Units of Measurement
1. Press the Channel hard key to display the Channel group of commands.
2. Press the Set Up soft key to display the [Channel Set Up] dialog for the channel that
is currently active.
3. Press the down arrow on the numeric keypad to select the “Units” item.
4. Use the soft keys to select the required unit.
Note: The default setting for the ML248xA / ML249xA is to display units in dBm, but this
can be changed to any of the other options available.

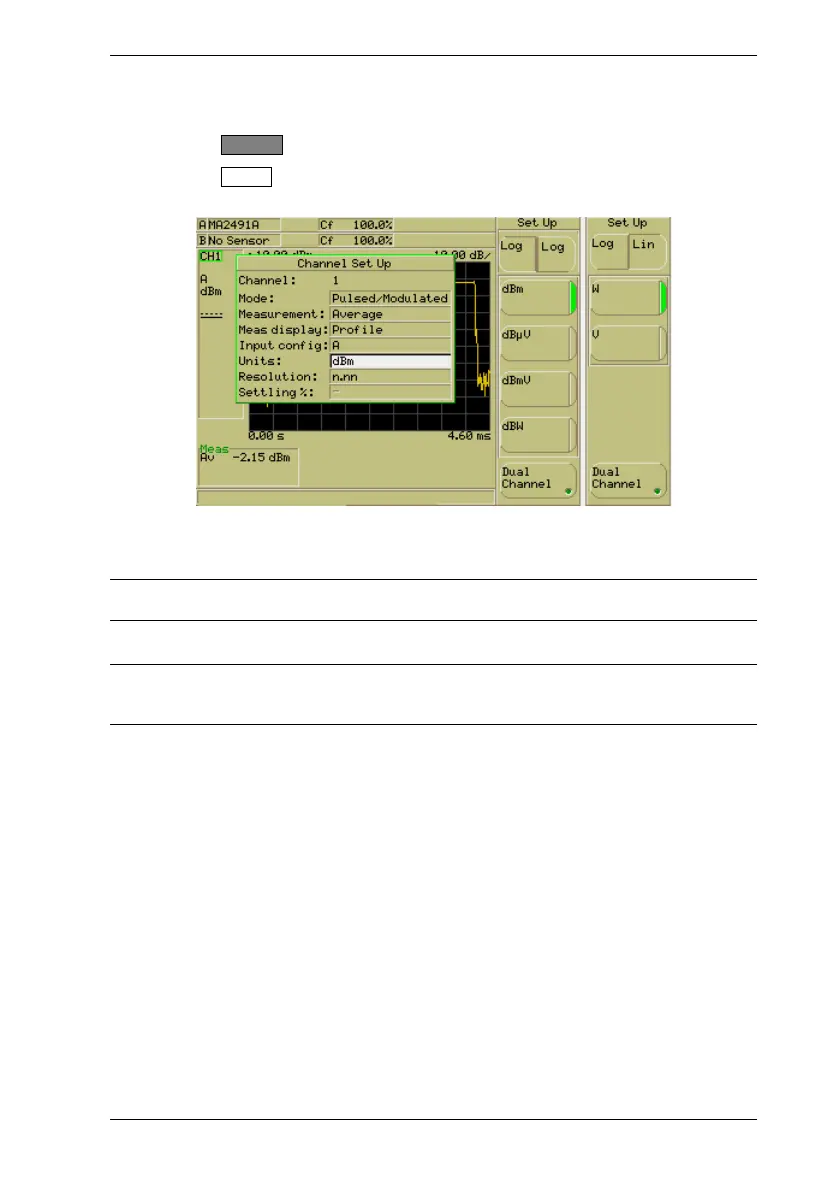

Note: The figure above shows the units available when the “Input config” item is set to “A”,
“B”, “A-B”, or “B-A”. When “Input config” is set to “A/B” or “B/A”, the units available for
selection are “dB” or “%”.
